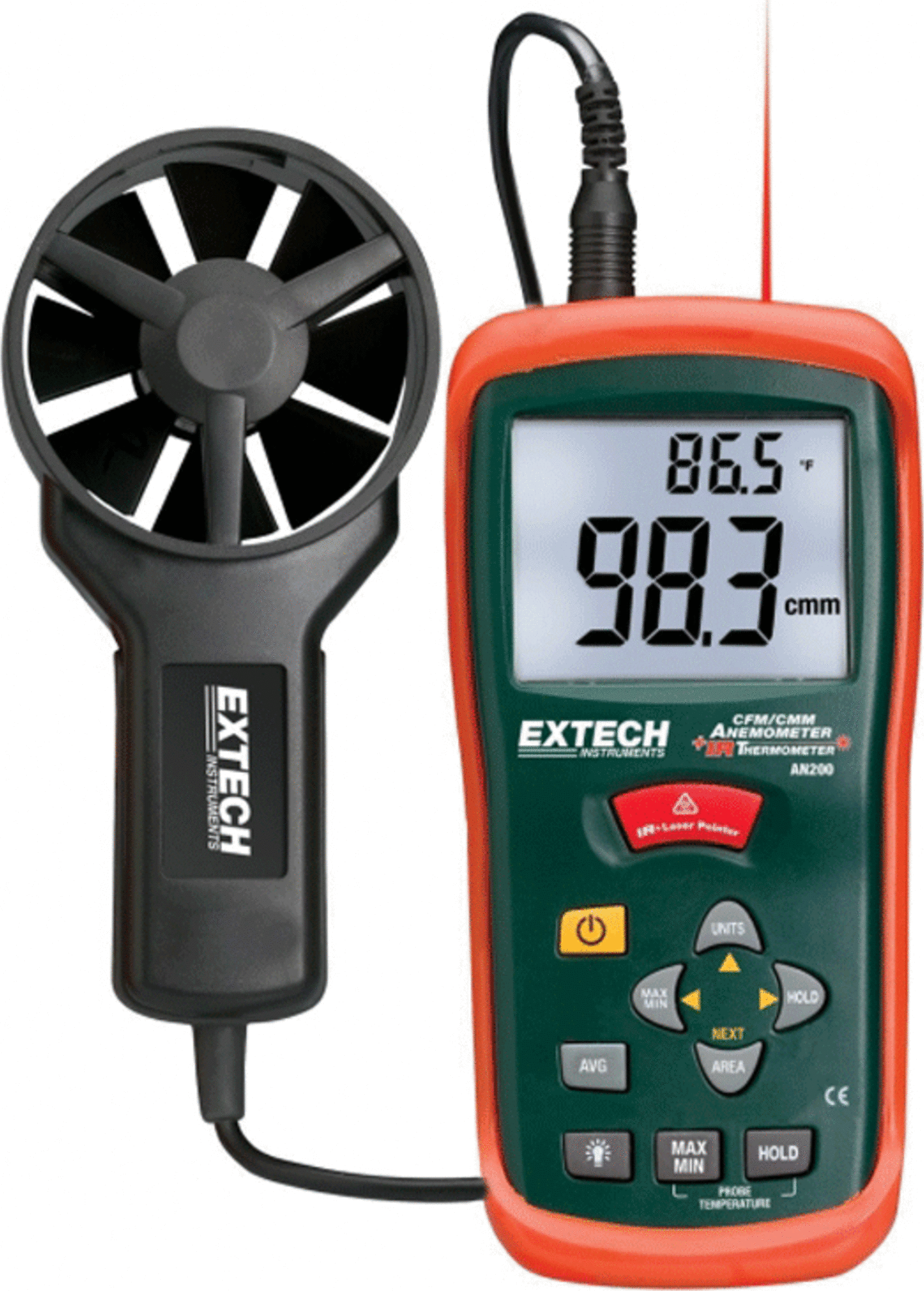

Extech AN200-NIST Anemometer / Air Flow - Type (anemometer): Vane, Measurement (anemometer): Ft/Min, Air Velocity Max: 5900 ft/min

Name: Extech AN200-NIST Anemometer / Air Flow - Type (anemometer): Vane, Measurement (anemometer): Ft/Min, Air Velocity Max: 5900 ft/min
Brand: Extech
SKU: ExtechAN200-NIST
Price: 303.74 USD
Availability: InStock

0 reviews | UPC: 793950452103 | Model: Extech AN200-NIST

Compare

Anemometer, CFM, W/NIST, AN200- PLEASE NOTE: If not in stock: NIST calibration takes between 7-14 days once stock is available.

CFM/CMM Thermo- Anemometer with built-in non-contact IR Thermometer measures remote surface temperatures to 500°F (260°C) with an 8:1 distance-to-spot ratio and Laser Pointer
Simultaneous display of Ambient Temperature and Air Flow or Air Velocity
Up to 8 easy to set Area dimensions (ft 2 or cm2) are stored in the meter's internal memory
20 point average function for Air Flow
Super large LCD Backlit Display
3% velocity accuracy via low friction 2.83"D (72mm) ball bearing vane wheel on 3.9ft (120cm) cable
Data Hold and MIN/MAX
Auto Power off
Complete with vane sensor with 3.9ft (120cm) cable,9V battery,protective rubber holster,and carrying case

Applications:

HVAC installation,repair,diagnostics,and optimization.
Fume hood testing,installation,and verification
Ventilation system installation,servicing,and analysis
Environmental wind and temperature testing/analysis
Boiler rooms
Ionizer flow output monitoring
Automobile aerodynamic testing
Plant/Facilities Maintenance

View Product Details

List Price: $341.05

Your Price: $303.74

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Extech AN200-NIST Anemometer, CFM, W/NIST, AN200- PLEASE NOTE: If not in stock: NIST calib ...	Extech AN200 Anemometer, CFM/CMM W/Built-In IR Therm Degrees F	Extech AN100-NIST Anemometer W/NIST, AN100- PLEASE NOTE: If not in stock: NIST calibration ...	Extech AN100 Anemometer CFM/CMM
Price
In Stock
Type (anemometer)	Vane	Vane	Vane	Vane
Measurement (anemometer)	Ft/Min, km/hr, knots, m/s, MPH	Ft/Min, km/hr, knots, m/s, MPH	Ft/Min, km/hr, knots, m/s, MPH	Ft/Min, km/hr, knots, m/s, MPH
Air Velocity Max	5900 ft/min	5900 ft/min	5900 ft/min	5900 ft/min
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

NIST Calibration Certificate - CFM-CMM Digital Thermo-Anemometer with built-in non-contact IR Thermometer. Extech AN200-NIST- NIST Calibration Certificate -CFM/CMM Thermo-Anemometer measures Air Velocity, Air Flow (volume) and Temperature. The large, easy-to-read backlit LCD includes primary and secondarydisplays plus numerous status indicators. The meter is shipped fully tested and calibrated and with proper use will provide years of reliable service.

General Specifications	Range	Resolution	Basic Accuracy
Air Velocity	0.40 to 30.00 m/s 1.4 to 108.0 km/h 80 to 5906 ft/min 0.9 to 67.2 mph 0.8 to 58.3 knots	0.01 m/s 0.1 km/h 1 ft/min 0.1 mph 0.1 knots	±3% m/s ±3% km/h ±3% ft/min ±3% mph ±3% knots
Air Temperature	14 to 140°F (-10 to 60°C)	0.1°F/°C	±6.0°F (3°C)
InfraRed Temperature (AN200 Only)	-58 to -4°F (-50 to -20°C) -4 to 500°F (-20 to 260°C)	0.1°F/°C 1°F/°C	±9.0°F (5.0°C) ±2% reading or ±2°F (°C) whichever is greater
Air Flow	0 to 9999 CMM (M³/min) 0 to 9999 CFM (ft³/min)	0.1 0.1

Tech Specs

Environmental Testers / Physical Property/Anemometer / Air Flow Template
Type (anemometer)	Vane
Measurement (anemometer)	Ft/Min, km/hr, knots, m/s, MPH
Air Velocity Max	5900 ft/min
Air Velocity Min	80 ft/min
Accuracy Air Velocity	ft/min:± (3%rdg + 40 ft/m)
Humidity	No
Temperature	Yes
IR Sensor for Tempature	Yes
Thermocouple Sensor for Temperature	No
Dew Point	No
Windchill	No
Light Meter	No
Water Proof	No
Min/Max Display	Yes
Data Hold	Yes
Thermal Printer Option	No
Interchangable Probe Options	No
Replaceable Vane	No
Metal Vane	No
Test Equipment General Attributes
Unique Features	CFM/CMM Thermo- Anemometer with built-in non-contact IR Thermometer measures remote surface temperatures to 536°F (280°C) with 8:1 distance to spot ratio and Laser Pointer Simultaneous display of Ambient Temperature and Air Flow or Air Velocity Up to 8 easy to set Area Dimensions are stored in the meter's internal memory 20 point average function for Air Flow...
Warranty	1 YEARS
Safety Approval	CE
Product Weight	1.6 LBS
Product Height	2.9 IN
Product Length	1.2 IN
Product Width	7 IN
Data Logging	No
Calibration Included	NIST Calibration
Battery Type	9v
Power Supply Voltage	Battery Powered
Country of Origin	China
