Extech 480836 EMF / ELF Meter - Type (EMF): Hand Held, Non Directional Measurement: Yes, Single Triaxial Measurement: Yes

Name: Extech 480836 EMF / ELF Meter - Type (EMF): Hand Held, Non Directional Measurement: Yes, Single Triaxial Measurement: Yes
Brand: Extech
SKU: Extech480836
Price: 271.44 USD
Availability: InStock
Rating: 5.00 (1 reviews)

5 (1 Review) | UPC: 793950488362 | Model: Extech 480836

Compare

RF/EMF Strength Meter

For electromagnetic field strength measurement including mobile phones, cell phones, base stations, and microwave leakage
Non-directional (isotropic) measurement with three-channel (triaxial) measurement probe
Max Hold and Average functions
Manual store/recall up to 99 sets
Level exceed audible alarm with user selectable threshold
Complete with 9V battery and carrying case

Applications:

RF electromagnetic wave field strength measurements
Mobile phone base station antenna radiation power density measurement
Radiation safety level tests
Locating RF "Hot Spots" in the workplace or at home
Microwave oven leakage tests
RF "Electrosmog" detection
Wireless network (Wi-Fi) RF detection

View Product Details

List Price: $304.99

Your Price: $271.44

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series


Product	Extech 480836 RF/EMF Strength Meter	Extech EMF510 EMF/ELFMeter	Extech 480826 EMF Tester/Triple Axis	Extech 480846 RF Electromagnetic Field Strength Meter
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Extech 480836 Accessories

Choose a Category

EMF / ELF Meter

for the Extech 480836

Extech 480836 RF/EMF Strength Meter

Catalog: 480836

(1)

In Stock!

Add to Cart

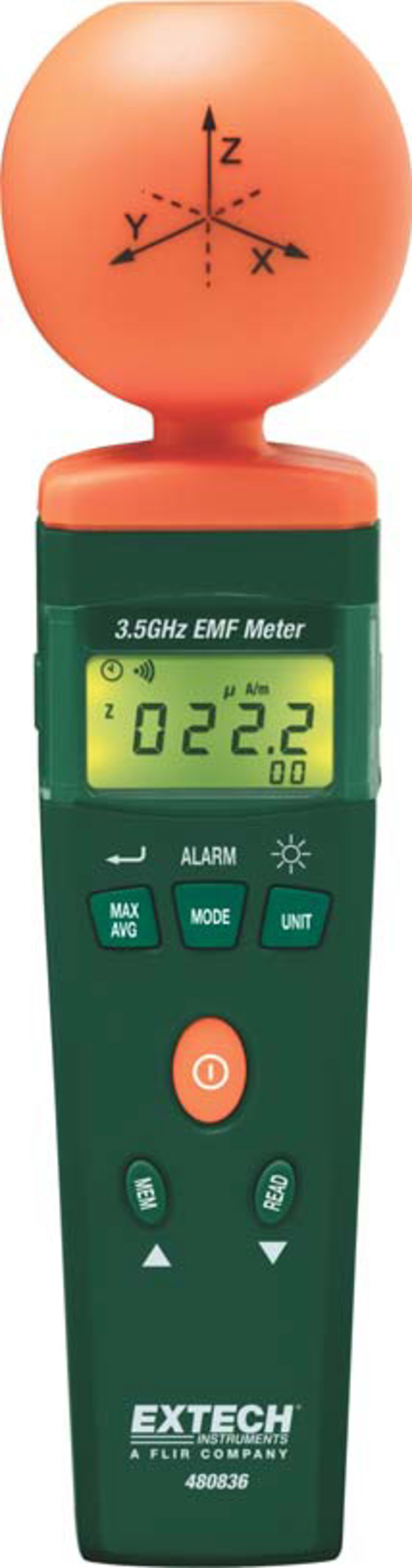

Extech 480836
RF EMF Strength Meter

Ideal for EMF measurements of mobile/cell phones, base stations and microwave leakage
Measurement optimized for 900MHz, 1800MHz and 2.7GHz
Non-directional (isotropic) measurement with three-channel (triaxial) measurement probe
Max Hold and Average functions
Manual store/recall up to 99 sets

High Frequency measurement for EMF (50MHz to 3.5GHz)

This RF EMF Strength Meter monitors high frequency radiation in the 50MHz to 3.5GHz range. Ideal for mobile phones, cell phones, base stations, locating RF hotspots, wireless network (Wi-Fi) RF detection, RF"Electrosmog" detection, and microwave leakage. It features non-directional measurement with 3-channel (triaxial) measurement probe, Max Hold and Average functions, and manual store/recall of up to 99 data sets. In addition, there is an audible alarm with a user-selectable threshold. The meter comes complete with a 9V battery and carrying case.

Applications

RF electromagnetic wave field strength measurements
Mobil phone base station antenna radiation power density measurement
Radiation safety level tests
Locating RF "Hot Spots" in the workplace or at home
Microwave oven leakage tests
RF "Electrosmog" detection
Wireless network (Wi-Fi) RF detection

General Specifications
Sensor Type	Electric Field
Frequency Range	50MHz to 3.5GHz
Units of Measure	mV/m, V/m, μA/m, mA/m, μW/m², mW/m², W/m², μW/cm², mW/cm²
Measuring Ranges	20mV/m to 108.0V/m 53μA/m to 286.4mA/m 1μW/m² to 30.93W/m² 0μW/cm² to 3.093mW/cm²
Resolution	0.1mVm, 0.1μA/m, 0.001μW/m², 0.001μW/cm²
Audible Alarm	Adjustable threshold with On/Off
Memory	Manual store/recall of 99 sets
Dimensions	9.3x2.4x2.4" (237x60x60mm)
Weight	7oz (200g)

Environmental Testers / Physical Property/EMF / ELF Meter Template
Type (EMF)	Hand Held
Non Directional Measurement	Yes
Single Triaxial Measurement	Yes
Dual Triaxial Measurement	No
RF Measurement	Yes
Maximum Frequency	3.5 GHz Maximum Frequency 50MHz to 3.5GHz
Memory Recall	Yes Memory Recall recall of 99 sets
Max Hold	Yes
Audible Alarm	Yes
Test Equipment General Attributes
Unique Features	For electromagnetic field strength measurement including mobile phones, cell phones, base stations, and microwave leakage Non-directional (isotropic) measurement with three-channel (triaxial) measurement probe Max Hold and Average functions Manual store/recall up to 99 sets Level exceed audible alarm with user selectable threshold Complete with 9V battery and carrying case
Warranty	1 MONTHS (0.083 YEARS)
Safety Approval	CE
Product Weight	7 OUNCES (0.438 LBS) Product Weight 200 gr.
Product Height	2.4 IN
Product Length	9.3 IN Product Length (237x60x60mm)
Product Width	2.4 IN
Data Logging	No
HTS/Schedule B Number	9030.89.0100
ECCN Number	EAR99
Calibration Included	Factory Calibration
Battery Type	9v
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan

5

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying 1 review

Most Helpful First | Newest First

Recommend to a Friend

Extech 480836

5.0

Great meter. Since becoming familiar with this meter, I have reduced the EMF radiation exposure sources to a very low level in my home and work area. I am glad I bought it. Thank you.

Anonymous on Feb 04, 2018
