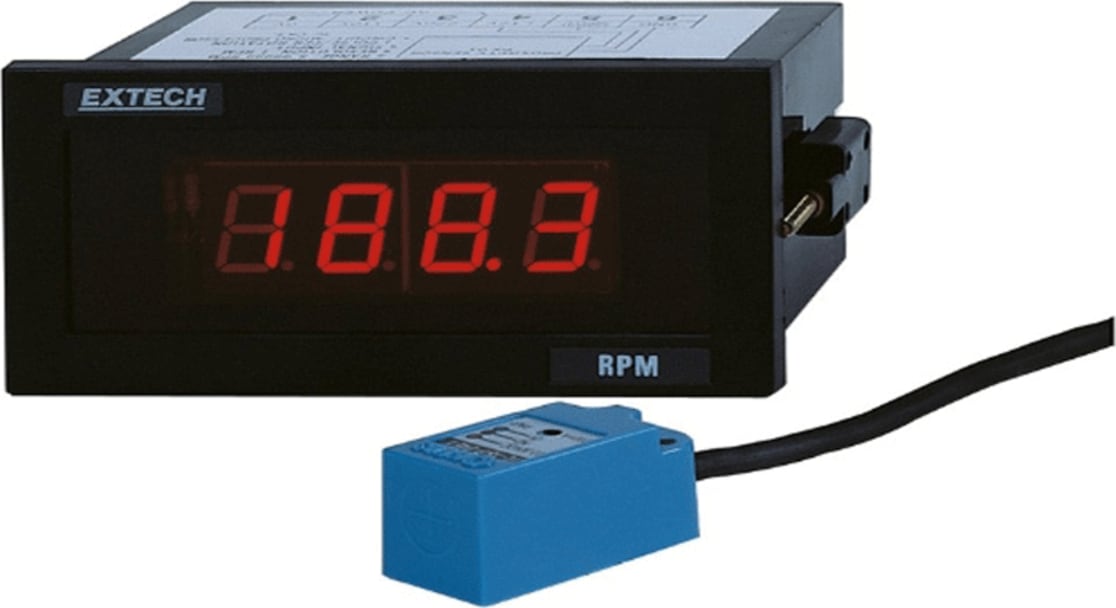

Extech 461950-NIST Tachometers - Detection Type: Contact, Display (Tachometer): LED, Style of Tachometer: Permanent-Mount

Name: Extech 461950-NIST Tachometers - Detection Type: Contact, Display (Tachometer): LED, Style of Tachometer: Permanent-Mount
Brand: Extech
SKU: Extech461950-NIST
Price: 242.23 USD
Availability: InStock

0 reviews | UPC: 793950479506 | Model: Extech 461950-NIST

Compare

Tachometer W/NIST 461950- PLEASE NOTE: If not in stock: NIST calibration takes between 7-14 days once stock is available.

Measure rpm from 5 to 99,990rpm with microprocessor quartz crystal accuracy of 0.05%
Large LED display updates 1/sec (rpm<60)
Resolution: 0.1rpm (5 to 1000rpm), 1rpm (1000 to 999rpm), 10rpm (10,000rpm to 99,990rpm)
Unique design permits rpm measurements of a one hole gear or disk eliminating the need for special gears
Powered by 115/230 VAC 50/60Hz
A pulse is measured when a ferrous object (stud) passes by sensor

View Product Details

List Price: $271.99

Your Price: $242.23

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Extech 461950-NIST Tachometer W/NIST 461950- PLEASE NOTE: If not in stock: NIST calibratio ...	Extech 461950 Tachometer, Panel Mount
Price
In Stock
Detection Type	Contact	Contact
Display (Tachometer)	LED	LED
Style of Tachometer	Permanent-Mount	Permanent-Mount
Compare	Add to compare	Add to compare

Recommended for you

Panel Mount Tachometer with NIST

Combination Contact/Laser Photo Tachometer uses a Laser for greater distance non-contact measurements up to 6.5ft (2m) and has a memory/readings button that holds last reading for 5 min and recalls min/max readings. Extech 461995-NIST Combination Contact/Laser Photo Tachometer has the following features.

General Specifications
Range	5 to 99,990 RPM
Resolution	0.1 (5 to 999.9); 1 (1000 to 9999); 10 (10.000 to 99,990)
Accuracy	0.05% + digit (of reading)
Display	0.5 " (13mm) 4-digit (9999 count) LED display
Display update rate	Once per second
Power	110/220VAC; 50/60Hz ±15%
Panel cutout dimensions	3.62 x 1.77" (92 x 45mm)
Bezel dimensions	3.78 x 1.89 x 2.36" (96 x 48 x 60mm)
Meter dimensions/Weight	3.61 x 1.66 x 3.54" (92 x 42 x 90mm); 13.9 oz. (397 g)

Tech Specs

Reliability / Preventative Maint / Rotational/Tachometers Template
Detection Type	Contact
Display (Tachometer)	LED
Style of Tachometer	Permanent-Mount
Max RPM	99990 RPM
Min RPM	5 RPM
Accuracy for Tachmometers	0.05% + 1digit
Test Equipment General Attributes
Warranty	1 YEARS
Safety Approval	CE
ECCN Number	EAR99
Calibration Included	NIST Calibration
Country of Origin	Taiwan
