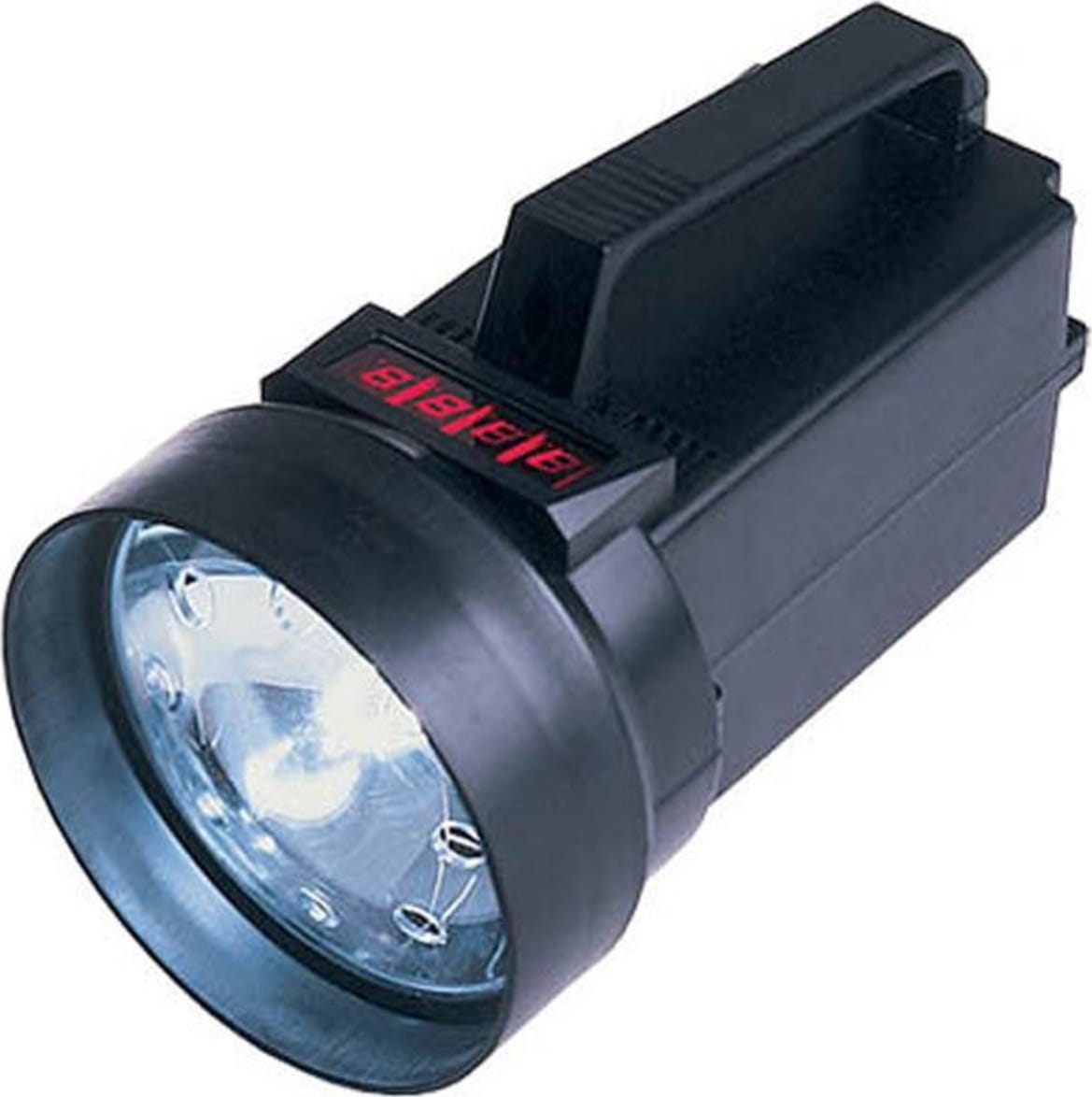

Extech 461831-NIST Tachometers - Detection Type: Non-Contact Photo, Style of Tachometer: Handheld, Max RPM: 10000

Name: Extech 461831-NIST Tachometers - Detection Type: Non-Contact Photo, Style of Tachometer: Handheld, Max RPM: 10000
Brand: Extech
SKU: Extech461831-NIST
Price: 355.10 USD
Availability: InStock

0 reviews | UPC: 793950478318 | Model: Extech 461831-NIST

Compare

Stroboscope W/NIST 461831- PLEASE NOTE: If not in stock: NIST calibration takes between 7-14 days once stock is available.

220VAC Power Supply
Checks and analyzes motion and speed by simply aiming and synchronizing its flash rate (fpm) with a rotating object rpms on 4 digit LED display
High accuracy over a wide, dynamic range via exclusive microcomputer LSI circuit and crystal control time-base
Ideal for measuring the speed of moving gears, fans, pumps, motors and other equipment used in general maintenance, production, quality control or labs
Tripod mount for stationary use
NIST Certification

View Product Details

List Price: $398.99

Your Price: $355.10

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Extech 461831-NIST Stroboscope W/NIST 461831- PLEASE NOTE: If not in stock: NIST calibrati ...	Extech 461830 Stroboscope 115VAC	Extech 461831 Stroboscope 220VAC	Extech 461830-NIST Stroboscope W/NIST 461830- PLEASE NOTE: If not in stock: NIST calibrati ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Extech 461831-NIST Accessories

Choose a Category

General Accessories

for the Extech 461831-NIST

Extech 461834 Lamp, Xenon, 2/Pack For Strobes

Catalog: 461834

(0)

In Stock!

Add to Cart

Digital StroboTach 220VAC, 50Hz with NIST Certificate

This device measures the speed of moving parts such as gears, fans, propellers, centrifuges, and pumps. The stop-motion action of this instrument permits the visual inspection of moving parts. Careful use of this instrument will provide years of reliable service.

General Specifications
Circuit	Exclusive one-chip LSI circuit with crystal time base
Display	4-digit (10,000 count; 0 to 9999) LED display
Measurement unit	RPM (revolutions or rotations per minute) is the speed of the moving device under test which equals the FPM rate (strobe flashes per minute)
Operating Temperature	32 to 122°F (0 to 50°C)
Operating Humidity	< 80% RH
Power Supply	220VAC 50/60Hz ±10%
Power Consumption	<25 watts @ 115V
Weight	2.2 lbs. (1kg)
Dimensions	8.3 x 4.8 x 4.8" (21 x 12 x 12cm)
Housing construction	Impact resistant plastic with plastic lens and mirrored reflectors
Electrical Specifications
Measurement Range	100 to 10,000 RPM/FPM
Resolution	0.1 (<1000 RPM/FPM), 1 (1000 to 9999 RPM/FPM), 10 (10,000 RPM/FPM)
Accuracy	± (0.05% + 1 digits)
Sampling Time	1 second
Strobe Flash adjust range	LOW: 100 to 1,000 RPM/FPM, HIGH: 1000 to 10,000 RPM/FPM
Strobe Flash tube type	Xenon lamp
Strobe Flash duration	60 to 1000 microseconds
Strobe Flash Energy	4 Watt-Seconds (Joules)
Strobe Beam Angle	80°
Strobe Flash Color	White 6500°K

Reliability / Preventative Maint / Rotational/Tachometers Template
Detection Type	Non-Contact Photo
Style of Tachometer	Handheld
Max RPM	10000 RPM
Min RPM	100 RPM
Accuracy for Tachmometers	±(0.05%rdg +1 digit)
Test Equipment General Attributes
Warranty	1 YEARS
Safety Approval	CE
Data Logging	No
ECCN Number	EAR99
Calibration Included	NIST Calibration
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan
