Extech 42529-NIST IR Infrared Thermometers - IR Temperature Max: 600 F, IR Temperature Min: 0 F, Field View Ratio (Spot Ratio): 6:1

Name: Extech 42529-NIST IR Infrared Thermometers - IR Temperature Max: 600 F, IR Temperature Min: 0 F, Field View Ratio (Spot Ratio): 6:1
Brand: Extech
SKU: Extech42529-NIST
Price: 227.27 USD
Availability: InStock

0 reviews | UPC: 793950455296 | Model: Extech 42529-NIST

Compare

IR Thermometer W/NIST 42529- PLEASE NOTE: If not in stock: NIST calibration takes between 7-14 days once stock is available.

Wide Temperature range: 0 to 600°F (-20 to 320°C)
Built-in laser pointer, °F/°C switchable
Fixed emissivity (0.95) covers 90% of surface applications
6:1 Narrow field of view
Audible and visible overrange indicators
Automatic Data Hold
Complete with 9V battery and carrying case

View Product Details

List Price: $255.19

In Stock:

View Payment Options

Recommended for you

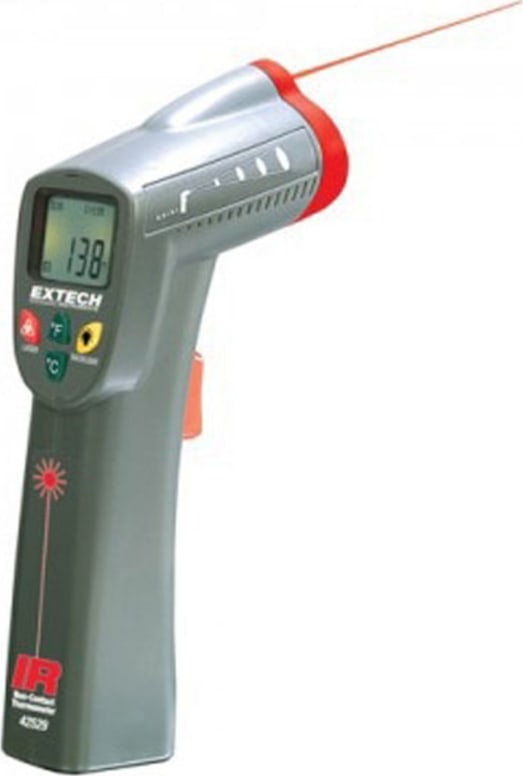

This thermometer makes non-contact (infrared) temperature measurements at the touch of a button. The built-in laser pointer increases target accuracy while the backlit LCD and handy push-buttons combine for convenient, ergonomic operation. Proper use and care of this meter will provide years of reliable service.

Applications:

Measure surface temperature of objects which are difficult to reach or unsafe to contact
Measure hot spots in electrical panels and equipment
In-process temperature measurements

Infrared Thermometer Specifications
Range / Resolution	0 to 600°F (-20 to 320°C) 1°C/F
Accuracy	± 2% of reading or ± 4°F (2°C) whichever is greater.
Note	Accuracy is specified for the following ambient temperature range: 64 to 82°F (18 to 28°C)
Emissivity	0.95 fixed value
Field of View	D/S = Approx. 6:1 ratio (D = distance, S = spot)
Laser power	Less than 1mW
Spectral response	6 to 14 µm (wavelength)
General Specifications
Display	31/2 digit backlit LCD display with function indicators
Display rate	1 second approx.
Over range indication	Audible tone sounds and ‘OVER’ appears on the LCD when the measurement exceeds the measurement range spec.
Operating Temperature	32°F to 122°F (0°C to 50°C)
Operating Humidity	Max. 80% RH.
Power Supply	9V battery
Automatic Power Off	Meter shuts off automatically after 7 seconds
Weight	6.35 oz. / 180g
Size	8.3 x 3.5 x 1.5” (211 x 89 x 38mm)

Tech Specs

Thermometers/IR Thermometers Template
IR Temperature Max	600 F
IR Temperature Min	0 F
Field View Ratio (Spot Ratio)	6:1
Accuracy	± 2% of reading or ± 2°C (4°F) whichever is greater. Note: Accuracy is specified for the following ambient temperature range: 18 to 28°C (64 to 82°F)
Laser Pointer	Yes
Backlight	Yes
Emissivity Adjustable	No
Alarm	No
Data Hold	Yes
Max./Min.	No
Memory Recall	No
Thermocouple Input	No
Food Safe	No
Test Equipment General Attributes
Unique Features	-6:1 Narrow field of view
Warranty	3 YEARS
Safety Approval	CE
Product Weight	180 GRAMS (0.397 LBS)
Product Height	211 MM (8.31 IN)
Product Length	89 MM (3.50 IN)
Product Width	38 MM (1.50 IN)
Shipping Weight	1 LBS
Data Logging	No
ECCN Number	EAR99
Calibration Included	NIST Calibration
Battery Type	9v
Power Supply Voltage	Battery Powered
Country of Origin	China
