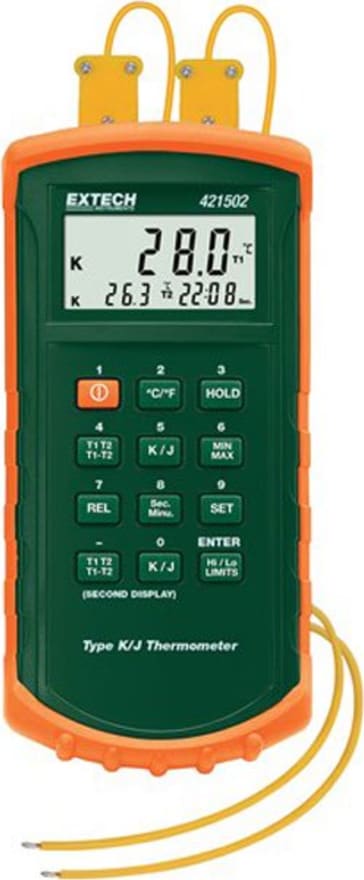

Extech 421502 - Type J/K, Dual Input Thermometer with Alarm

Name: Extech 421502 - Type J/K, Dual Input Thermometer with Alarm
Brand: Extech
SKU: Extech421502
Price: 152.28 USD
Availability: InStock
Rating: 5.00 (1 reviews)

5 (1 Review) | UPC: 793950425022 | Model: Extech 421502

Compare

Thermometer, Dual J/K W/Probes, Holster

Temperature range: -328 to 2498°F (-200 to 1370°C) for Type K and -328 to 1922°F (-200 to 1050°C) for Type J
Rugged water resistant design with protective holster/stand
Large 2000 count LCD displays T1, T2 or T1-T2, plus Elapsed Time
Data Hold, Relative, MIN/MAX/AVG and HOLD functions
Programmable Hi/Lo audible alarms
Selectable °C/°F units
Limited Two Years Warranty

View Product Details

List Price: $170.99

Your Price: $152.28

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Extech 421502 Thermometer, Dual J/K W/Probes, Holster
Rating	(1)
Price
In Stock
Type (Contact Thermometers)	Thermocouple
Types RTD/Thermocouples Accepted	J, K
Number of Probe Inputs/Channels	2
Compare	Add to compare

Recommended for you

Extech 421502 Accessories

Choose a Category

General Accessories
Temperature Probes

for the Extech 421502

Extech 881616 Magnetized Type K Surface Probe (-40 to 392?F)

Catalog: 881616

(0)

In Stock!

Add to Cart

Extech 871515 Probe, Temperature, K General Purpose

Catalog: 871515

(0)

In Stock!

Add to Cart

Extech 881602 Probe, Temperature, K Surface Probe

Catalog: 881602

(1)

In Stock!

Add to Cart

Extech 881603 Probe, Temperature, K Heavy Duty Penetration

Catalog: 881603

(0)

In Stock!

Add to Cart

Extech 881605 Probe, Temperature, K General Purpose, 6 inch

Catalog: 881605

(0)

In Stock!

Add to Cart

Extech TP200 Probe, Temperature, Pipe Clamp 200F

Catalog: TP200

(4)

In Stock!

Add to Cart

Extech TP400 450 Degrees F Pipe Clamp Temp Probe

Catalog: TP400

(0)

In Stock!

Add to Cart

Extech TP870 Probe, Temperature, K Bead Wire

Catalog: TP870

(1)

In Stock!

Add to Cart

Extech TP873-5M Bead Wire Temperature Probe, 5 Meters

Catalog: TP873-5M

(0)

In Stock!

Add to Cart

Extech TP875 Bead Wire High Temp Probe 1000 F W/Banana Plug Adaptor

Catalog: TP875

(1)

In Stock!

Add to Cart

Extech TP882 Probe, Penetration, K, High Temp/-50 To 1000F

Catalog: TP882

(1)

In Stock!

Add to Cart

Extech 421502

Range, Type K °F (°C): -328 to 2498°F (-200 to 1370°C)
Range, Type J °F (°C): -328 to 1922°F (-200 to 1050°C)
Basic Accuracy: ±(0.05% rdg +0.6°F); ±(0.05% rdg +0.3°C)
Resolution: 0.2°F/0.1°C

Type J/K, Dual Input Thermometer with Alarm

Thermometer with dual display, relative and programmable High/Low audible alarms

The 421502 Dual Type K/J Input Thermometer has a dual display and programmable High/Low audible alarms. It features a high, 0.05-percent accuracy, Min/Max/Average readings, Data Hold, Relative function, and differential temperature measurement between Type J, Type K or both J and K.

General Specifications
Display	5 digit LCD multifunction display
Battery Power Supply	NEDA 1604, IEC 6F22, or 006P 9VDC battery.
Auto Power off	Meter shuts down after approx. 30 mins. of inactivity
Battery life	100 hours typical with carbon zinc battery
Dimensions / Weight	7.5 x 3.6 x 2.1” (192x91x52.5mm); 11.7oz. (365g)
J TC Range	-328 to 1922°F (-200 to 1050°C)
K TC Range	-328 to 2498°F (-200 to 1370°C)
Resolution	0.1°C or 0.2°F
Temperature units	Selectable C or F temperature units
Accuracy	±(0.05% rdg + 0.3°C) -50°C to 1370°C, ±(0.05% rdg + 0.7°C) -50°C to -200°C, ±(0.05% rdg + 0.6°F) -58°F to 2498°F, ±(0.05% rdg + 1.4°F) -58°F to -328°F
Temperature Coefficient	0.1 times the applicable accuracy specifications per °C from 0°C to 18°C and 28°C to 50°C (32°F to 64°F and 82°F to 122°F)
Water resistant housing	Gasket protected front panel
Input Protection	24VDC or 24VAC rms max. input on any combination of inputs. Max voltage : between T1 and T2 inputs = 1V
Reading rate	One reading per second
Input connectors	Accepts standard miniature thermocouple connectors
Supplied thermocouple	4', type K, teflon insulation
Max insulation temp	260 °C (500 °F)
Accuracy	+2.2 o C or +0.75% of rdg (whichever is greater) from 0 °C to 800 °C
Ambient Operating Range	32 to 122 °F (0 to 50 °C); less than 80% RH
Storage Temperature	-4 to 140 °F (-20 to 60 °C); less than 70% RH
Alarm	95dB

Tech Specs

Thermometers/Contact Thermometers Template
Type (Contact Thermometers)	Thermocouple
Types RTD/Thermocouples Accepted	J, K
Number of Probe Inputs/Channels	2
Resolution (thermometers)	0.2°F/0.1°C
Accuracy	±(0.05% rdg +0.6°F); ±(0.05% rdg +0.3°C)
Test Equipment General Attributes
Warranty	2 YEARS
Warranty Details	Limited Two Years Warranty
Safety Approval	CE
Product Weight	13 OUNCES (0.812 LBS)
Product Height	2.40 IN
Product Length	2.1 IN
Product Width	3.6 IN
HTS/Schedule B Number	9025198080
ECCN Number	EAR99
Calibration Included	Factory Calibration
Battery Type	9v
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan

5

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying 1 review

Most Helpful First | Newest First

Recommend to a Friend

works well

5.0

Does what it says it will. Reads temperature from two thermocouples simultaneously.

Verified Purchase Ying Chen on Jun 13, 2018
