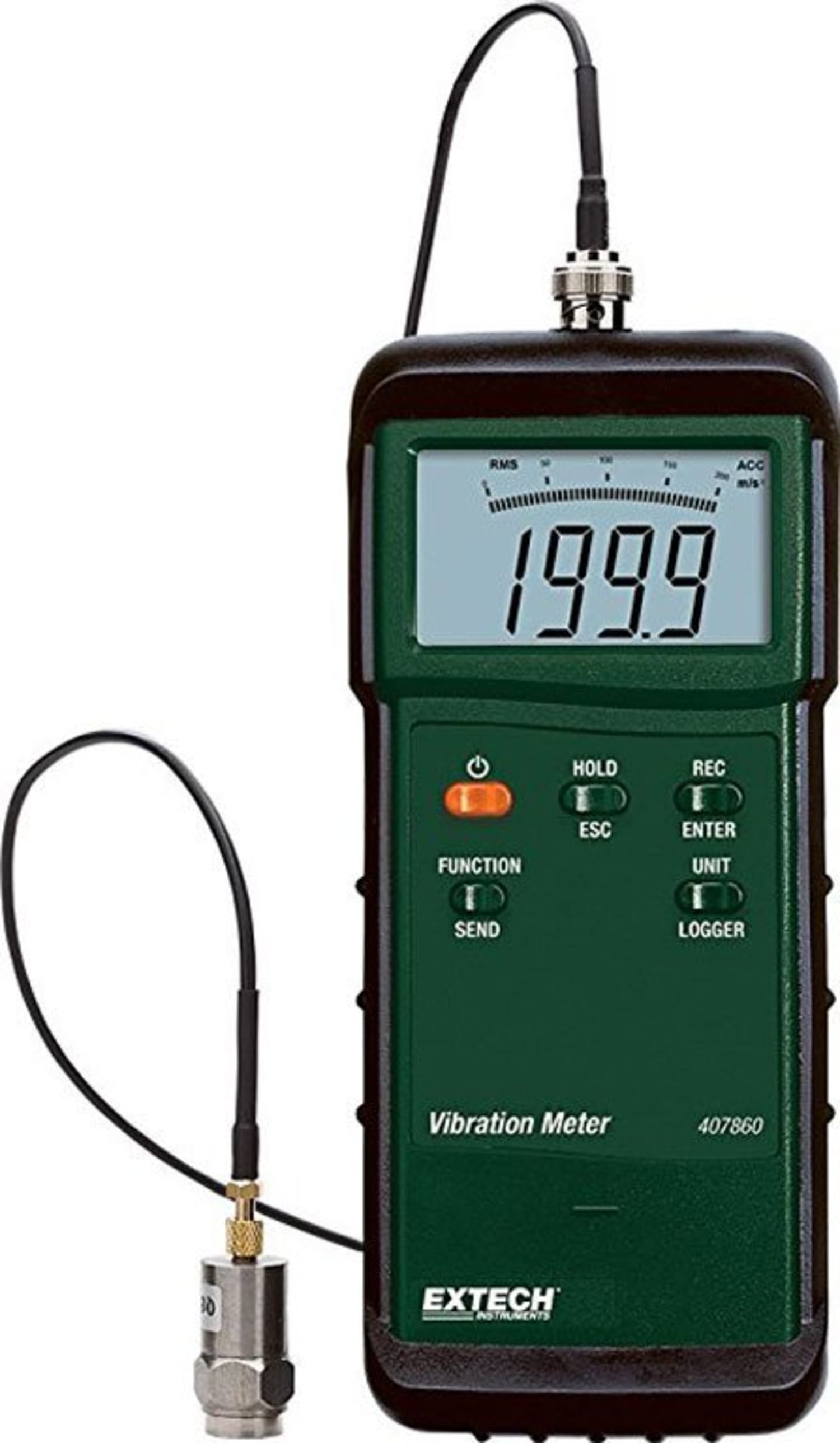

Extech 407860 Vibration Meter - Velocity Resolution: 0.5, Accerlation Range: 199.9, Accerlation Resolution: 0.5

Name: Extech 407860 Vibration Meter - Velocity Resolution: 0.5, Accerlation Range: 199.9, Accerlation Resolution: 0.5
Brand: Extech
SKU: Extech407860
Price: 889.11 USD
Availability: InStock
Rating: 5.00 (1 reviews)

5 (1 Review) | UPC: 793950408605 | Model: Extech 407860

Compare

Heavy Duty Vibration Meter, Mounted pickup

Ranges - Acceleration (peak): 656ft/s2 (200m/s2 ), Velocity (peak): 7.87in/s (200mm/s), Displacement (peak-to-peak): 0.078in (2mm)
Remote vibration sensor with magnetic adapter on 39"(1m) cable
Wide frequency range of 10Hz to 1kHz
Resolution to 2ft/s2 (0.5m/s2 ), 0.02in/s (0.5mm/s), and 0.001in (0.005)mm
Basic accuracy of ±(5% + 2 digits)
RMS or Peak Value measurement modes
Manual/Auto store/recall up to 500 readings
Data Hold freezes the reading in the display
Auto shut-off saves battery life
9V battery power or optional AC adaptor
Dimensions: 7.1 x 2.8 x 1.3" (180 x 72 x 32mm); Weight with Probe: 0.87lbs (395g)

Applications:

Motors, bearings
Fans
Pumps
Rotating machinery
Plant maintenance

View Product Details

List Price: $999.00

Your Price: $889.11

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Extech 407860 Heavy Duty Vibration Meter, Mounted pickup	Extech VB300 Vibration Datalogger	Extech VB400 Pen Vibration Meter	Extech SDL800-NIST Vibration Meter SD Logger W/NIST- PLEASE NOTE: If not in stock: NIST ca ...	Extech SDL800 Vibration Meter SD Logger	Extech 407860-NIST Vibration Meter W/NIST, 407860- PLEASE NOTE: If not in stock: NIST cali ...	Extech VB450 Vibration Meter	Extech VB450-NIST Vibration Meter W/NIST- PLEASE NOTE: If not in stock: NIST calibration t ...	Extech VB400-NIST Pen Vibration Meter W/NIST- PLEASE NOTE: If not in stock: NIST calibrati ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Extech 407860 Accessories

Choose a Category

Cables - Misc
General Accessories

for the Extech 407860

Extech 407001-USB ADAPTOR, USB, FOR 407001

Catalog: 407001-USB

(0)

In Stock!

Add to Cart

Extech 407860-MAG Extech 407860-MAG - Magnetic Mount for Extech 407860

Catalog: 407860-MAG

(1)

In Stock!

Add to Cart

Extech 407860 - Heavy Duty Vibration Meter

RMS or Peak Value measurement modes
Remote vibration sensor with magnetic adapter on 39"(1m) cable
Manual/Auto store/recall up to 500 readings
Wide frequency range of 10Hz to 1kHz
Auto shut-off saves battery life

The 407860 Heavy Duty Vibration Meter has a Velocity range of 7.87 in./s or 200 mm/s; Acceleration range of 656 ft./s or 200 m/s, and Displacement range of 0.078 in. or 2 mm. It features a basic accuracy of 5%, a remote vibration sensor (magnetic or stud mounted) with a 39 in. (1 m) cable, RMS, Peak Value measurement modes, and auto/manual-store with the recall of up to 500 readings. The captured readings can be downloaded to your PC for further analysis using the optional Windows compatible data logging software. Meter comes complete with a remote sensor, magnetic mount, 9V battery, holster with stand, and case.

Specifications
Display	LCD
Warranty Length	3 Year
Accuracy	Plus or Minus 5%
Auto Power Off	Yes
Battery Type	9V
Data Hold	Yes
Interface	Built-in RS-232
Acceleration Range	To 656 ft/s2 or 200 m/s2
Frequency Range (Hz)	10 to 1 K
Includes	Remote Sensor With 3.9 Foot (1.2 Meter) Cable, Magnetic Mount, Battery, Holster, Carrying Case And Instructions
Item	Digital Vibration Meter
Velocity	To 7.87 In/s or 200mm/s
Weight	2.60

Reliability / Preventative Maint / Rotational/Vibration Meter Template
Velocity Resolution	0.5 mm/sec Velocity Resolution 0.5 to 199.9
Accerlation Range	199.9 m/sec2 Accerlation Range 0.5 to 199.9m/s2
Accerlation Resolution	0.5 m/sec2
Frequency Range	1 kHz (1000 Hz) Frequency Range 10Hz to 1KHz
Single Axis Measurement	No
Tri-Axial Measurement	No
Tachometer Capability	No
Peak/Hold	Yes
Test Equipment General Attributes
Unique Features	Ranges — Acceleration: 200m/s2, Velocity: 200mm/s, Displacement: 2mm Remote vibration sensor with magnetic adapter on 39"(1m) cable Record mode stores the maximum and minimum values for later recall Wide frequency range of 10Hz to 1kHz Resolution to 0.5m/s2, 0.5mm/s, and 0.005mm Basic accuracy of ±(5% + 2 digits) RMS or Peak Value measurement modes Data Hold freezes the reading in the display Auto shut-off saves battery life
Warranty	1 YEARS
Safety Approval	CE
Interfaces I/O	RS-232
Product Weight	0.87 LBS Product Weight with Probe
Product Height	2.8 IN
Product Length	1.3 IN
Product Width	7.1 IN
Data Logging	Yes Data Logging Store up to 500 readings
HTS/Schedule B Number	9027808090
ECCN Number	EAR99
Calibration Included	Factory Calibration
Battery Type	9v Battery Type optional AC adaptor
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan
