Extech 407780A Sound Level Meters - Minimum Sound Level: 30 dB, Maximum Sound Level: 130 dB, Display (Sound Level Meter): Digital

Name: Extech 407780A Sound Level Meters - Minimum Sound Level: 30 dB, Maximum Sound Level: 130 dB, Display (Sound Level Meter): Digital
Brand: Extech
SKU: Extech407780A
Price: 1405.31 USD
Availability: InStock
Rating: 5.00 (1 reviews)

5 (1 Review) | UPC: 793950407813 | Model: Extech 407780A

Compare

Leq and SEL measurements with built-in datalogger and PC interface.

4-digit multifunction LCD with analog bargraph
Precise linearity over wide range (100dB)
Display modes: SPL, SPL MIN/MAX, SEL, and Leq
Programmable integrating time
A and C Frequency weighting
Impulse/Fast/Slow response settings
Datalogging function records up to 32,000 records
Real time calendar/clock
Analog and alarm output features can be used to connect with Frequency analyzers, chart recorders, external dataloggers, and sound level alarms
Built-in USB interface with included Windows® datalogging software
Tripod mount
Meets IEC 61672-1, 60651/60804 Type 2 and ANSI S1.4 Type 2 specifi cations

Applications

Perform Leq and SEL measurements
OSHA compliance Testing
Noise Ordinance
Machine Noise Evaluation
Data Storage for pertinent records

View Product Details

List Price: $1,579.00

Your Price: $1,405.31

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Extech 407780A Leq and SEL measurements with built-in datalogger and PC interface.	Extech 407780A-NIST 407780A Sound Level Meter W/NIST- PLEASE NOTE: If not in stock: NIST c ...
Price
In Stock
Minimum Sound Level	30 dB	30 dB
Maximum Sound Level	130 dB	130 dB
Display (Sound Level Meter)	Digital	Digital
Compare	Add to compare	Add to compare

Recommended for you

Extech 407780A Accessories

Choose a Category

General Accessories

for the Extech 407780A

Extech 407744 Sound Level Calibrator, 94dB

Catalog: 407744

(1)

In Stock!

Add to Cart

Extech 407766 Calibrator, Sound

Catalog: 407766

(0)

In Stock!

Add to Cart

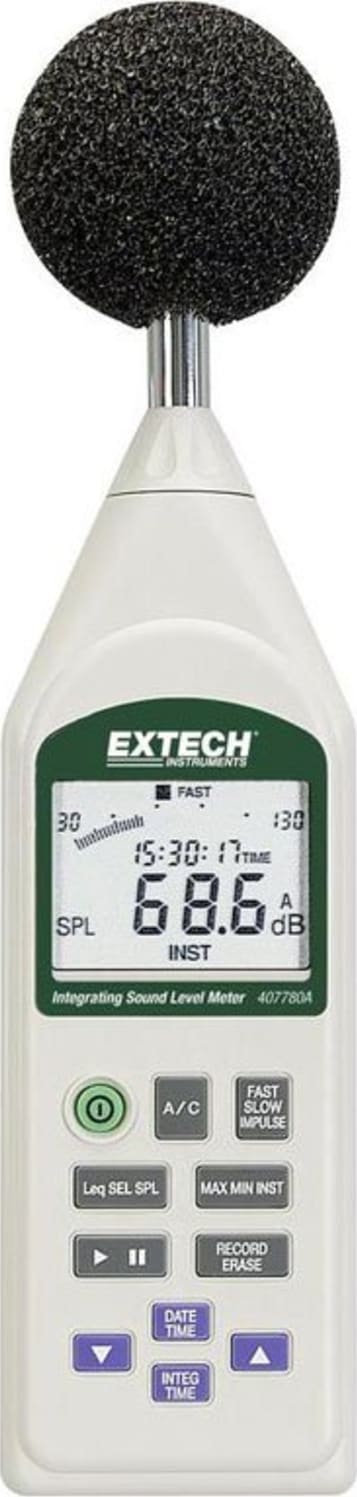

Extech 407780A - Integrating Sound Level Meter with USB

Datalogging function records up to 32,000 records
Programmable integrating time
Real time calendar/clock
Linearity over wide range (100dB)
Display modes: SPL, SEL, Lmax/Lmin, & Leq

Leq and SEL measurements with built-in datalogger and PC interface

The 407780A is an integrating sound level meter with USB. The meter takes Leq and SEL measurements with A and C frequency weighting options. The meter has a built in datalogger that records up to 32,000 records and PC interface to easily access your logged information. Its 4 digit multifunction LCD has an analog bargraph and digital reading. With the 407780A you can program integration times, utilize impulse, fast or slow response settings and benefit from alarm features.

General Specifications
Applicable Standards	IEC 651 And 804 Type 2,ANSI S1.4 Type 2
Accuracy	±1.5dB (ref 94dB@1KHz)
Bandwidth	0.1dB
Digital Display	4 digital LCD/s
Measurement Parameters	SPL,Leq,SEL,MaxL,MinL
Measurement Range	30dB to 130dB
Linearity Range	100dB
Measurement Frequency Range	31.5Hz to 8KHz
Frequency Weighting	A and C
Response	Impulse,Fast and Slow
Microphone	1/2 " Electret condenser microphone
Sampling time	updated every 0.5s
Bargraph	4dB steps,100dB range,100ms update
Display Warning Function Overrange Indicator Underrange Indicator	Displayed at the upper limit Displayed at the lower limit
Analog AC/DC Output	2Vrms (at full scale),10mVDC/dB
Power Supply	Four 1.5V AA batteries,Optional AC adapter
Battery Life	Approximately 20 hours
Dimensions	10.4x2.8x0.8" (265x72x21mm)
Weight	10.9oz (310g)

Environmental Testers / Physical Property/Sound Level Meters Template
Minimum Sound Level	30 dB
Maximum Sound Level	130 dB
Display (Sound Level Meter)	Digital
A Frequency Weighting	Yes
B Frequency Weighting	No
C Frequency Weighting	Yes
Frequency Range Max	8 kHz (8000 Hz)
Resolution (Sound Level Meters)	0.1 dB
Accuracy	±1.5
Calibrator Capability	No
Vibration Measurement	No
Noise Level Measurement	Yes
Fast/Slow Time Adjustment	Yes
Min/Max Display	Yes
Tripod Mount	Yes
Type (Sound Level Meter)	II
Test Equipment General Attributes
Warranty	1 YEARS
Safety Approval	CE
Interfaces I/O	RS-232
Product Height	3.00 IN
Product Length	15.50 IN
Product Width	8.00 IN
Data Logging	Yes
HTS/Schedule B Number	9027.89.8090
ECCN Number	3A992
Calibration Included	Factory Calibration
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan
Shipping Height	3.00 IN
Shipping Length	15.50 IN
Shipping Width	8.00 IN
