Extech 407119-NIST Anemometer / Air Flow - Type (anemometer): Vane, Measurement (anemometer): Ft/Min, Air Velocity Max: 3346 ft/min

Name: Extech 407119-NIST Anemometer / Air Flow - Type (anemometer): Vane, Measurement (anemometer): Ft/Min, Air Velocity Max: 3346 ft/min
Brand: Extech
SKU: Extech407119-NIST
Price: 613.21 USD
Availability: InStock

0 reviews | UPC: 793950411193 | Model: Extech 407119-NIST

Extech 407119 Heavy Duty CFM Hot Wire Thermo-Anemometer

Compare

Anemometer W/NIST 407119- PLEASE NOTE: If not in stock: NIST calibration takes between 7-14 days once stock is available.

Air velocity measurements as low as 40ft/min
Telescoping probe is ideal for use in ducts and ventilating systems; extends up to 3ft (0.9m) long
Measures air volume in CFM (ft 3 /min) and CMM (m3 /min) plus Temperature simultaneously
Air Flow displayed in 2 modes as an instantaneous value or up to 20 point average
Record/Recall MIN and MAX readings
Large 1.4" LCD display
Data Hold plus Auto Power Off

View Product Details

List Price: $689.00

Your Price: $613.21

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Extech 407119-NIST Anemometer W/NIST 407119- PLEASE NOTE: If not in stock: NIST calibratio ...	Extech 407119 Heavy Duty Hot Wire CFM Thermo-Anemometer
Price
In Stock
Type (anemometer)	Vane	Vane
Measurement (anemometer)	Ft/Min, km/hr, knots, m/s, MPH	Ft/Min, km/hr, knots, m/s, MPH
Air Velocity Max	3346 ft/min	3346 ft/min
Compare	Add to compare	Add to compare

Recommended for you

Extech 407119-NIST Accessories

Choose a Category

Cases

for the Extech 407119-NIST

Extech 409997 Carrying Case, Large Vinyl Pouch

Catalog: 409997

(2)

In Stock!

Add to Cart

Extech 407119-NIST Heavy Duty CFM Hot Wire Thermo-Anemometer

Measures air volume in CFM (ft 3 /min) and CMM (m3 /min) plus Temperature simultaneously
Air velocity measurements as low as 40ft/min
Record/Recall MIN and MAX readings
Telescoping probe is ideal for use in ducts and ventilating systems; extends up to 3ft (0.9m) long
Large 1.4" LCD display

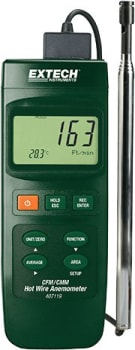

The 407119 Heavy Duty CFM Hot Wire Thermo--Anemometer uses a telescoping probe (extends up to 3 ft) which is ideal for use in ducts and ventilating systems. It can accurately measure Air Flow (CFM/CMM), Air Velocity and Temperature. Air Flow can be displayed as an instantaneous value or up to a 20 point average. Additional functions include Data Hold, Min/Max, and Auto power off. Comes complete with telescoping probe with 5.5ft cable, and 4 x AA batteries.

General Specifications
Display	Dual function 4-digit LCD
Measurement units	Air Velocity - m/s, km/h, ft/min, knots, mph; Air Flow - CMM (m³/min) and CFM (ft³/min); Temp - °C and °F
Data hold	Freezes displayed reading
Sampling rate	1 second approx.
Sensors Air velocity sensor	Glass bead thermistor
Temperature sensor	Thermistor
MAX/MIN	Memory Record and view Maximum and Minimum readings
Automatic Power off	Auto shut off after 15 minutes
Data Output	RS-232 PC serial interface with 16-bit data stream output
Operating Temperature Meter	32 to 122°F (0 to 50°C)
Sensor	32 to 176°F (0 to 80°C)
Operating Humidity Max.	80% Relative Humidity
Power Supply	Six (6) ‘AAA’ 1.5V batteries
Power Current	Approx. DC 30mA
Weight	(meter only) 0.78 lbs. (355g)
Dimensions Main instrument	7.1 x 2.8 x1.3" (180 x 72 x 33mm)
Telescoping Sensor	0.5" (12.7mm) diameter head; 37" (.94m) maximum antenna length with 78" (2m) cable

Environmental Testers / Physical Property/Anemometer / Air Flow Template
Type (anemometer)	Vane
Measurement (anemometer)	Ft/Min, km/hr, knots, m/s, MPH
Air Velocity Max	3346 ft/min
Air Velocity Min	40 ft/min
Accuracy Air Velocity	ft/min:±(5% + 100 digits)
Humidity	No
Temperature	Yes
IR Sensor for Tempature	No
Thermocouple Sensor for Temperature	No
Dew Point	No
Windchill	Yes
Light Meter	No
Water Proof	No
Min/Max Display	Yes
Data Hold	Yes
Thermal Printer Option	No
Interchangable Probe Options	No
Replaceable Vane	No
Metal Vane	No
Test Equipment General Attributes
Unique Features	Air velocity measurements as low as 40ft/min Telescoping probe is ideal for use in ducts and ventilating systems; extends up to 4ft (1.22m) long 20 point averaging for airflow Record and recall MIN/MAX readings Data Hold plus Auto power off Built-in RS-232 PC Interface
Warranty	3 YEARS
Safety Approval	CE
Interfaces I/O	RS-232
Product Weight	1.15 LBS
Product Height	3 IN
Product Length	1.5 IN
Product Width	7.9 IN
Data Logging	Yes
HTS/Schedule B Number	9026.80.4000
ECCN Number	EAR99
Calibration Included	NIST Calibration
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan
Shipping Height	6.00 IN
Shipping Length	11.25 IN
Shipping Width	8.25 IN
