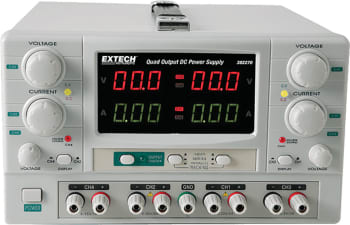

Extech 382270-E - Quad Output DC Power Supply with EU Power Cord

Name: Extech 382270-E - Quad Output DC Power Supply with EU Power Cord
Brand: Extech
SKU: Extech382270-E
Price: 524.21 USD
Availability: InStock

0 reviews | UPC: 793950322710 | Model: Extech 382270-E

Compare

DC Power Supply, Quad Output w/EU Power Cord

DC Power Supply, Quad Output w/EU Power Cord
Two 0 to 30V/0 to 5A outputs with selectable Constant Voltage and Constant Current modes
Outputs up to 60V in series mode or 10A in parallel mode
Two auxiliary outputs with fixed current of 3 to 6.5V/3A and 8 to 15V/1A
Overload and short circuit protection
Complete with power cord and 4 pairs of test leads (banana plug to alligator clip)

View Product Details

List Price: $589.00

Your Price: $524.21

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series


Product	Extech 382270-E DC Power Supply, Quad Output w/EU Power Cord	Extech 382270 DC Power Supply, Quad Output
Price
In Stock
Outputs	Quad	Quad
Voltage Output 1	Variable	Variable
Max Voltage Output 1	30 V	30 V
Compare	Add to compare	Add to compare

Recommended for you

Extech 382270-E Accessories

Choose a Category

Power Supply Kits

for the Extech 382270-E

Cal Test CT4041 Power Supply Accessory Kit ( rated for up to 20amps ) Get the most...

Catalog: CT4041

(23)

In Stock!

Add to Cart

Extech 382270-E - Quad Output DC Power Supply with EU Power Cord

DC Power Supply, Quad Output w/EU Power Cord
Two 0 to 30V/0 to 5A outputs with selectable Constant Voltage and Constant Current modes
Outputs up to 60V in series mode or 10A in parallel mode

382270 is a Quad Output DC Power Supply that has two 0 to 30V/0 to 5A outputs plus two fixed auxiliary outputs of 3 to 6.5V/3A and 15V/1A. The two 30V outputs can be combined in parallel for 10A or in series for 60V. Comes complete with 4 pairs of test leads (banana plug to an alligator clip) and an AC cord.

General Specifications
Output Voltage (4)	0 to 30V, 0 to 30V, 3 to 6.5V,8 to 15V
Output Current (4)	0 to 5A, 0 to 5A, 3A (fixed), 1A (fixed)
Load Voltage Regulation	0.5mV ±3mV
Line Voltage Regulation	0.1mV ±3mV
Load Current Regulation	2mA ±5mA
Line Current Regulation	2mA ±3mA
Ripple and Noise	<0.5mVrms
Power	110 to 240VAC, 50/60Hz (Switchable)
Dimensions	10.2 x 6.3 x 14.5" (260 x 160 x 370mm)
Weight	26.5lbs (12kg)

Power Supplies/DC Power Supplies Template
Outputs	Quad
Voltage Output 1	Variable
Max Voltage Output 1	30 V
Programmable	No
Current Output 1	Variable
Max Current Output 1	5 A
Voltage Output 2	Variable
Max Voltage Output 2	30 V
Current Output 2	Variable
Max Current Output 2	5 A
Voltage Output 3	Fixed
Max Voltage Output 3	6.5 V
Current Output 3	Fixed
Max Current Output 3	3 A
Voltage Output 4	Fixed
Max Voltage Output 4	15 V
Current Output 4	Fixed
Max Current Output 4	1 A
Meter Type	Digital
Switching	Yes
Linear/Switching	Switching
Max Display Resolution Current	3 mA
Max Display Resolution Voltage	3 mV
Constant current/voltage	Yes
Remote Sensing	No
Test Equipment General Attributes
Unique Features	Two 0 to 30V/0 to 5A outputs with selectable Constant Voltage and Constant Current modes Outputs up to 60V in series mode or 10A in parallel mode Two auxiliary outputs with fixed current of 3 to 6.5V/3A and 8 to 15V/1A Overload and short circuit protection Complete with power cord and 4 pairs of test leads (banana plug to alligator clip)
Warranty	1 YEARS
Product Weight	26.5 LBS
Product Height	6.3 IN
Product Length	14.5 IN
Product Width	10.2 IN
Data Logging	No
ECCN Number	EAR99
Power Supply Voltage	120V/220V Universal
Country of Origin	China
Shipping Height	9.90 IN
Shipping Length	13.75 IN
Shipping Width	13.80 IN
