Extech 380803-NIST Power Loggers - Maximum Current AC: 20 A, Maximum Current DC: 20 A, Maximum Voltage AC: 750 V

Name: Extech 380803-NIST Power Loggers - Maximum Current AC: 20 A, Maximum Current DC: 20 A, Maximum Voltage AC: 750 V
Brand: Extech
SKU: Extech380803-NIST
Price: 866.86 USD
Availability: InStock

0 reviews | UPC: 793950308042 | Model: Extech 380803-NIST

Compare

Power Analyzer w/NIST 380803- PLEASE NOTE: If not in stock: NIST calibration takes between 7-14 days once stock is available.

Four simultaneous displays of Watts, Power Factor or VA, Voltage or Hz, Amps
True RMS Voltage & Current measurements of sine, square, triangular and distorted wave forms with a crest factor < 5
Max, Data Hold and Overload Protection
Battery or AC adaptor provides line isolation
Plug device to be tested directly into the Power Analyzer
Sampling (update) rate is 2.5 times/second
Windows® 95/98/NT/2000/XP/ME software allows user to download stored data or save data directly, and to create an ASCII file. Computations include phase angle, apparent and reactive power, consumption and cost, and power factor correction

Applications

Measure and Audit power consumption of single phase devices
Evaluate load performance under varying line conditions
Demonstrate effectiveness of power conservation efforts
Characterize device AC power requirements

View Product Details

List Price: $974.00

In Stock:

View Payment Options

Recommended for you

Extech 380803-NIST True RMS Power Analyzer Datalogger

Plug device to be tested directly into the Power Analyzer
Sampling (update) rate is 2.5 times/second
Demonstrate effectiveness of power conservation efforts
Battery or AC adaptor provides line isolation
Max, Data Hold and Overload Protection

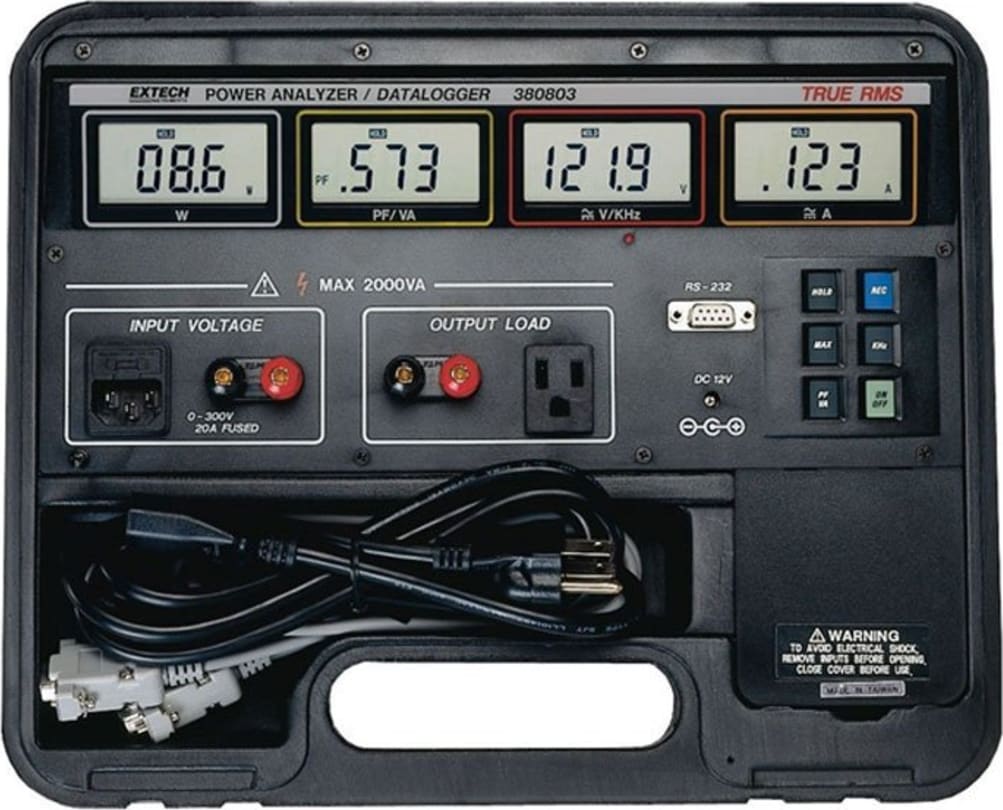

The 380803 is a True RMS power analyzer and data logger. Appliance Tester/Power Analyzer simultaneously displays the Wattage, Power Factor or VA, Voltage or frequency (Hz), and Current (Amps) of the device or appliance tested. The built-in data logger can store up to 1,012 readings or you can save data directly to your PC using the built-in RS-232 port and included software. Additional features include Max Hold, Data Hold, and overload protection. Battery or AC Adaptor Operation provides line isolation. Comes complete with 8 AA batteries, software, cable, power cord, AC Adaptor, and case.

General Specification
---	Range	Resolution	Basic Accuracy (%rdg)	Input Signal Range
Watt	0.1/1W	±(0.9% + 4d)@50/60Hz	300V, 20A, 40-400Hz	300V, 20A, 40-400Hz
Power Factor	0.5 to 1.0	0.001	(Based on W, V, A)	250V, 20A, 50/60Hz
Voltage	200.0/750V	0.1/1V	±(0.5%)	750VAC
Current	2/20A via terminals		±(0.5%)	(Fuse Protection)
Current	2/15A via sockets
Frequency	40Hz to 20kHz	1Hz to 10Hz	±(0.5%)
Dimensions/Weight	13.9 x 11.8 x 3.9" (352 x 300 x 100mm) / 3.6 lbs. (1.6 kg)

Power Measurement/Power Loggers Template
Maximum Current AC	20 A
Maximum Current DC	20 A
Maximum Voltage AC	750 V
Maximum Voltage DC	750 V
Current Input Channels	2
Voltage Input Channels	2
Transient Capture	No
Displays Waveform	Yes
Energy	No
Phasor Diagrams	No
Power Factor (Power Quality)	Yes
Harmonics	No
Current Clamps Included	No
CAT Rating	III
CAT Voltage Rating (V)	600V
Test Equipment General Attributes
Unique Features	True RMS Single Phase Power Analyzer Four simultaneous displays of Watts, Power Factor or VA, Voltage or Hz, Amps True RMS Voltage & Current measurements of sine, square, triangular and distorted wave forms with a crest factor < 5 Plug device to be tested directly into the Power Analyzer Max, Data Hold and Overload Protection Battery or AC adaptor provides line isolation
Warranty	1 YEARS
Interfaces I/O	RS-232
Product Weight	3.6 LBS Product Weight (1.6 kg)
Data Logging	Yes
ECCN Number	EAR99
Calibration Included	NIST Calibration
Country of Origin	Taiwan
