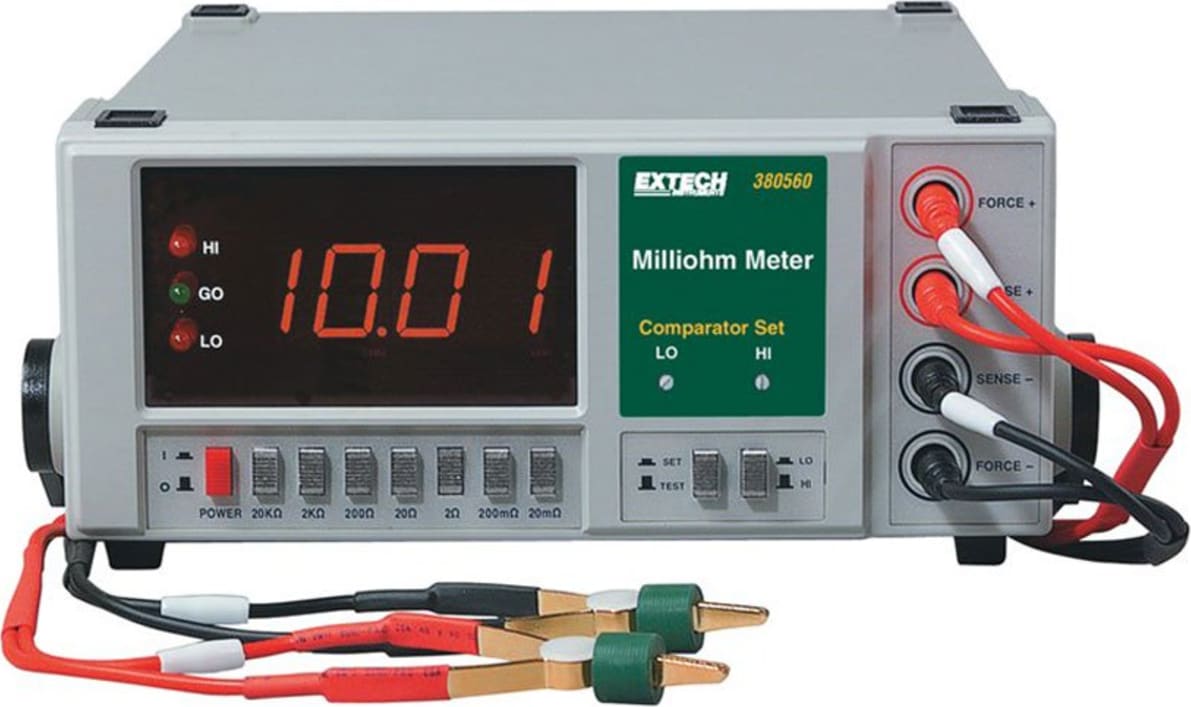

Extech 380560 - High Resolution Precision Milliohm Meter (110VAC)

Name: Extech 380560 - High Resolution Precision Milliohm Meter (110VAC)
Brand: Extech
SKU: Extech380560
Price: 488.94 USD
Availability: InStock
Rating: 4.50 (2 reviews)

4.5 (2 Reviews) | UPC: 793950380567 | Model: Extech 380560

Compare

Milliohm Meter 110 VAC

7 ranges for wide low resistance measurements
High resolution to 0.01mOhm
1999 count display with 0.8" digits
4-wire test cable with Kelvin clip connectors
Automatic zero
Built-in comparator for Hi/Lo/Go resistance testing or selection
Limited Two Years Warranty

View Product Details

List Price: $549.00

Your Price: $488.94

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Extech 380560 Milliohm Meter 110 VAC	Extech 380562 Milliohm Meter 220 VAC	Extech 380560-NIST Milliohm Meter w/NIST, 380560- <span style="color:gray;">PLEASE N ...
Price
In Stock
Style (Milli-Ohmmeter)	Bench	Bench	Bench
Line Power or Battery power	Line Power	Line Power	Line Power
Minimum Resistance	0.01 m Ohms (0.00001 Ohms)	0.01 m Ohms (0.00001 Ohms)	0.01 m Ohms (0.00001 Ohms)
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Extech 380560 Accessories

Choose a Category

Misc Test Leads

for the Extech 380560

Extech 380465 Test Leads For 380460

Catalog: 380465

(3)

In Stock!

Add to Cart

Extech 380560

Resistance testing or selection
High resolution to 0.01m
Built-in comparator for Hi/Lo/Go
1999 count display with 0.8" digits
5V test voltage

High Resolution Precision Milliohm Meter (110VAC)

Benchtop meter provides resolution down to 0.01mΩ

The 380560 benchtop meter provides resolution down to 0.01mΩ using 4-wire Kelvin clip test leads. Featuring 7 ranges for wide low resistance measurements, 1999 count display with 0.8" digits, automatic zero function. Built-in comparator for Hi/Lo/Go resistance testing or selection.

General Specification
---	Range	Resolution	Current	Accuracy (%rdg)
Resistance	20m	0.01m	1A	±(0.2% + 6d)
	200m	0.1m	1A	±(0.2% + 4d)
	2	0.001	100mA	±(0.2% + 4d)
	20	0.01	10mA	±(0.2% + 4d)
	200	0.1	1mA	±(0.2% + 4d)
	20k	0.001k	100μA	±(0.2% + 4d)
	2k	0.1k	10μA	±(0.2% + 4d)
Power	110VAC, 60Hz or 220VAC 50Hz
Dimensions/Weight	11 x 8.3 x 3.5" (280 x 210 x 90mm)/ 4.85lb (2.2kg)

Tech Specs

Micro / Milli / Meg Ohmmeters/Milli-Ohmmeter Template
Style (Milli-Ohmmeter)	Bench
Line Power or Battery power	Line Power
Minimum Resistance	0.01 m Ohms (0.00001 Ohms)
Maximum Resistance	20 K Ohms (20000 Ohms)
Max Resolution (Ohms)	0.01 m Ohms (0.00001 Ohms)
Variable Test Current	Yes
Maximum Current	1 A
Minimum Current	10 uA
Selectable Ranges	Yes
Alarm	No
Comparator Function	Yes
Digits Display	6
Kelvin Four-Terminal Measurement	Yes
Test Equipment General Attributes
Unique Features	7 ranges for wide 20.00mO to 20.00kO low resistance measurements High resolution to 0.01mO 1999 count display with large 0.8" digits 4-wire test cable with Kelvin clip connectors Automatic zero Built-in comparator for Hi/Lo/Go resistance testing or selection Complete with 4-wire cables with Kelvin clip connectors and power cord
Warranty	2 YEARS
Warranty Details	Limited Two Years Warranty
Safety Approval	CE
Product Weight	4.85 LBS Product Weight 2.2kg
Product Height	3.5 IN
Product Length	11 IN Product Length 280 x 210 x 90mm
Product Width	8.3 IN
Data Logging	No
HTS/Schedule B Number	9030.33.3400
ECCN Number	EAR99
Calibration Included	None
Power Supply Voltage	120V 50/60 Hz Power Supply Voltage 110VAC, 60Hz
Country of Origin	Taiwan
Shipping Height	6.20 IN
Shipping Length	14.50 IN
Shipping Width	11.20 IN

4.5

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying all 2 reviews

Most Helpful First | Newest First

Recommend to a Friend

Something new

4.0

I was asked to check one of these out by another department. Turns out they plugged the leads in wrong. So I got to play with it, and I'm impressed. Very good resolution, wide range of scales, and seemed pretty accurate. For the price this is a pretty good value.

Allan Knox on May 29, 2024

Recommend to a Friend

Great milliohm meter!

5.0

very good meter. large display and have different ranges to measure in milliohm.

on Sep 01, 2022
