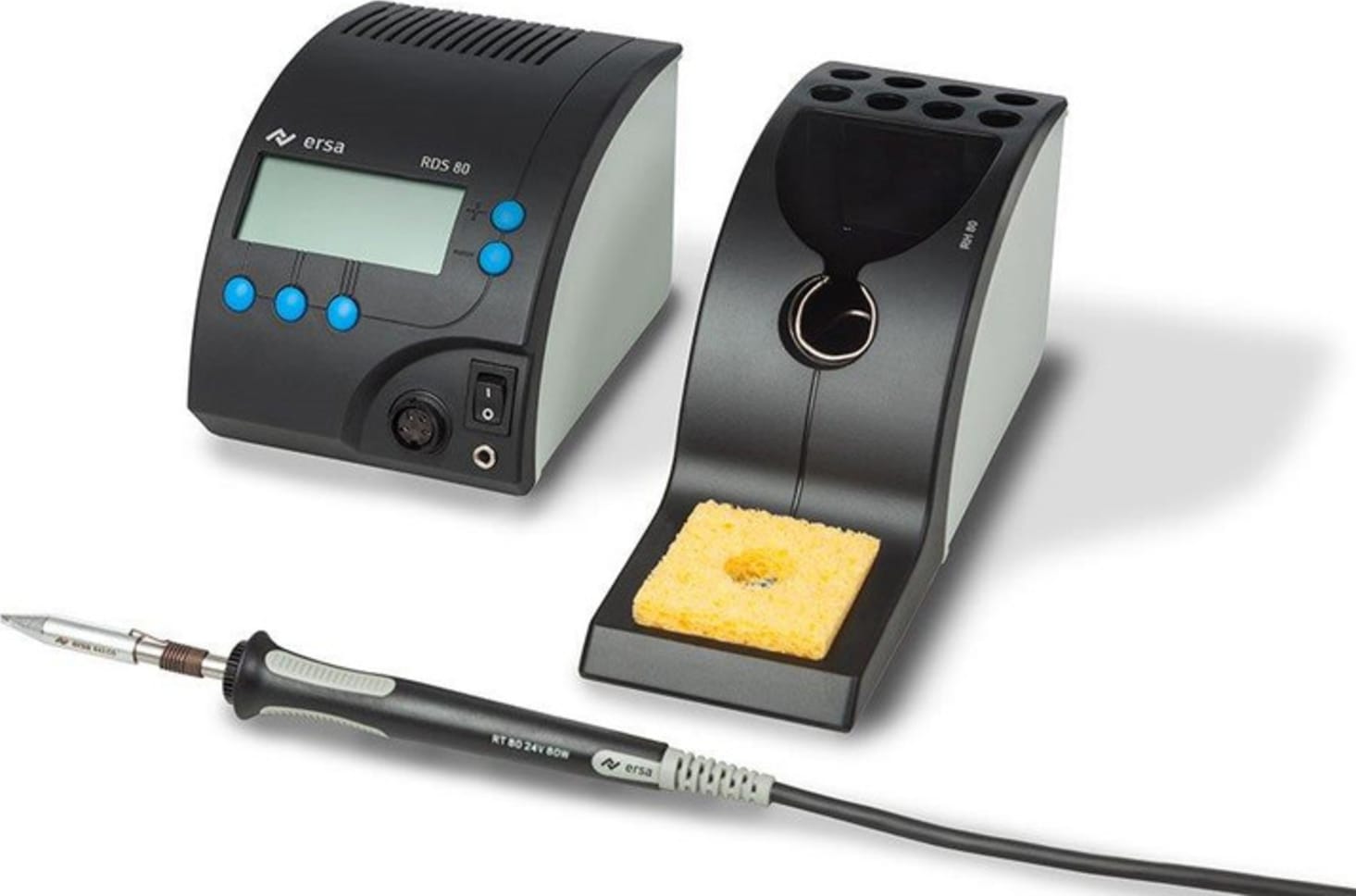

Digital Soldering Station with RT80 Iron
The Ersa RDS 80 digital soldering station with the proven the Ersa RESISTRONIC temperature control provides 80 W heating power. The ceramic PTC heating element (positive temperature coefficient) acts as the temperature sensor in this control system and ensures extremely fast heating thanks to the high initial output. High heating power and the large selection of soldering tips allow a very wide range of applications. The heating system with the internally heated soldering tips has a high thermal efficiency.
The redesigned ergonomic handle, the housing design and the large, digital multifunctional display do not leave much to be desired.
Besides the arbitrary temperature selection between 150 °C and 450 °C, three fixed temperatures or two fixed temperatures and one standby temperature can be programmed.
In addition to a power bar graph display the station also has a calibrating and power-off feature. The potential equalization socket (with an integrated 220 kΩ resistor) allows the soldering tip to be equalized with the workplace potential.
The RT 80 soldering iron has a sprayed-on, flexible PVC connecting cable. For tip exchange, Ersa recommends to use the tip exchanger 3ZT00164.
Compatible tips
The RTS 80 is compatible with the 832 and 842 series of soldering tips. These can be viewed by clicking the links below.
