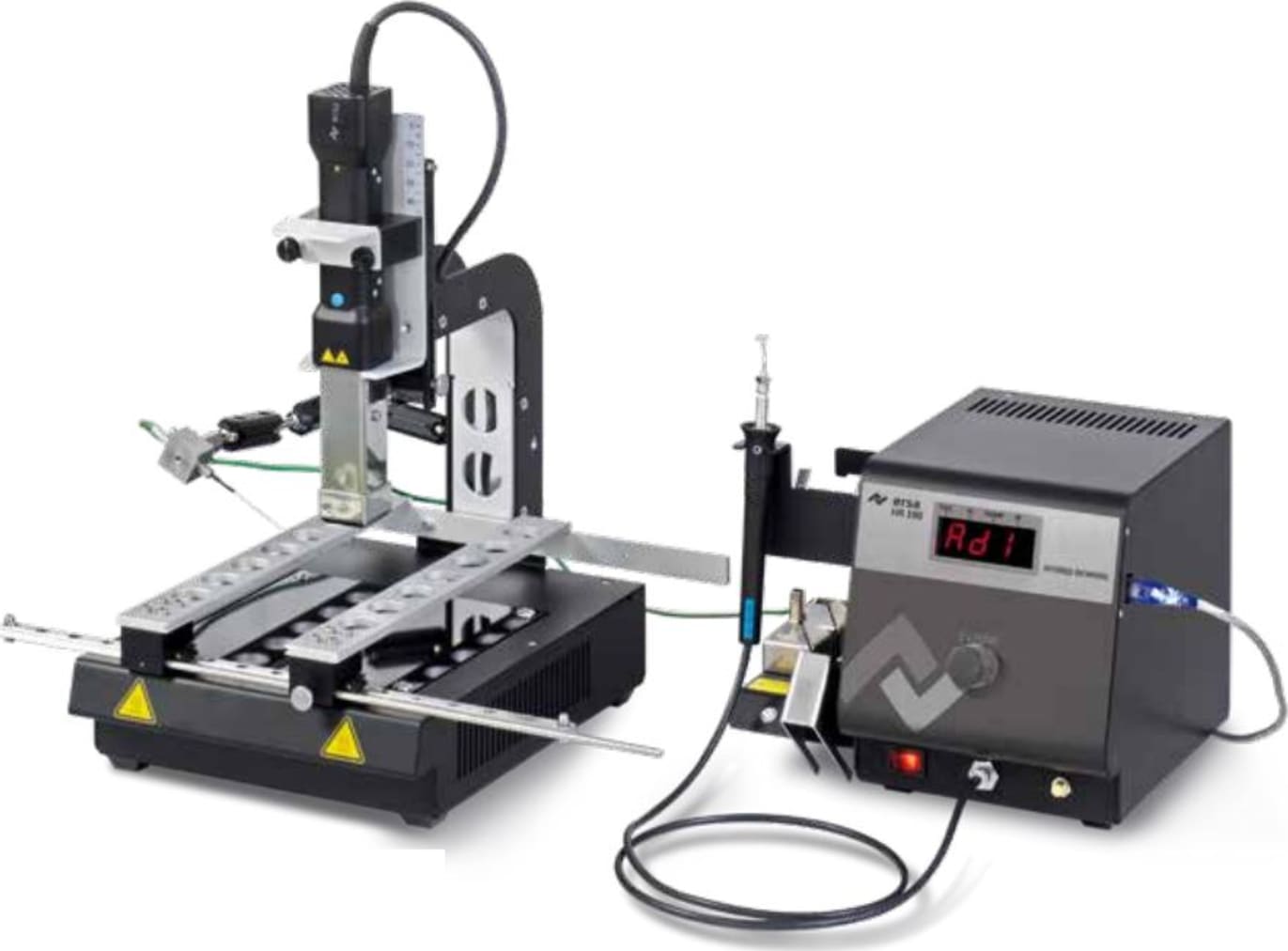

Hybrid Rework System with Heating Plate
The HR100 uses Ersa’s revolutionary and patented hybrid rework technology for safe removal and replacement of small SMDs. Safe, medium wave IR radiation combined with a gentle hot-air stream guarantees optimal energy transfer to the component.
The HYBRID TOOL delivers smooth and homogeneous heat to components. Interchangeable hybrid adapters direct up to 200W of targeted hybrid heat to the component - and adjacent areas are protected. The user-friendly operation allows for even non-experienced operators to handle the HR100 safely and quickly.
The handle of Ersa’s ergonomically designed HYBRID TOOL contains a positioning laser which helps the operator focus the heat precisely throughout the entire process. Via the USB 2.0 port, the HR 100 can be connected to Ersa’s top of the line and well-established IR Soft rework software.
Features include:
- HYBRID TOOL with 200W heating element
- Low-noise rework blower (below 40db)
- Temperature recording via AccuTC thermocouple (K-type)
- PC interface via USB port
- HYBRID TOOL holder with height adjustment
- 800 W high-performance IR heating plate with glass cover
- Board holder (250 x 290 mm)
- Control via rotary push button and IR Soft
