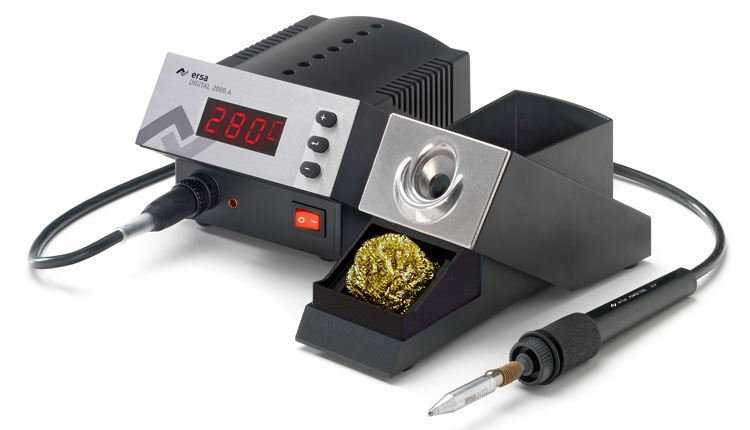

The Ersa DIGITAL 2000 A is a top-class microprocessor- controlled soldering station distinguished by its flexibility and multi-functionality. It is antistatic according to the MIL- SPEC/ESA standard and designed for industrial use where high quality is demanded and for repairs and laboratory applications.

The station can alternatively be operated with various soldering and desoldering tools. Besides the POWER TOOL and TECH TOOL universal soldering irons, the MICRO TOOL micro-soldering iron, the CHIP TOOL desoldering tweezers and the X-TOOL desoldering iron can be connected.


The tools are automatically detected when inserted, and the control characteristics are adapted accordingly. The soldering and desoldering tips are then always connected with high impedance to the front-installed potential equalization socket.

The station is easy to operate and user-friendly. The desired temperatures, the unit of temperature (°C/°F), the standby time of 0 to 60 minutes, a tip offset and calibration feature and a three-character password-controlled lock can all be set with just three buttons and a simple menu guide. The energy feature allows you to influence the heat-up and reheating characteristics.

In addition, the soldering station has 4 programs. Each program can be separately and differently configured with the aforementioned functions.

A fixed program is assigned to each soldering and desoldering tool. The station automatically changes the program in case of a tool change.

If only one tool is used, then all programs can be used with this tool. A 5th program slot contains a temperature measuring function. For this purpose the temperature sensor DIG207 is required.

The calibration feature allows the actual soldering tip temperature to be precisely adjusted to the temperature shown in the LED display. For this purpose a suitable soldering tip temperature measuring device, such as the Ersa DTM series (see page 33), is required.

The Ersa DIGITAL 2000 A soldering station regulates the temperature through a digital PID algorithm, optimized for very precise and fast temperature control.
All connectable soldering and desoldering devices have enormous power reserves thanks to the PTC heating elements located inside the tips.

All soldering and desoldering tools are operated at the low voltage of 24 V and have a highly flexible, heat-resistant and antistatic connecting cable.

The Digital 2000A is compatible with several handpieces including the following:

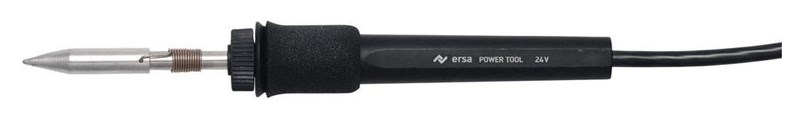

• Power Tool - 105 watts
• Tech Tool - 70 watts
• Micro Tool - 30 watts
• Chip Tool - 2 x 30 watts
• X-Tool - 120 watts
