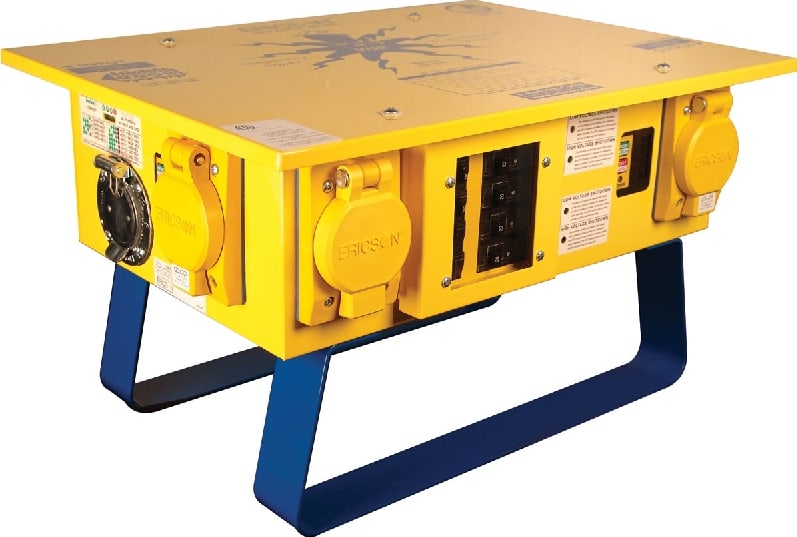

Ericson 1067 - Oscar Temporary Power Distribution Center

Name: Ericson 1067 - Oscar Temporary Power Distribution Center
Brand: Ericson
SKU: Ericson1067
Price: 1198.27 USD
Availability: InStock

0 reviews | UPC: 782862491805 | Model: Ericson 1067

Compare

OSCAR 1067 50A w/GFCI /5-20/L6-30 and FLIPS

Typical Applications Include:
- Industrial, commercial and residential construction projects
- General maintenance and repair work (MRO) in industrial facilities
- Temporary power distribution at carnivals, circuses, fairs & similar events
- Convention centers to distribute power for exhibitions & maintenance
- Photo studios to distribute power to flash & other photographic equipment

View Product Details

List Price: $1,331.41

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Temporary Power Distribution

for the Ericson 1067

Ericson 63ASO CORDSET 6/3-8/1 50A 125/250V 25' SO

Catalog: 63ASO

(0)

In Stock! Contact us for price

Call Us

Ericson 63BSO CORDSET #6/3-8/1 SOW 50' 50A 125/250 V

Catalog: 63BSO

(0)

In Stock!

Add to Cart

Ericson 63DSO CORDSET #6/3-8/1 100' SOW 50A

Catalog: 63DSO

(0)

In Stock!

Add to Cart

Ericson 63PGTLSO CORDSET 6/3-8/1 SOW 6'' 50A 125/250 V

Catalog: 63PGTLSO

(0)

In Stock!

Add to Cart

Ericson 63PGTLSO-100 CORDSET 6/3-8/1 100' SOW 50A w/CONN ONLY

Catalog: 63PGTLSO-100

(0)

In Stock!

Add to Cart

Ericson 63PGTLSO-50 CORDSET 6/3-8/1 SOW 50' 50A CONN ONLY

Catalog: 63PGTLSO-50

(0)

In Stock!

Add to Cart

Ericson 63YSTW Y 50A #6/3-8/1 STW w/CS P and C 2'' OAL

Catalog: 63YSTW

(0)

In Stock!

Add to Cart

Ericson SR50 50A PWR RECPT w/METAL W/P BOX 21" LEADS

Catalog: SR50

(0)

In Stock!

Add to Cart

Ericson 1067

Industrial, commercial and residential construction projects
General maintenance and repair work (MRO) in industrial facilities
Temporary power distribution at carnivals, circuses, fairs & similar events
Convention centers to distribute power for exhibitions & maintenance
Photo studios to distribute power to flash & other photographic equipment

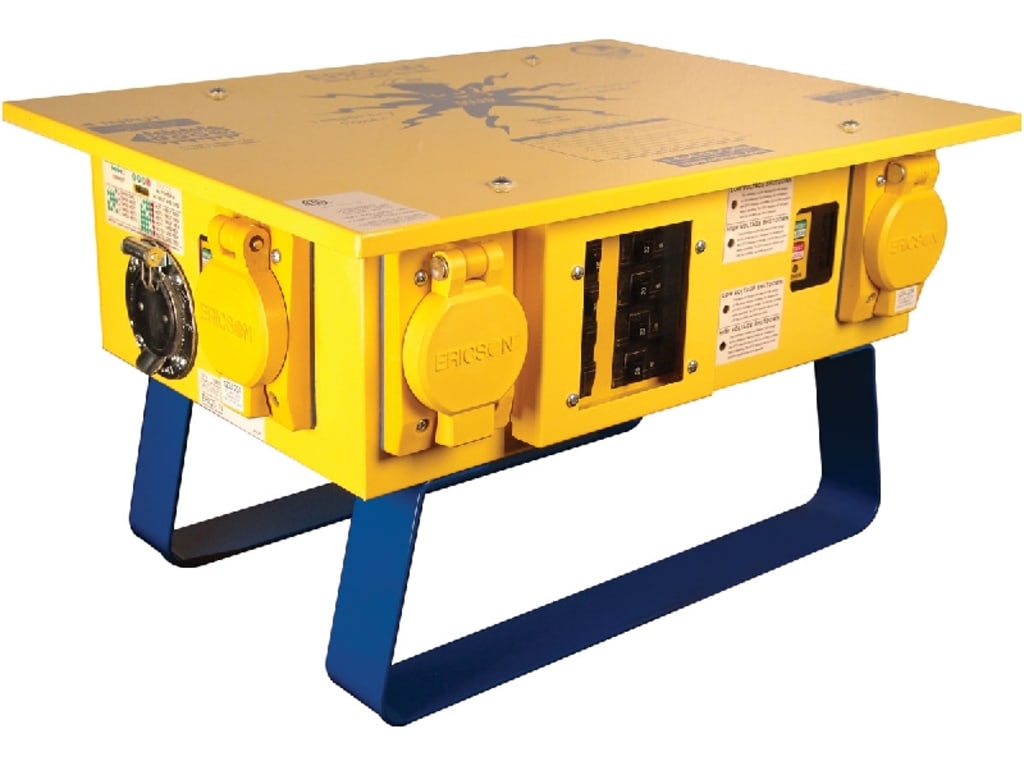

Oscar Temporary Power Distribution Center

Ericson Manufacturing Company now offers a wide variety of temporary power distribution centers. These products, represented by Oscar the Octopus, allow the user to centralize and distribute temporary power safely. The product line consists of standard configurations, which can be customized to suit your needs. ETL is listed to UL 1640 Standard for Safety. These safeguards provide protection for you and your equipment.

Catalog Number	1067	1067-A	1067-B	1067-C
Listings	ETL listed to UL 1640	ETL listed to UL 1640	ETL listed to UL 1640	ETL Listed to UL 1640
Electrical Rating	50A; 125/250V; 6250W/12500W	50A; 125/250V; 6250W/12500W	50A; 125/250V; 6250W/12500W	50A; 125/250V; 6250W/12500W

Enclosure	Powder Coated	Powder Coated	Powder Coated	Powder Coated
Environmental/NEMA Rating	NEMA 3R	NEMA 3R	NEMA 3R	NEMA 3R
Input Power Diagnostic Module (IPDM)	Yes	Yes	Yes	Yes
Voltage Monitor Module (VMM)	Yes	Yes	Yes	Yes

Receptacles
A Type	5-20 (20A, 125V)	L5-20 (20A, 125V)	5-20 (20A, 125V)	L5-20 (20A, 125V)
Qty.	6	6	6	6
GFCI Protection	Yes	Yes	Yes	Yes
Overload Protection	Yes	Yes	Yes	Yes
Flip Covers	Yes	Yes	Yes	Yes

B Type	L6-30 (30A, 250V)	L6-30 (30A, 250V)	L6-30 (30A, 250V)	L6-30 (30A, 250V)
Qty	1	1	1	1
GFCI Protection	No	No	Yes	Yes
Overload Protection	Yes	Yes	Yes	Yes
Flip Covers	Yes	Yes	Yes	Yes

Power Inlet	CS6375 (50A,125/250V)	CS6375 (50A,125/250V)	CS6375 (50A,125/250V)	CS6375 (50A,125/250V)
Flip Cover	Yes	Yes	Yes	Yes

Power Outlet	CS6369 (50A,125/250V)	CS6369 (50A,125/250V)	CS6369 (50A,125/250V)	CS6369 (50A,125/250V
Flip Cover	Yes	Yes	Yes	Yes
Weight (lbs.)	37	37	37	37
Dimensions	22.5"L x 16.25"W	22.5"L x 16.25"W	22.5"L x 16.25"W	22.5"L x 16.25"W
	11.75"H	11.75"H	11.75"H	11.75"H

Tech Specs

Test Equipment General Attributes
Product Weight	37 LBS
Product Height	11.75 IN
Product Length	22.5 IN
Product Width	16.25 IN
Shipping Weight	42.6 LBS
