Ericson 94P4S06-09 Discontinued Products

Name: Ericson 94P4S06-09 Discontinued Products
Brand: Ericson
SKU: Ericson94P4S06-09
Price: 27.57 USD
Availability: InStock

0 reviews | Model: Ericson 94P4S06-09

Compare

MIC, 4 pole dual key str. male/90d fem 6'

UL Recognized and CSA Certified
2-pole through 6-pole devices
EMI/RFI shielded models available
#22 AWG chemical resistant PVC jacketed cable
Dual keyway standard cordset lengths of 6’, 12’, and 20’
Single keyway standard cordset lengths of 2meters, 4m and 5m Polyurethane inserts
Anodized Aluminum coupling nuts and receptacle shells
Single keyway plugs, sockets and molded cordsets also available with chemical resistant plastic nuts
NEMA Type 6P and IP67 and IP68 environmental ratings Anti-Vibration nuts ensure a secure connection
Gold-Plated contacts

View Product Details

List Price: $30.63

In Stock:

View Payment Options

Recommended for you

MICRO-SYNC™ Dual Keyway Plugs, Sockets, Receptacles & Molded Cordsets
MICRO-SYNC™ Single Keyway Plugs, Sockets, Receptacles & Molded Cordsets
Easy to use charts and drawings simplify the selection/specification process making it quick and user friendly
Comprehensive technical reference information including wiring diagrams and dimensional drawings

AC Metal Plugs, Sockets & Receptacles

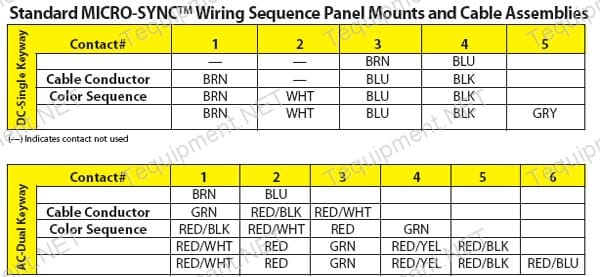

Poles and Rating	Wiring Code	Overall Length (ft./m)	Male Straight	Female Straight	Male Recep. 12 in. Leads	Female Recep. 12 in. Leads
2 3A 300V	1-Brown 2-Blue	6 ft./1.83 m 12 ft./3.66m 20 ft./6.10m	92P06 92P12 92P20	92S06 92S12 92S20	9R2P	9R2S
3 3A 300V	1-Green 2-Red-Blk.Tr. 3-Red-White Tr.	6 ft./1.83m 12 ft./3.66m 20 ft./6.10m	93P06 93P12 93P20	93S06 93S12 93S20	9R3P	9R3S
4 3A 300V	1-Red-Blk.Tr. 2-Red-White Tr. 3-Red 4-Green	6 ft./1.83m 12 ft./3.66m 20 ft./6.10m	94P06 94P12 94P20	94S06 94S12 94S20	9R4P	9R4S
5 3A 300V	1-Red-White Tr. 2-Red 3-Green 4-Red-Yellow Tr. 5-Red-Black Tr.	6 ft./1.83m 12 ft./3.66m 20 ft./6.10m	95P06 95P12 95P20	95S06 95S12 95S20	9R5P	9R5S
6 3A 300V	1-Red-White Tr. 2-Red 3-Green 4-Red-Yellow Tr. 5-Red-Black Tr. 6-Red-Blue Tr.	6 ft./1.83m 12 ft./3.66m 20 ft./6.10m	96P06 96P12 96P20	96S06 96S12 96S20	9R6P	9R6S

AC Metal Cable Assemblies
Poles and Rating	Wiring Code	Overall Length (ft./m)	Male/Female Straight	Male/Female Straight to 90°	Male/Female 90°	Female/Male Straight to 90°
2 3A 300V	1-Brown 2-Blue	6 ft./1.83 m 12 ft./3.66m 20 ft./6.10m	92P2S06 92P2S12 92P2S20	92P2S06-09 92P2S12-09 92P2S20-09	92P2S06-99 92P2S12-99 92P2S20-99	92S2P06-09 92S2P12-09 92S2P20-09
3 3A 300V	1-Green 2-Red-Blk.Tr. 3-Red-White Tr.	6 ft./1.83m 12 ft./3.66m 20 ft./6.10m	93P3S06 93P3S12 93P3S20	93P3S06-09 93P3S12-09 93P3S20-09	93PS06-99 93P3S12-99 93P3S20-99	93S3P06-09 93S3P12-09 93S3P20-09
4 3A 300V	1-Red-Blk.Tr. 2-Red-White Tr. 3-Red 4-Green	6 ft./1.83m 12 ft./3.66m 20 ft./6.10m	92P2S06B 92P2S12B 92P2S20B	94P4S06-09 94P4S12-09 94P4S20-09	94P4S06-99 94P4S12-99 94S4P20-99	94S4P06-09 94S4P12-09 94S4P20-09
5 3A 300V	1-Red-White Tr. 2-Red 3-Green 4-Red-Yellow Tr. 5-Red-Black Tr.	6 ft./1.83m 12 ft./3.66m 20 ft./6.10m	93P3S06 93P3S12 93P3S20	95P5S06-09 95P5S12-09 95P5S20-09	95P5S06-99 95P5S12-99 95P5S20-99	95S5P06-09 95S5P12-09 95S5P20-09
6 3A 300V	1-Red-White Tr. 2-Red 3-Green 4-Red-Yellow Tr. 5-Red-Black Tr. 6-Red-Blue Tr.	6 ft./1.83m 12 ft./3.66m 20 ft./6.10m	96P6S06 96P6S12 96P6S20	96P6S06-09 96P6S12-09 96P6S20-09	96P6S06-99 96P6S12-99 96P6S20-99	96S6P06-09 96S6P12-09 96S6P20-09

Y-Splitters & Y-Connectors
			Y-Connector		Y-Splitter
Poles and Rating	Wiring Code	Overall Length (ft./m)	Male/Female Female	Female/Female Female	Male/Female Female	Female/Female Female
2 3A 300V	1-Brown 2-Blue	12”	9YC2P2S2S	9YC2S2S2S	9Y2P2S2S01	9Y2S2S2S01
3 3A 300V	1-Green 2-Red-Blk.Tr. 3-Red-White Tr.	12”	9YC3P3S3S	9YC3S3S3S	9Y3P3S3S01	9Y3S3S3S01
4 3A 300V	1-Red-Blk.Tr. 2-Red-White Tr. 3-Red 4-Green	12”	9YC4P4S4S	9YC4S4S4S	9Y4P4S4S01	9Y4S4S4S01
5 3A 300V	1-Red-White Tr. 2-Red 3-Green 4-Red-Yellow Tr. 5-Red-Black Tr.	12”	9YC5P5S5S	9YC5S5S5S	9Y5P5S5S01	9Y5S5S5S01
6 3A 300V	1-Red-White Tr. 2-Red 3-Green 4-Red-Yellow Tr. 5-Red-Black Tr. 6-Red-Blue Tr.	12”	9YC6P6S6S	9YC6S6S6S	9Y6P6S6S01	9Y6S6S6S01

DC Metal Plugs, Sockets & Receptacles
Poles and Rating	Wiring Code	Overall Length (ft./m)	Male Straight	Female Straight	Male Recep. .3m Leads	Female Recep. .3m Leads
3 3A 300V	1-Brown 2-Not Used. 3-Blue 4-Black	6.6 ft./2m 13.1 ft./4m 16.4 ft./5m	33P02 33P04 33P05	33S02 33S04 33S05	3R3P	3R3S
4 3A 300V	1-Brown 2-White 3-Blue 4-Black	6.6 ft./2m 13.1 ft./4m 16.4 ft./5m	34P02 34P04 34P05	34S02 34S04 34S05	3R4P	3R4S
5 3A 300V	1-Brown 2-White 3-Blue 4-Black 5-Gray	6.6 ft./2m 13.1 ft./4m 16.4 ft./5m	35P02 35P04 35P05	35S02 35S04 35S05	3R5P	3R5S

DC Metal Cable Assemblies
Poles and Rating	Wiring Code	Overall Length (ft./m)	Male/Female Straight	Male/Female Straight to 90°	Male/Female 90°	Female/Male Straight to 90°
3 3A 300V	1-Brown 2-Not Used 3-Blue 4-Black	6.6 ft./2m 13.1 ft./4m 16.4 ft./5m	33P3S02 33P3S04 33P3S05	33P3S02-09 33P3S04-09 33P3S05-09	33P3S02-99 33P3S04-99 33P3S05-99	33S3P02-09 33S3P04-09 33S3P05-09
4 3A 300V	1-Brown 2-White 3-Blue 4-Black	6.6 ft./2m 13.1 ft./4m 16.4 ft./5m	34P4S02 34P4S04 34P4S05	34P4S02-09 34P4S04-09 34P4S05-09	34P4S02-99 34P4S04-99 34P4S05-99	34S4P02-09 34S4P04-09 34S4P05-09
5 3A 300V	1-Brown 2-White 3-Blue 4-Black 5-Gray	6.6 ft./2m 13.1 ft./4m 16.4 ft./5m	35P5S02 35P5S04 35P5S05	35P5S02-09 35P5S04-09 35P5S05-09	35P5S02-99 35P5S04-99 35P5S05-99	35S5P02-09 35S5P04-09 35S5P05-09

DC Plugs, Sockets & Receptacles, Non-Metallic Nut
Poles and Rating	Wiring Code	Overall Length (ft./m)	Male Straight	Female Straight	Female 90°	Male Recep. .3m Leads
3 3A 300V	1-Brown 2-Not Used. 3-Blue 4-Black	6.6 ft./2m 13.1 ft./4m 16.4 ft./5m	23P02 23P04 23P05	23S02 23S04 23S05	23S02-90 23S04-90 23S05-90	2R3P
4 3A 300V	1-Brown 2-White 3-Blue 4-Black	6.6 ft./2m 13.1 ft./4m 16.4 ft./5m	24P02 24P04 24P05	24S02 24S04 24S05	24S02-90 24S04-90 24S05-90	2R4P
5 3A 300V	1-Brown 2-White 3-Blue 4-Black 5-Gray	6.6 ft./2m 13.1 ft./4m 16.4 ft./5m	25P02 25P04 25P05	25S02 25S04 25S05	25S02-90 25S04-90 25S05-90	2R5P

DC Cable Assemblies with Non-Metallic Nut
Poles and Rating	Wiring Code	Overall Length (ft./m)	Male/Female Straight	Male/Female Straight to 90°
3 3A 300V	1-Brown 2-Not Used 3-Blue 4-Black	6.6 ft./2m 13.1 ft./4m 16.4 ft./5m	23P3S02 23P3S04 23P3S05	23P3S02-09 23P3S04-09 23P3S05-09
4 3A 300V	1-Brown 2-White 3-Blue 4-Black	6.6 ft./2m 13.1 ft./4m 16.4 ft./5m	24P4S02 24P4S04 24P4S05	24P4S02-09 24P4S04-09 24P4S05-09
5 3A 300V	1-Brown 2-White 3-Blue 4-Black 5-Gray	6.6 ft./2m 13.1 ft./4m 16.4 ft./5m	25P5S02 25P5S04 25P5S05	25P5S02-09 25P5S04-09 25P5S05-09

Specifications

ELECTRICAL RATING
VOLTAGE	Metal / Plastic - 300V
CABLE ASSEMBLIES
COUPLING NUT	Metal - Anodized Aluminum Plastic - Nylon
CONTACTS	Metal - Copper Alloy Plastic - Gold - Plated
INSERT	Metal - Nylon Plastic - Nylon
MOLDED HEADS	Metal - Polyurethane Plastic - Polyurethane
O-RINGS	Metal - N/A Plastic - Viton
DUAL KEYWAY CABLE	Metal / Plastic - 22 AWM:PVC insulated, fine stranded copper conductors, yellow oil resistant PVC jacketed, 300V, ST, 105ºC. UL Recognized, CSA Certified
SINGLE KEYWAY CABLE	Metal / Plastic - 22 AWM: PVC insulated, stranded copper conductors, yellow PVC jacketed, 300V, 90ºC. UL Recognized, CSA Certified
PANEL MOUNT ASSEMBLIES
SHELLS	Metal - Anodized Aluminum Plastic - Anodized Aluminum
CONTACTS	Metal - Copper Alloy Plastic - Gold - Plated
INSERTS	Metal - Nylon Plastic - N/A
WIRE	Metal / Plastic - 22 AWG PVC insulated, 300V UL Recognized, CSA Certified
ENVIRONMENTAL
PROTECTION	Metal / Plastic - NEMA 6P, IP 67 & IP 68
OPERATING AMBIENT	Metal / Plastic - -20° to 80°C
CERTIFICATIONS
UL	Metal / Plastic - UL Recognized
cUL	Metal / Plastic - Canadian UL Recognized
Standard Panel Mounts
22AWG, 80C, 300V, PVC Hookup Wire
Polyurethane Insert
Lead Length 12 In.
Epoxy Filled
Standard AC & DC Metal
22 AWG, PVC Yellow Jacketed Cable
Nylon Insert (Black for AC,Yellow for DC)
Polyurethane,Yellow Overmold
Length 36, 72, and 144 In. for AC 1, 2, and 4 Meters for DC
Standard DC Plastic
22 AWM, PVC Yellow Jacketed Cable
Nylon, Black Insert
Polyurethane, Black Overmold
Length 1, 2 and 4 Meters
Y Splitter Assemblies
22 AWG, Polyurethane Yellow Jacketed Cable
Polyurethane Insert
Polyurethane Overmold
