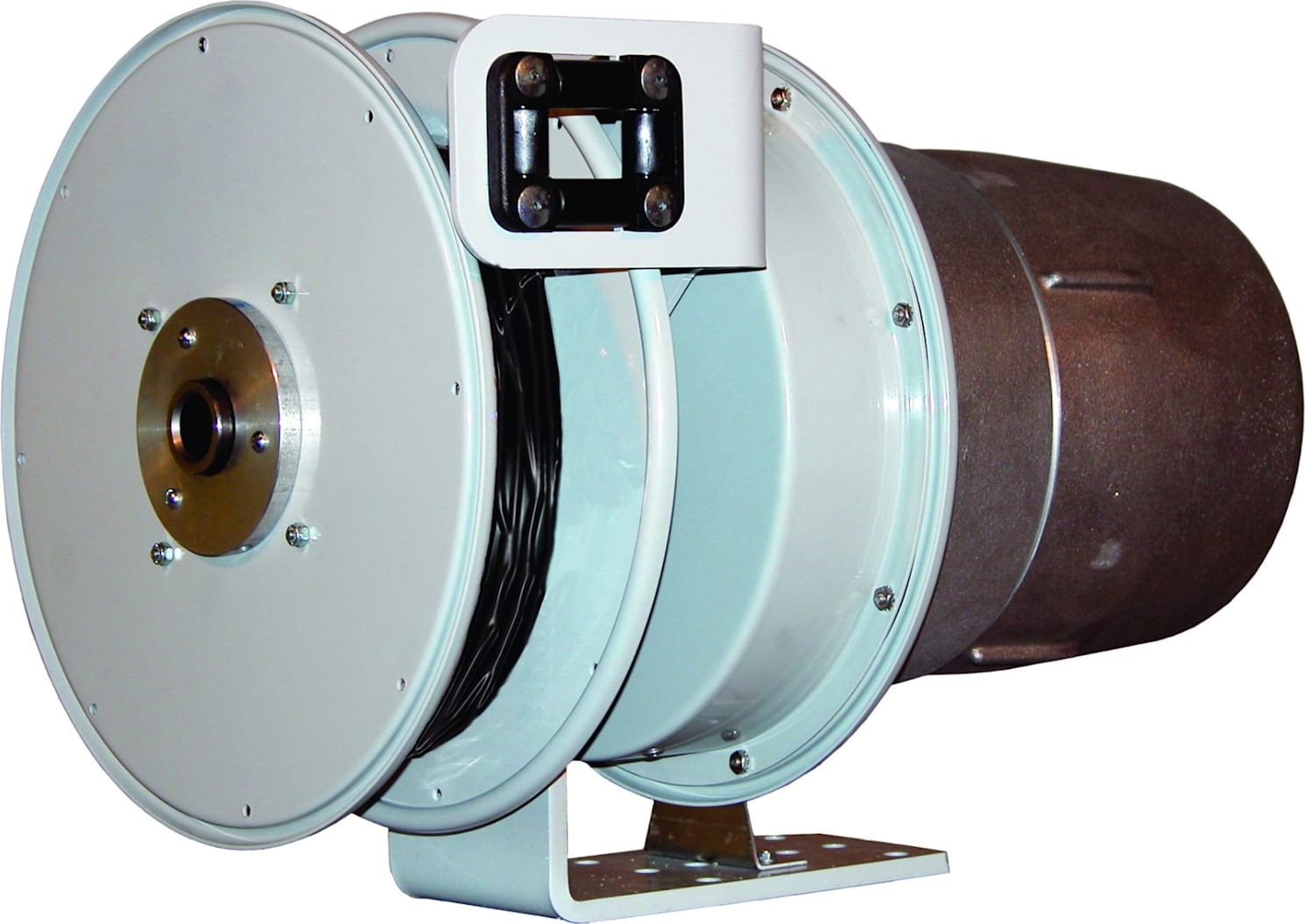

Ericson 8143-100 - Hazardous Location Cable Reel XP Grade, Retractable 100ft

• Reel XP Grade
• Retractable 100 FT of 14/3 SOW Cable w/ Blunt Cable End
• Primary Feeder = Coiled Wire LEADS @ 1-2 FT

Other Standard Features:

• Flange Size: 14“ diameter
• Construction:
  • Rugged fabricated steel with gray epoxy finish and cast aluminum construction
  • Formed steel stand with multiple mounting holes
  • 4-roller cable guide adjustable to 1 of 12 positions
  • Ratchet can be engaged for positive lock or disengaged for constant tension
  • Safety chain hole provided for overhead mounting
  • Adjustable ball stop included
  • Grounded slip ring assembly for safety
  • Threaded junction box and slip ring enclosure
• Termination: 6 ft. feeder cord
• Cable Type: Installed with type SOOW 600V cable
• Environmental:
  • Class I Division 1, Groups C & D (flammable gases or vapors)
  • Class II Division 1, Groups E, F, & G (combustible dusts)
  • Class III Division 1 (easily-ignitable fibers or flyings)
  • Class I Zone 1: AEx d IIB, EX d IIB
  • Conforms to NEMA 9 and NEMA 4 (IP56) standards
  • Select models UL listed
• Electrical Ratings: Max rating of Slip Ring = 35A, 600V
• Options: Stretch or retrieve application, LED XP hand lamp attachment, flop-over guide kit, or pivot base

Applications:

• Petroleum facilities
• Waste water treatment plants
• Grain storage and handling silos
• Paint booths
• Underground mines
• Chemical plants

Reel Parts and Dimensions (inches):

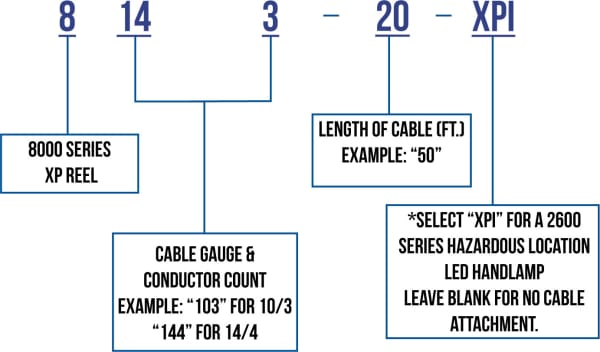

Reel Selection:
