Ericson 812S20-90 Discontinued Products

Name: Ericson 812S20-90 Discontinued Products
Brand: Ericson
SKU: Ericson812S20-90
Price: 117.84 USD
Availability: InStock

0 reviews | Model: Ericson 812S20-90

Compare

MIN, 12 pole fem plug 90d. 20'

UL Recognized and CSA Certified
2-pole through 12-pole devices
#16 AWG chemical resistant PVC jacketed cable
Standard cordset lengths of 3’, 6’, 12’, 15’ and 20’
Polyurethane inserts
Anodized Aluminum coupling nuts and receptacle shells
NEMA Type 6P and IP67 and IP68 environmental ratings
Gold-Plated contacts

View Product Details

List Price: $130.93

In Stock:

View Payment Options

Recommended for you

MINI-SYNC Plugs, Sockets, Receptacles and Molded Cordsets
MINI-SYNC Specialty Devices such as Y-Splitters, Dual-Taps, Tri-Taps and EMI/RFI Shielded Units
Easy to use charts and drawings simplify the selection/specification process making it quick and user friendly
Comprehensive technical reference information including wiring diagrams and dimensional drawings

Plugs, Sockets & Receptacles Devices with #16 AWG STO Cable

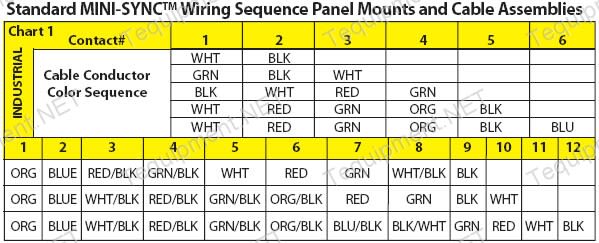

Poles and Rating	Wiring Code	Overall Length (ft./m)	Male Straight	Male 90°	Female Straight	Female 90°	Male Recep. 12 in. Leads	Female Recep. 12 in. Leads
2 13A 600V	1-White 2-Black	3 ft./0.91m 6 ft./1.83m 12 ft./3.66m 15 ft./4.57m 20 ft./6.10m	82P03 82P06 82P12 82P15 82P20	82P03-90 82P06-90 82P12-90 82P15-90 82P20-90	82S03 82S06 82S12 82S15 82S20	82S03-90 82S06-90 82S12-90 82S15-90 82S20-90	8R2P	8R2S
3 13A 600V	1-Green 2-Black 3-White	3 ft./0.91m 6 ft./1.83m 12 ft./3.66m 15 ft./4.57m 20 ft./6.10m	83P03 83P06 83P12 83P15 83P20	83P03-90 83P06-90 83P12-90 83P15-90 83P20-90	83S03 83S06 83S12 83S15 83S20	83S03-90 83S06-90 83S12-90 83S15-90 83S20-90	8R3P	8R2S
4 10A 600V	1-Black 2-White 3-Red 4-Green	3 ft./0.91m 6 ft./1.83m 12 ft./3.66m 15 ft./4.57m 20 ft./6.10m	84P03 84P06 84P12 84P15 84P20	84P03-90 84P06-90 84P12-90 84P15-90 84P20-90	84S03 84S06 84S12 84S15 84S20	84S03-90 84S06-90 84S12-90 84S15-90 84S20-90	8R4P	8R4S
5 8A 600V	1-White 2-Red 3-Green 4-Orng. 5-Black	3 ft./0.91m 6 ft./1.83m 12 ft./3.66m 15 ft./4.57m 20 ft./6.10m	85P03 85P06 85P12 85P15 85P20	85P03-90 85P06-90 85P12-90 85P15-90 85P20-90	85S03 85S06 85S12 85S15 85S20	85S03-90 85S06-90 85S12-90 85S15-90 85S20-90	8R5P	8R5S
6 8A 600V	1-White 2-Red 3-Green 4-Orng. 5-Black 6-Blue	3 ft./0.91m 6 ft./1.83m 12 ft./3.66m 15 ft./4.57m 20 ft./6.10m	86P03 86P06 86P12 86P15 86P20	86P03-90 86P06-90 86P12-90 86P15-90 86P20-90	86S03 86S06 86S12 86S15 86S20	86S03-90 86S06-90 86S12-90 86S15-90 86S20-90	8R6P	8R6S

Plugs, Sockets & Receptacles Devices with #16 AWG STO Cable
Poles and Rating	Wiring Code	Overall Length (ft./m)	Male Straight	Male 90°	Female Straight	Female 90°	Male Recep.	Female Recep.
9 7A 600V	1-Orange 2-Blue 3-Red-Blk.Tr. 4-Green-Blk.Tr. 5-White 6-Red 7-Green 8-White-Blk.Tr. 9-Black	3 ft./0.91m 6 ft./1.83m 12 ft./3.66m 15 ft./4.57m 20 ft./6.10m	89P03 89P06 89P12 89P15 89P20	89P03-90 89P06-90 89P12-90 89P15-90 89P20-90	89S03 89S06 89S12 89S15 89S20	89S03-90 89S06-90 89S12-90 89S15-90 89S20-90	8R9P	8R9S
10 7A 600V	1-Orange 2-Blue 3-White-Blk.Tr. 4-Red-Blk.Tr. 5-Green-Blk.Tr. 6-Orange-Blk.Tr. 7-Red 8-Green 9-Black 10-White	3 ft./0.91m 6 ft./1.83m 12 ft./3.66m 15 ft./4.57m 20 ft./6.10m	810P03 810P06 810P12 810P15 810P20	810P03-90 810P06-90 810P12-90 810P15-90 810P20-90	810S03 810S06 810S12 810S15 810S20	810S03-90 810S06-90 810S12-90 810S15-90 810S20-90	8R10P	8R10S
12 7A 600V	1-Orange 2-Blue 3-White-Blk.Tr. 4-Red-Blk.Tr. 5-Green-Blk.Tr. 6-Orange-Blk.Tr. 7-Blue-Blk.Tr. 8-Black-Wht.Tr. 9-Green 10-Red 11-White 12-Black	3 ft./0.91m Tr. 6 ft./1.83m 12 ft./3.66m 15 ft./4.57m 20 ft./6.10m	812P03 812P06 812P12 812P15 812P20	812P03-90 812P06-90 812P12-90 812P15-90 812P20-90	812S03 812S06 812S12 812S15 812S20	812S03-90 812S06-90 812S12-90 812S15-90 812S20-90	8R12P	8R12S

Cable Assemblies Devices with #16 AWG STO Cable
Poles and Rating	Wiring Code	Overall Length (ft./m)	Male/Female Straight	Male/Female Straight to 90°	Male/ Female 90°	Female/Male Straight to 90°
2 13A 600V	1-White 2-Black	3 ft./0.91m 6 ft./1.83m 12 ft./3.66m 15 ft./4.57m 20 ft./6.10m	82P2S03 82P2S06 82P2S12 82P2S15 82P2S20	82P2S03-09 82P2S06-09 82P2S12-09 82P2S15-09 82P2S20-09	82P2S03-99 82P2S06-99 82P2S12-99 82P2S15-99 82P2S20-99	82S2P03-09 82S2P06-09 82S2P12-09 82S2P15-09 82S2P20-09
3 13A 600V	1-Green 2-Black 3-White	3 ft./0.91m 6 ft./1.83m 12 ft./3.66m 15 ft./4.57m 20 ft./6.10m	83P3S03 83P3S06 83P3S12 83P3S15 83P3S20	83P3S03-09 83P3S06-09 83P3S12-09 83P3S15-09 83P3S20-09	83P3S03-99 83P3S06-99 83P3S12-99 83P3S15-99 83P3S20-99	83S3P03-09 83S3P06-09 83S3P12-09 83S3P15-09 83S3P20-09
4 10A 600V	1-Black 2-White 3-Red 4-Green	3 ft./0.91m 6 ft./1.83m 12 ft./3.66m 15 ft./4.57m 20 ft./6.10m	84P4S03 84P4S06 84P4S12 84P4S15 84P4S20	84P4S03-09 84P4S06-09 84P4S12-09 84P4S15-09 84P4S20-09	84P4S03-99 84P4S06-99 84P4S12-99 84P4S15-99 84P4S20-99	84S4P03-09 84S4P06-09 84S4P12-09 84S4P15-09 84S4P20-09
5 8A 600V	1-White 2-Red 3-Green 4-Orng. 5-Black	3 ft./0.91m 6 ft./1.83m 12 ft./3.66m 15 ft./4.57m 20 ft./6.10m	85P5S03 85P5S06 85P5S12 85P5S15 85P5S20	85P5S03-09 85P5S06-09 85P5S12-09 85P5S15-09 85P5S20-09	85P5S03-99 85P5S06-99 85P5S12-99 85P5S15-99 85P5S20-99	85S5P03-09 85S5P06-09 85S5P12-09 85S5P15-09 85S5P20-09
6 8A 600V	1-White 2-Red 3-Green 4-Orng. 5-Black 6-Blue	3 ft./0.91m 6 ft./1.83m 12 ft./3.66m 15 ft./4.57m 20 ft./6.10m	86P6S03 86P6S06 86P6S12 86P6S15 86P6S20	86P6S03-09 86P6S06-09 86P6S12-09 86P6S15-09 86P6S20-09	86P6S03-99 86P6S06-99 86P6S12-99 86P6S15-99 86P6S20-99	86S6P03-09 86S6P06-09 86S6P12-09 86S6P15-09 86S6P20-06

Cable Assemblies Devices with #16 AWG STO Cable
Poles and Rating	Wiring Code	Overall Length (ft./m)	Male/Female Straight	Male/Female Straight to 90°	Male/ Female 90°	Female/Male Straight to 90°
9 7A 600V	1-Orange 2-Blue 3-Red-Blk.Tr. 4-Green-Blk.Tr. 5-White 6-Red 7-Green 8-White-Blk.Tr. 9-Black	3 ft./0.91m 6 ft./1.83m 12 ft./3.66m 15 ft./4.57m 20 ft./6.10m	89P9S03 89P9S06 89P9S12 89P9S15 89P9S20	89P9S03-09 89P9S06-09 89P9S12-09 89P9S15-09 89P9S20-09	89P9S03-99 89P9S06-99 89P9S12-99 89P9S15-99 89P9S20-99	89S9P03-09 89S9P06-09 89S9P12-09 89S9P15-09 89S9P20-09
10 7A 600V	1-Orange 2-Blue 3-White-Blk.Tr. 4-Red-Blk.Tr. 5-Green-Blk.Tr. 6-Orange-Blk.Tr 7-Red 8-Green 9-Black 10-White	3 ft./0.91m 6 ft./1.83m 12 ft./3.66m 15 ft./4.57m 20 ft./6.10m	810P10S03 810P10S06 810P10S12 810P10S15 810P10S20	810P10S03-99 810P10S06-99 810P10S12-99 810P10S15-99 810P10S20-99	83P3S03-99 83P3S06-99 83P3S12-99 83P3S15-99 83P3S20-99	810S10P03-09 810S10P06-09 810S10P12-09 810S10P15-09 810S10P20-09
12 7A 600V	1-Orange 2-Blue 3-White-Blk.Tr. 4-Red-Blk.Tr. 5-Green-Blk.Tr. 6-Orange-Blk.Tr. 7-Blue-Blk.Tr. 8-Black-Wht.Tr. 9-Green 10-Red 11-White 12-Black	3 ft./0.91m 6 ft./1.83m 12 ft./3.66m 15 ft./4.57m 20 ft./6.10m	812P12S03 812P12S06 812P12S12 812P12S15 812P12S20	812P12S03-09 812P12S06-09 812P12S12-09 812P12S15-09 812P12S20-09	812P12S03-99 812P12S06-99 812P12S12-99 812P12S15-99 812P12S20-99	812S12P03-09 812S12P06-09 812S12P12-09 812S12P15-09 812S12P20-09

Specifications

ELECTRICAL RATING
VOLTAGE	600v
CABLE ASSEMBLIES
COUPLING NUT	Anodized Aluminum
CONTACTS	Copper Alloy, Gold - Plated
INSERT	Polyurethane
MOLDED HEADS	Polyurethane for straight connectors PVC for 90° Right angle connectors
CABLE	16 AWG: PVC Insulated, fine stranded copper conductors, yellow oil resistant PVC jacketed 600V, STO, 105°C. UL Recognized, CSA Certified
PANEL MOUNT ASSEMBLIES
SHELLS	Anodized Aluminum
CONTACTS	Copper Alloy, Gold - Plated
INSERTS	Ethylene propylene thermoplastic rubber “Santoprene”
WIRE	16 AWG PVC Insulated, 600V. UL Recognized, CSA Certified
ENVIRONMENTAL
PROTECTION	NEMA 6P, IP67 & IP68
OPERATING AMBIENT	-20° to 80°C.
CERTIFICATIONS
UL	UL Recognized
CSA	CSA Certified
EMI / RFI SHIELDING	MEETS OR EXCEEDS IEC DIRECTIVES: IEC 1000-4-2 ESD, 5KV to 15KV in 2.5KV Steps IEC 1000-4-3 RFI Immunity, 10V/m IEC 1000-4-4 Fast Transient, 2K IEC 1000-4-5 Surge, DC Immunity, 3.1KV EN50141 Induced RF Immunity, 10V/m
Standard Panel Mounts
22AWG, 80C, 600V, PVC Hookup Wire
EPTR “Santoprene” Insert
Lead Length 12 in.
Epoxy Filled
Standard Cable Assemblies
16 AWG, PVC Yellow Jacketed Cable
Polyurethane Insert
Polyurethane (Straight) and PVC (90° Right Angle) Overmold
Standard Length 3’, 6’, 12’, 15’, and 20’.
Terminator
Resistor 1/4 Watt 121 Ohm 1%
Polyurethane Insert
Polyurethane Overmold
