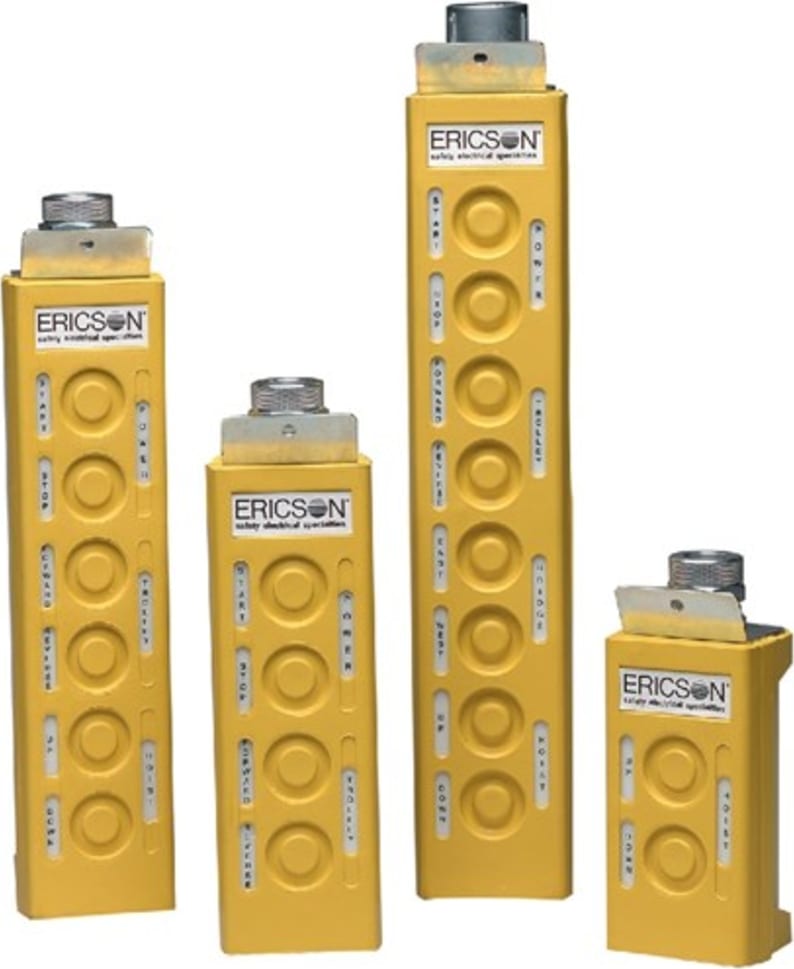

Ericson 5704-2A Rubber Enclosure Pendant Station

Name: Ericson 5704-2A Rubber Enclosure Pendant Station
Brand: Ericson
SKU: Ericson5704-2A
Price: 657.83 USD
Availability: InStock

0 reviews | UPC: 782862821046 | Model: Ericson 5704-2A

Compare

PND STN, 4-BTN, 2-SPD, RBR ENCL

Available in 2 to 8 button configurations
Single- and two-speed models
Built-in strain relief bracket
Rubber enclosure covers buttons to prevent outside contaminants from entering enclosure
Standard legend plates (see following page) and cord grip included with each pendant station
Two-piece enclosure simplifies field wiring
Soft pressure and positive indent switches provide optimum tactile feedback wo you can feel when switch has been engaged
Contacts rated at 10A/125VAC
NEMA Types 1, 3, 4 & 12
UL listed and CSA certified

Standard Legend Plates
2 Button	4 Button	6 & 8 Button
Hoist Up Down Start Stop Red & Green Disc	Hoist Power Trolley Up Down Right Left Forward Reverse Start Stop Red & Green Disc	Hoist Trolley Bridge Power Up Down Start Stop Right Left North South East West Forward Reverse 4 Tie Straps Red & Green Disc

View Product Details

List Price: $730.92

In Stock:

Recommended for you

Cat. No.	Description	Switches	Contact Ratings			NEMA TYPE Rating	Cable Dia. Range
Cat. No.	Description	Switches	Speed	Amps	Volts	NEMA TYPE Rating	Cable Dia. Range
5702	2-button, single speed, rbr encl	2	1	10	125	1, 3, 4, 12	.437 - .740 in.
5702-2A	2-button, 2-speed, rbr encl (1)	2	2	10	125	1, 3, 4, 12	.437 - .740 in.
5704	4-button, single speed, rbr encl	4	1	10	125	1, 3, 4, 12	.437 - .740 in.
5704-2A	4-button, 2-speed, rbr encl (1)	4	2	10	125	1, 3, 4, 12	.437 - .740 in.
5706	6-button, single speed, rbr encl	6	1	10	125	1, 3, 4, 12	.437 - .740 in.
5706-2A	6-button, 2-speed, rbr encl (1)	6	2	10	125	1, 3, 4, 12	.437 - .740 in.
5708	8-button, single speed, rbr encl	8	1	10	125	1, 3, 4, 12	.640 - .875 in.
5708-2A	8-button, 2-speed, rbr encl (1)	6	2	10	125	1, 3, 4, 12	.640 - .875 in.
Notes: 1. Standard two-speed switches have cumulative-type make-make contacts. If non-cumulative-type break-before-make contacts are required, delete the” “A” in the catalog number when ordering and specify accordingly.
