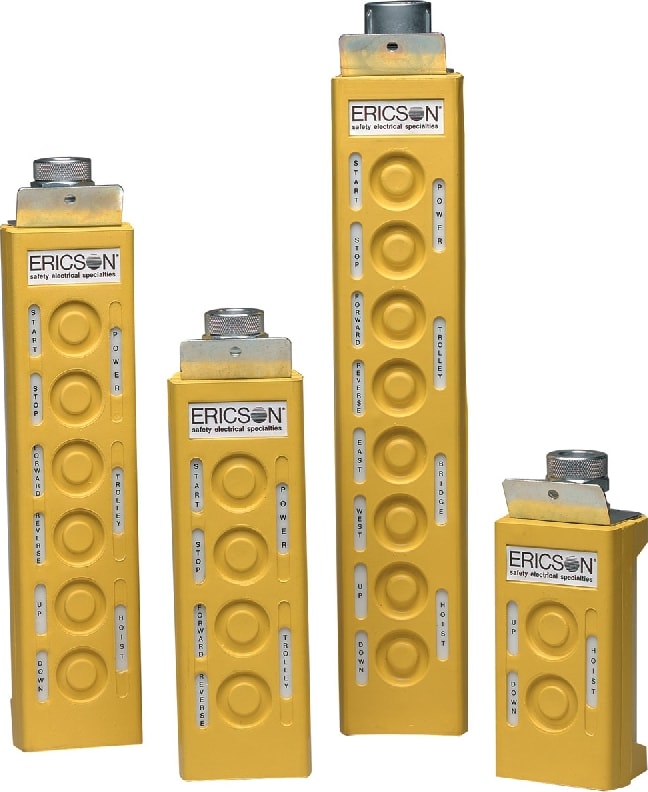

Ericson 5700 Series Rubber Enclosure Pendant Stations

Name: Ericson 5700 Series Rubber Enclosure Pendant Stations
Brand: Ericson
SKU: Ericson5702
Price: 288.70 USD
Availability: InStock

0 reviews | UPC: 782862821015 | Model: Ericson 5702

Compare

RBR PENDANT - 2 BUTTON 1 SPEED

Available in 2 to 8 button configurations
Single- and two-speed models
Built-in strain relief bracket
Rubber enclosure covers buttons to prevent outside contaminants from entering enclosure
Standard legend plates (see following page) and cord grip included with each pendant station
Two-piece enclosure simplifies field wiring
Soft pressure and positive indent switches provide optimum tactile feedback wo you can feel when switch has been engaged
Contacts rated at 10A/125VAC
NEMA Types 1, 3, 4 & 12
UL listed and CSA certified

Standard Legend Plates
2 Button	4 Button	6 & 8 Button
Hoist Up Down Start Stop Red & Green Disc	Hoist Power Trolley Up Down Right Left Forward Reverse Start Stop Red & Green Disc	Hoist Trolley Bridge Power Up Down Start Stop Right Left North South East West Forward Reverse 4 Tie Straps Red & Green Disc

View Product Details

List Price: $320.78

In Stock:

View Payment Options

Recommended for you

Cat. No.	Description	Switches	Contact Ratings			NEMA TYPE Rating	Cable Dia. Range
Cat. No.	Description	Switches	Speed	Amps	Volts	NEMA TYPE Rating	Cable Dia. Range
5702	2-button, single speed, rbr encl	2	1	10	125	1, 3, 4, 12	.437 - .740 in.
5702-2A	2-button, 2-speed, rbr encl (1)	2	2	10	125	1, 3, 4, 12	.437 - .740 in.
5704	4-button, single speed, rbr encl	4	1	10	125	1, 3, 4, 12	.437 - .740 in.
5704-2A	4-button, 2-speed, rbr encl (1)	4	2	10	125	1, 3, 4, 12	.437 - .740 in.
5706	6-button, single speed, rbr encl	6	1	10	125	1, 3, 4, 12	.437 - .740 in.
5706-2A	6-button, 2-speed, rbr encl (1)	6	2	10	125	1, 3, 4, 12	.437 - .740 in.
5708	8-button, single speed, rbr encl	8	1	10	125	1, 3, 4, 12	.640 - .875 in.
5708-2A	8-button, 2-speed, rbr encl (1)	6	2	10	125	1, 3, 4, 12	.640 - .875 in.
Notes: 1. Standard two-speed switches have cumulative-type make-make contacts. If non-cumulative-type break-before-make contacts are required, delete the” “A” in the catalog number when ordering and specify accordingly.
