Ericson 143100STWY-1W - 100ft Light 14/3 Stringlight Set with Wire Guards

Name: Ericson 143100STWY-1W - 100ft Light 14/3 Stringlight Set with Wire Guards
Brand: Ericson
SKU: Ericson143100STWY-1W
Price: 193.90 USD
Availability: InStock

0 reviews | UPC: 782862821534 | Model: Ericson 143100STWY-1W

Compare

E-lite 14/3 STW 100ft 5-15 with Wire Guard

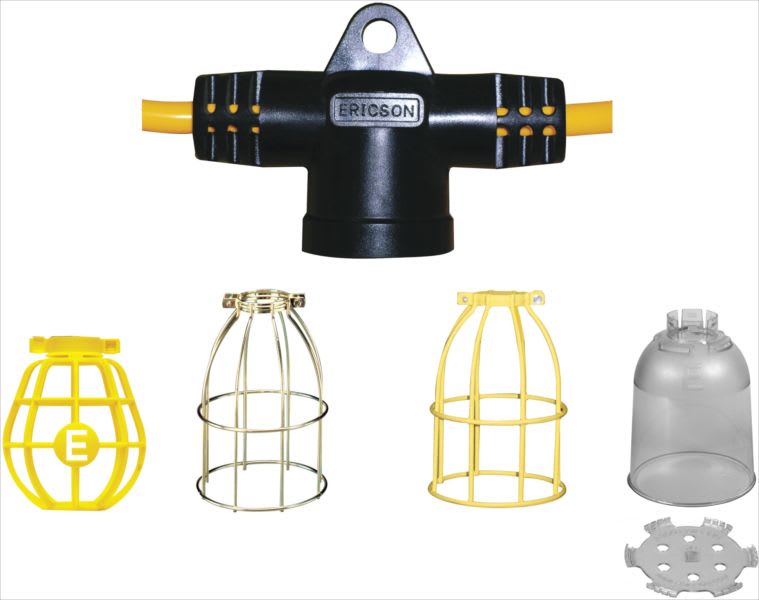

4 bulb guard styles to chose from, Plastic, Wire, Vinyl Coated Wire & Clear RainGard
Meets OSHA construction site requirements - 1926.405 (a) (2) (ii) (E & F)
Meets NEC requirements for temporary lighting - 525.21 (B), 527.4 (F), 527.4 (H)
UL Listed (#14 awg) cUL Listed for Canada (#12 awg)
Designed for applications that require rapid set-up/tear-down and a 3-wire stringlight
Full threaded screwshell to ensure proper contact
Available with non-conductive, snap-open cage guard grounded wire guard or clear rain guards
Built-in hanger for easy installation with messenger cable or hooks
Units come standard with Extra-Hard-Usage ST cord in 50 ft. and 100 ft. lengths
Construction lighting come standard with Ericson’s molded plugs and connectors
Heavy Duty sockets handle up to 150 Watts per socket

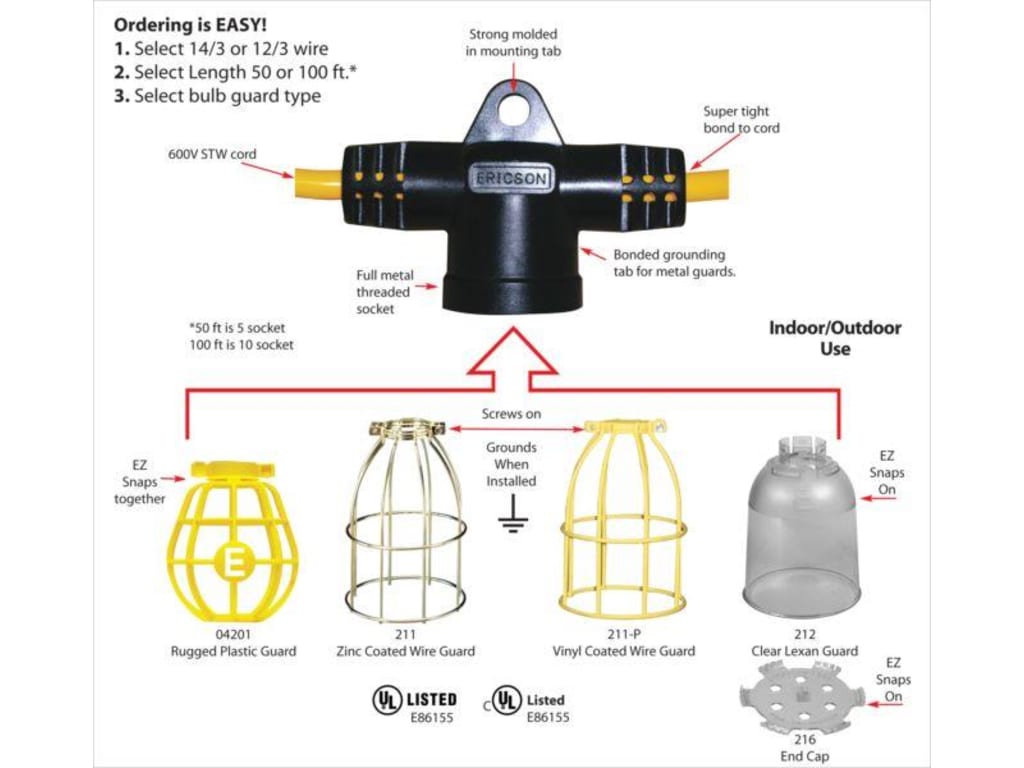

Guards Included and Model/Part Number determines type of guard supplied- see below
- Part number with L = Plastic Lattice Guard
  Part number with C = Clear Rain Guard
- Note: Stringlights with Rain Guards not supplied with 216 snap-on bottom covers - order separately
- Part number with W = Wire zinc coated Guard
  Part number with WP = Vinyl Coated Wire Guard

View Product Details

List Price: $215.44

In Stock:

View Payment Options

Recommended for you

Ericson 143100STWY-1W - 100ft Light 14/3 Stringlight Set with Wire Guards

Ericson 143100STWY-1W is a 100ft light 14/3 stringlight set with wire guards. Ericson Code Compliant Listed 3 Wire Commercial Duty Stringlight Sets. It is a built-in hanger for easy installation with messenger cable or hooks and construction lighting come standard with Ericson’s molded plugs and connectors

	#12/3 STW w/ Plastic Lattice Guard			#12/3 STW w/ Wire Cage Guard
50 ft.Overall Length	12350STWY-1L	12350STWY-2L	12350STWY-3L	12350STWY-1W	12350STWY-2W	12350STWY-3W
100 ft.Overall Length	123100STWY-1L	123100STWY-2L	123100STWY-3L	123100STWY-1W	123100STWY-2W	123100STWY-3W
Specifications
Electrical	120V/60Hz	120V/60Hz	120V/60Hz	120V/60Hz	120V/60Hz	120V/60Hz
Overall Length	see above	see above	see above	see above	see above	see above
Cable gauge & type	12/3 STW	12/3 STW	12/3 STW	12/3 STW	12/3 STW	12/3 STW
Guard	04201 snap on lattice	04201 snap on lattice	04201 snap on lattice	04201 snap on lattice	04201 snap on lattice	04201 snap on lattice
Number of sockets
-----50 ft. stringlights	5	5	5	5	5	5
-----100 ft. stringlights	10	10	10	10	10	10
Socket spacing	10 ft. centers	10 ft. centers	10 ft. centers	10 ft. centers	10 ft. centers	10 ft. centers
Max watts per socket
-----50 ft. stringlights	200	200	200	200	200	200
-----100 ft. stringlights	150	150	150	150	150	150
Plug	1510-PW6P (NEMA 5-15)	1520-PW6P (NEMA L5-15)	2310-PW6P (NEMA L5-20)	1510-PW6P (NEMA 5-15)	1520-PW6P (NEMA L5-15)	2310-PW (NEMA L5-20)
Connector	1610-CW6P (NEMA 5-15)	1620-CW6P (NEMA L5-15)	2410-CW6P (NEMA L5-20)	1610-CW6P (NEMA 5-15)	1620-CW6P (NEMA L5-15)	2410-CW6P (NEMA L5-20)
Standard products come with 9 ft. primary (lead) and 1 ft. secondary (tail)

	#14/3 STW w/ Plastic Lattice Guard		#12/3 STW w/ Wire Cage Guard
50 ft.Overall Length	14350STWY-1L	14350STWY-2L	14350STWY-1W	14350STWY-2W
100 ft.Overall Length	143100STWY-1L	143100STWY-2L	143100STWY-1W	143100STWY-2W

Specifications
Electrical	120V/60Hz	120V/60Hz	120V/60Hz	120V/60Hz
Overall Length	see above	see above	see above	see above
Cable gauge & type	14/3 STW	14/3 STW	14/3 STW	14/3 STW
Guard	04201 snap on lattice	04201 snap on lattice	04201 snap on lattice	04201 snap on lattice
Number of Sockets:
-----50 ft. stringlights	5	5	5	5
-----100 ft. stringlights	10	10	10	10
Socket spacing	10 ft. centers	10 ft. centers	10 ft. centers	10 ft. centers
Max watts per socket:
-----50 ft. stringlights	200	200	200	200
-----100 ft. stringlights	150	150	150	150
Plug	1510-PW6P (NEMA 5-15)	1520-PW6P (NEMA L5-15)	1510-PW6P (NEMA 5-15)	1520-PW6P (NEMA L5-15)
Connector	1610-CW6P (NEMA 5-15)	1620-CW6P (NEMA L5-15)	1610-CW6P (NEMA 5-15)	1620-CW6P (NEMA L5-15)
Standard products come with 9 ft. primary (lead) and 1 ft. secondary (tail)
NOTES: 1. Contact factory for custom assemblies

Tech Specs

Test Equipment General Attributes
Shipping Weight	16.00 LBS
