| Model: DC-13 Specifications |
| Imaging Element |
| Pick-up device |
1/2.7" CMOS sensor |
| Effective pixels |
1920 x 1080, 2 megapixels |
| Exposure |
Adjustable |
| Brightness |
Adjustable |
| Output Signals / Resolution |
| VGA |
SXGA (1280 x 1024), XGA (1024 x 768),WXGA (1280 x 800), HD (1360 x 768), 1080p (1920 x 1080) |
| USB |
VGA, SVGA, XGA, SXGA, WXGA, 720p, 1080p |
| HDMI |
480p/720p/1080p |
| Composite Video |
NTSC/PAL |
| Frame Rate |
30 fps maximum |
| Lighting Source |
| Upper |
White LED x2 |
| Brightness |
250 lx or above @ A3 shooting area |
| Optics |
| Lens |
F – number = 2 |
| Capture Area |
11.7" x 20.7" (at 1080p) |
| Zoom |
16x digital zoom |
| Focus |
Automatically with one-touch button |
| Functions |
| White Balance |
Auto |
| Image Rotation |
Horizontal / Vertical: ±90 degrees |
| User Functions |
Zoom, Freeze, Auto Focus, Focus Lock, LED, Brightness, Contrast, Negative, Black and White, Split Screen, Play back, Video Capture, Digital Scroll (pan/tilt), Flicker Reduction, Image Rotation, Source (PC/ DC), Auto-detect Aspect, Video Recording, Video Playing |
| Interface |
| Input Terminal |
HDMI/Computer In (VGA)/Display Out (VGA)/USB-B (for connection to PC/Mac®)/SD Card Slot |
| Dimensions |

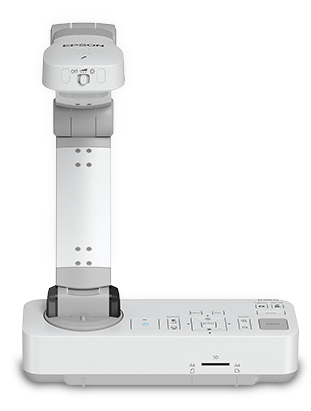

| Open / Unfolded |
10.6" x 17.6" x 12.5" (W x D x H) |

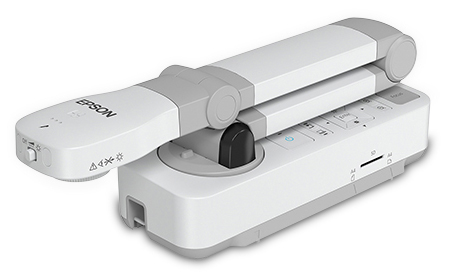

| Closed / Folded |
14.4" x 4.7" x 4.8" (W x D x H) |
| Weight |
5.6 lb |
| Application Software |
| Language |
13 languages |
| Functions |
Rotation, Zoom (+, -, selectable, x1), Auto Focus, Freeze, Record, Time-lapse, Picture Control (Brightness, Contrast, White Balance, Auto White Balance) |
| Saving Format |
| Still Image |
JPG, BMP, PNG |
| Video (Windows) |
AVI |
| Video (Mac) |
MOV |
| Other |
PDF, EIT |
| Other |
| Operating System Compatibility |
| Windows |
7, Windows 8, Windows 10, Windows Vista® |
| Mac OS |
X 10.7.x, 10.8.x, 10.9.x, 10.10.x, 10.11.x |
| Driver |
TWAIN (for Windows) |
| Security |
Kensington® lock support, metal security bar, security mounting holes |
| Operating Temperature |
41° to 95° F (5° to 35° C) |
| Operating Humidity |
20 to 80% |
| Power Supply Voltage |
100 – 240 V AC / DC |
| Power Frequency |
50/60 Hz |
| Output Voltage of AC Power Adapter |
DC 12 V |
| Power Consumption |
| Operating |
13 W |
| Standby |
<0.5 W |
