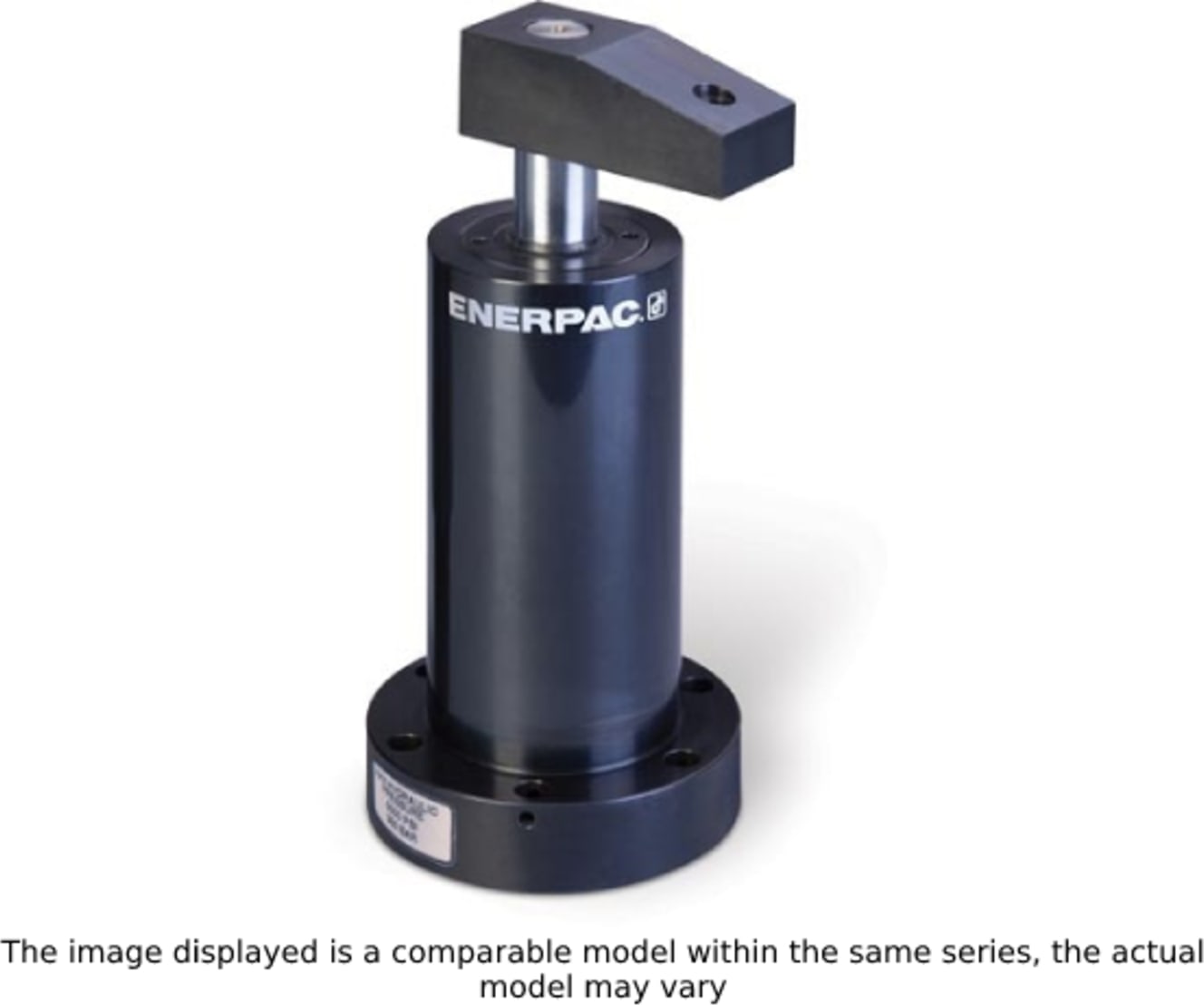

Enerpac WPFN100V - Collet-Lok Swing Cylinder, 2,000 lbs Force, Lower Flange, Nonrotational

Name: Enerpac WPFN100V - Collet-Lok Swing Cylinder, 2,000 lbs Force, Lower Flange, Nonrotational
Brand: Enerpac
SKU: EnerpacWPFN100V
Price: 2260.00 USD
Availability: InStock

0 reviews | UPC: 662005372874 | Model: Enerpac WPFN100V

Compare

Collet-Lok Swing Cylinder, 2,000 lbs Force, Lower Flange, Nonrotational

Clamping force (lbs): 2,000
Stroke (in): 1.11
Rotation direction: Nonrotational
Double acting Collet-Lok action allows fully automated operation
Additional level of safety since live hydraulics are not required to maintain clamping force
Can be mounted by the flange or threaded into the fixture
Flanged models have manifold ports and tubing ports
Viton seals are standard

View Product Details

List Price: $2,260.00

In Stock:

View Payment Options

Recommended for you

Enerpac WPFN100V

Clamping force (lbs): 2,000
Stroke (in): 1.11
Rotation direction: Nonrotational
Double-acting Collet-Lok action

Collet-Lok Swing Cylinder, 2,000 lbs Force, Lower Flange, Nonrotational

The Enerpac WPFN100V is a collet-lok swing cylinder with a 2,000 lbs clamping force. This collet-lok swing cylinder is designed to mechanically hold the workpiece after hydraulic pressure is removed.

WPF Series Comparison Table

Model	Maximum Operating Pressure (psi)	Minimum Operating Pressure (psi)	Stroke (in)	Rotation Direction
WPFC110V	5000	725	0.6	N/A
WPFC210V	5000	725	0.6	N/A
WPFL100V	5000	1400	1.11	Left
WPFL50V	5000	1400	0.95	Left
WPFN100V	5000	1400	1.11	Nonrotational
WPFN50V	5000	1400	0.95	Nonrotational
WPFR100V	5000	1400	1.11	Right
WPFR50V	5000	1400	0.95	Right
