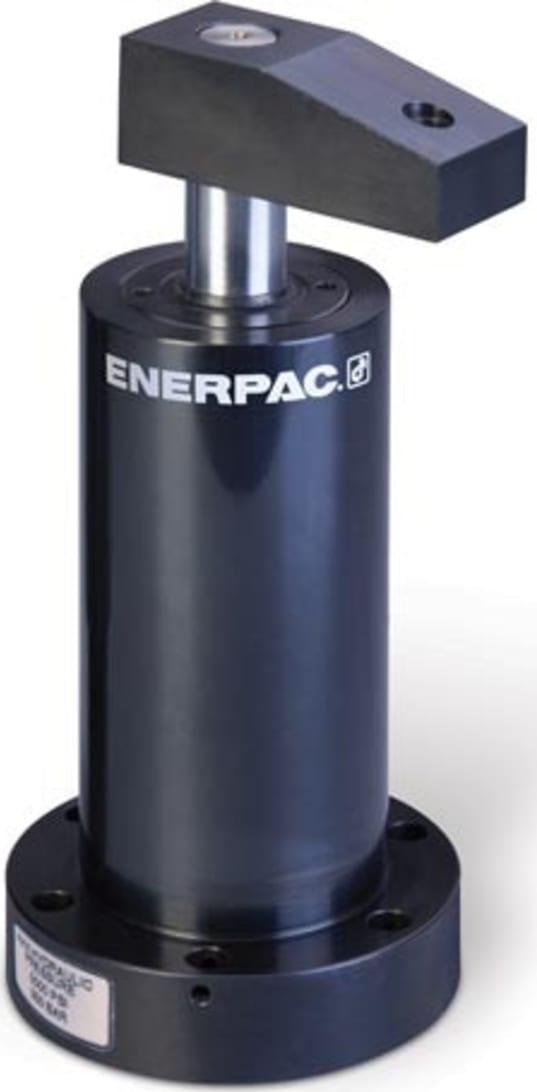

Enerpac WPFL100V - Collet-Lok Swing Cylinder, 2,000 lbs Force, Lower Flange, Left Turn

Name: Enerpac WPFL100V - Collet-Lok Swing Cylinder, 2,000 lbs Force, Lower Flange, Left Turn
Brand: Enerpac
SKU: EnerpacWPFL100V
Price: 2328.00 USD
Availability: InStock

0 reviews | UPC: 662005372843 | Model: Enerpac WPFL100V

Compare

Collet-Lok Swing Cylinder, 2,000 lbs Force, Lower Flange, Left Turn

Clamping force (lbs): 2,000
Stroke (in): 1.11
Rotation direction: Left
Double acting Collet-Lok action allows fully automated operation
Additional level of safety since live hydraulics are not required to maintain clamping force
Can be mounted by the flange or threaded into the fixture
Flanged models have manifold ports and tubing ports
Viton seals are standard

View Product Details

Available Options

Your Price: $2,328.00

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Enerpac WPFL100V Collet-Lok Swing Cylinder, 2,000 lbs Force, Lower Flange, Left Turn	Enerpac WPFL300V Collet-Lok swing cylinder, lower flange, left turn, 8500 lbs force	Enerpac WPFN300V Collet-lok swing cylinder, lower flange, non rotational, 8500lbs force	Enerpac WPFR300V Collet-Lok swing cylinder, lower flange, right turn, 8500lbs force	Enerpac WPFL50V Collet-Lok Swing Cylinder, 1,000 lbs Force, Lower Flange, Left Turn	Enerpac WPFC210V Collet-lok push cylinder, 5,000 lbs force, lower flange	Enerpac WPFN50V Collet-Lok Swing Cylinder, 1,000 lbs Force, Lower Flange, Nonrotational	Enerpac WPFR100V Collet-Lok Swing Cylinder, 2,000 lbs Force, Lower Flange, Right Turn	Enerpac WPFR50V Collet-Lok Swing Cylinder, 1,000 lbs Force, Lower Flange, Right Turn
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Enerpac WPFL100V

Clamping force (lbs): 2,000
Stroke (in): 1.11
Rotation direction: Left
Double-acting Collet-Lok action

Collet-Lok Swing Cylinder, 2,000 lbs Force, Lower Flange, Left Turn

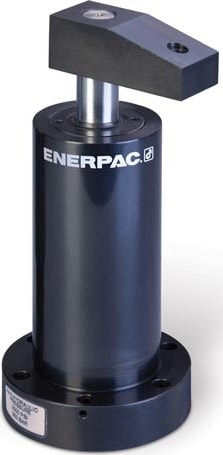

The Enerpac WPFL100V is a collet-lok swing cylinder with a 2,000 lbs clamping force. This collet-lok swing cylinder is designed to mechanically hold the workpiece after hydraulic pressure is removed.

WPF Series Comparison Table

Model	Maximum Operating Pressure (psi)	Minimum Operating Pressure (psi)	Stroke (in)	Rotation Direction
WPFC110V	5000	725	0.6	N/A
WPFC210V	5000	725	0.6	N/A
WPFL100V	5000	1400	1.11	Left
WPFL50V	5000	1400	0.95	Left
WPFN100V	5000	1400	1.11	Nonrotational
WPFN50V	5000	1400	0.95	Nonrotational
WPFR100V	5000	1400	1.11	Right
WPFR50V	5000	1400	0.95	Right
