Pressure relief valve, 3/8" NPT

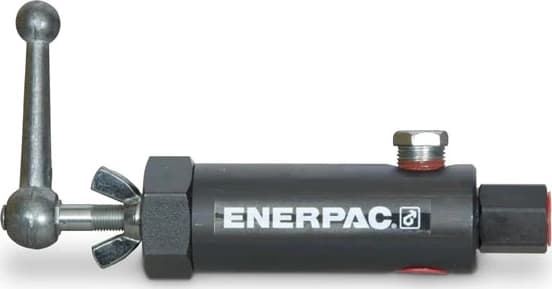

The Enerpac V152 is a pressure relief valve that limits pressure developed by the pump in the hydraulic circuit, thus limiting the force imposed on other components. It offers 800-10,000 psi of adjustment range and ± 3% repeatability. The valve opens whenever preset pressure is reached. To increase the pressure setting, turn the handle clockwise. The valve provides a maximum oil flow of 1830 cu. in/min. A 3 ft. return line hose kit is included.
The V152 is also used to automate clamp cycles, prevent pressure loss and provide additional operator and component safety. It regulates oil flow or system pressure. This valve comes with 3/8" NPT porting to ensure against leakage at rated pressure. It can easily be installed in any system. In addition, this valve is painted, coated, or plated for corrosion resistance.
