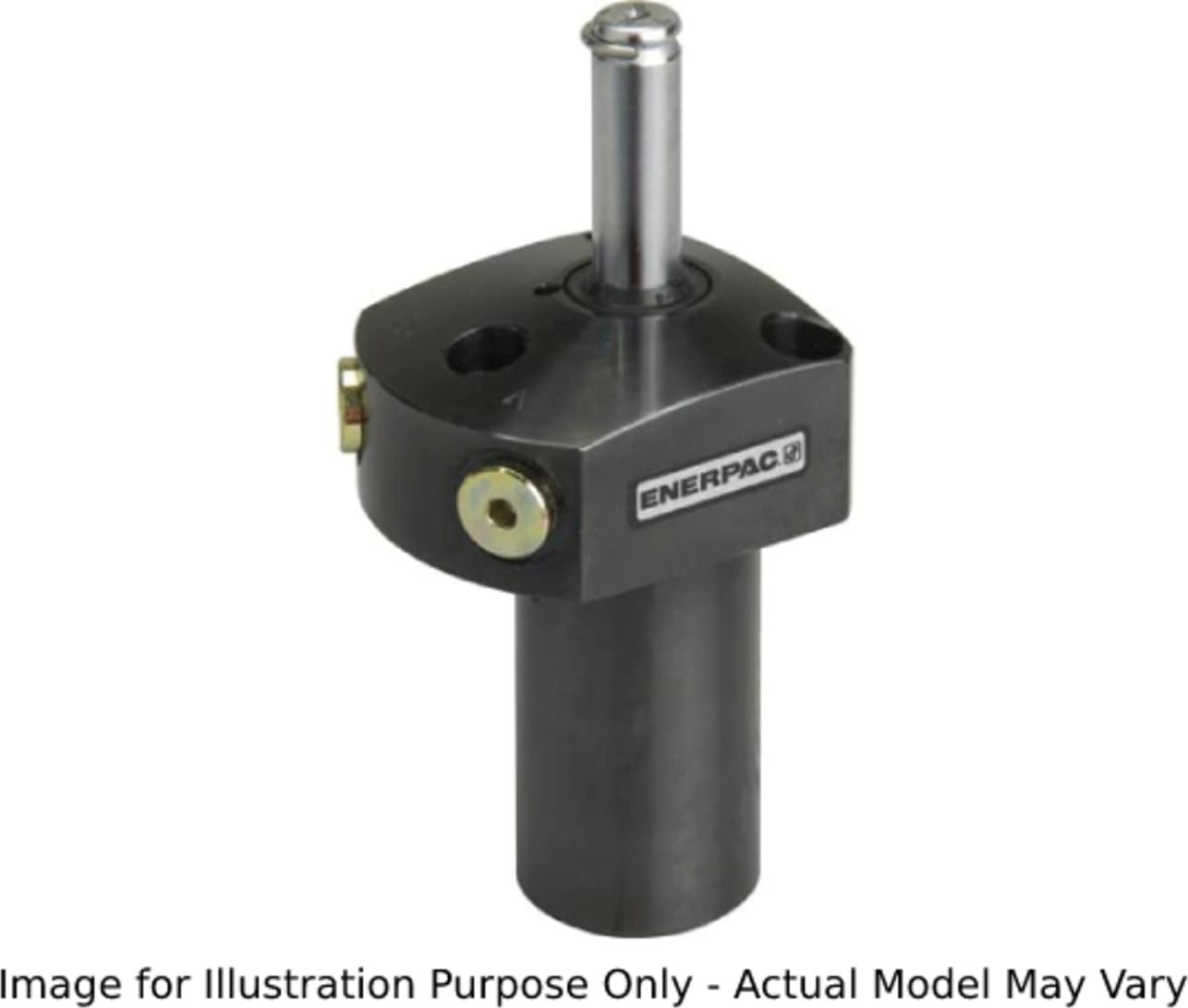

Enerpac SUSS21 - Swing Clamp, 475 lbs Force, Single-Acting, Straight Plunger, Upper Flange

Name: Enerpac SUSS21 - Swing Clamp, 475 lbs Force, Single-Acting, Straight Plunger, Upper Flange
Brand: Enerpac
SKU: EnerpacSUSS21
Price: 416.50 USD
Availability: InStock

0 reviews | UPC: 662005231188 | Model: Enerpac SUSS21

Compare

Swing clamp, 475 lbs force, single-acting, straight plunger, upper flange

Clamping force: 475 lbs | Stroke: 0.65" | Stroke Clamping: 0.32"
The flexible design allows for manifold or threaded port connection
The low profile mounting style allows the body to be below the mounting surface
Simple mounting preparation and easy installation - 3 or 4 mounting bolts
Double oil connection - threaded port or manifold mount
A symmetrical rectangular flange design enables clamping at three sides of the cylinder
30, 45, and 60-degree swing angles available on request

View Product Details

List Price: $490.00

In Stock:

View Payment Options

Recommended for you

Enerpac SUSS21

Clamping force: 475 lbs | Stroke: 0.65" | Stroke Clamping: 0.32"
The flexible design allows for manifold or threaded port connection
The low profile mounting style allows the body to be below the mounting surface
Simple mounting preparation and easy installation - 3 or 4 mounting bolts

Swing Clamp, 475 lbs Force, Single-Acting, Straight Plunger, Upper Flange

The Enerpac SUSS21 is a 475 lbs force, swing clamp, double-acting, right turning, upper flange designed for integrated manifold mounting solutions. Hydraulic connections are made through SAE or BSPP oil connections or the standard integrated O-ring ports.

SU Series Comparison Table

Model Number	Maximum Operating Pressure (psi)	Minimum Operating Pressure (psi)	Clamping Force (lbs)	Stroke (in)	Stroke Clamping (in)	Weight (lbs)
SURS21	5,000	500	475	0.65	0.32	1
SUSS21	5,000	500	475	0.65	0.32	1
SURD21	5,000	500	500	0.65	0.32	1
SUSD201	5,000	500	2600	1.85	1.25	4
SURS201	5,000	500	3900	1.16	0.55	7.7
SUSS201	5,000	500	3900	1.16	0.55	7.7
SURD201	5,000	500	4200	1.16	0.55	7.7
SUSD21	5,000	500	7450	1.28	0.63	12.1
