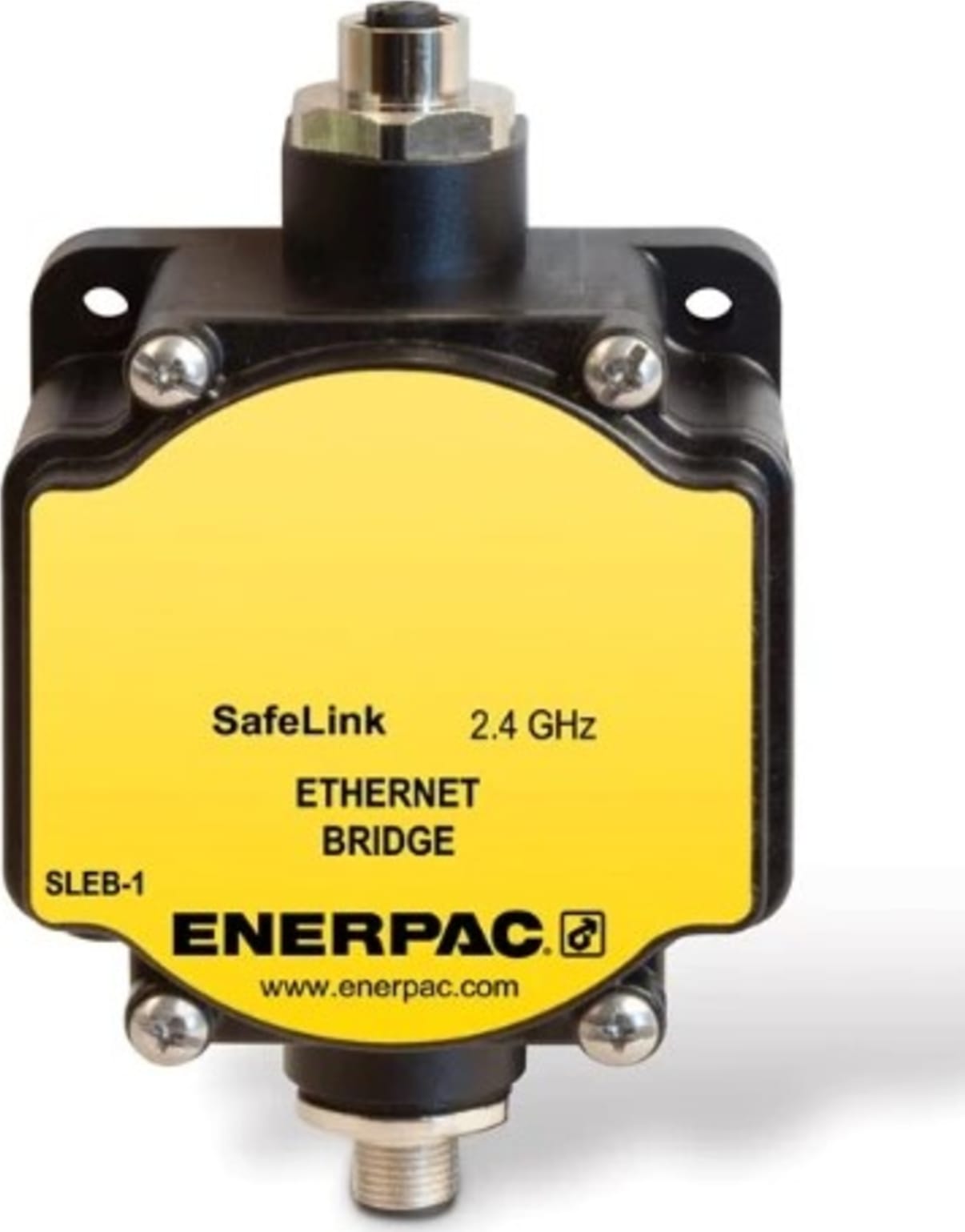

Ethernet Bridge for SLR1, SafeLink, 2.4 GHz
The SLEB1 Ethernet Bridge is used with the SLR1 Receiver when an Ethernet connection is available in the machine control. The use of the SLEB1 will monitor more fixtures in an extensive pallet pool system.
SafeLink provides wireless communication between the fixture-mounted SEND unit and the machine control interfaced RECEIVE unit. A pressure switch is used on the fixture to monitor the circuit pressure. If the pressure switch on the fixture goes open, the RECEIVE unit communicates the changed status to the machine control through either 24 VDC, Modbus RTU RS485 or Ethernet IP protocol, or Modbus TCP/IP. SafeLink can provide a discrete 24VDC output signal for up to 4 fixtures systems. Each SEND unit can provide up to three outputs to the RECEIVE unit. The RECEIVE unit has 6 terminal stations assigned to SEND units in groups of 3. So each RECEIVE unit can be paired with 2 SEND units when using the 24VDC output. EXPANSION MODULE provides an additional terminal strip for extra capacity, adding 2 more sets of three-terminal stations.
