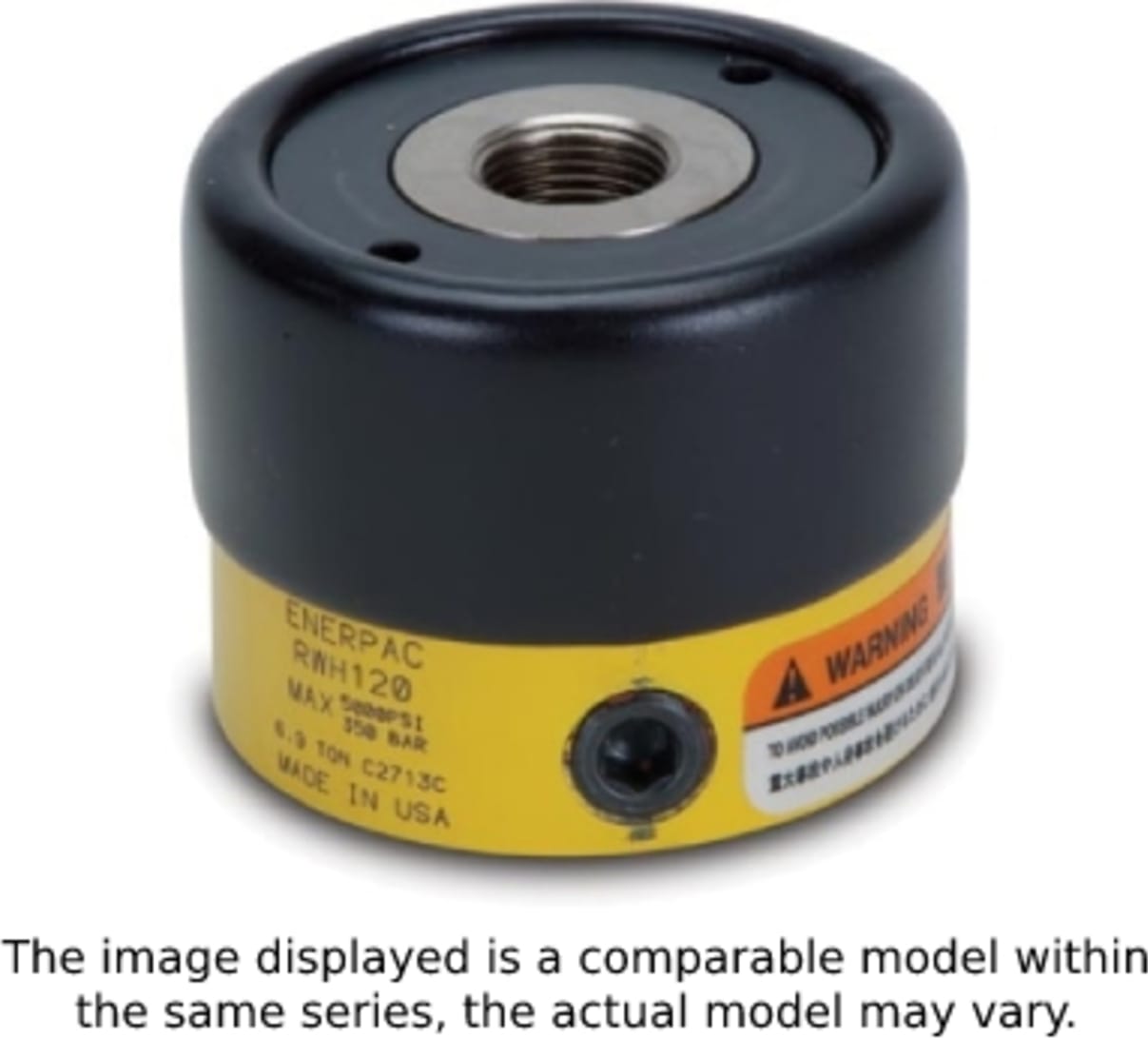

Enerpac RWH121 - Hollow Plunger Hydraulic Cylinder, 13800 lbs Capacity, 1.02" Stroke

Name: Enerpac RWH121 - Hollow Plunger Hydraulic Cylinder, 13800 lbs Capacity, 1.02" Stroke
Brand: Enerpac
SKU: EnerpacRWH121
Price: 998.00 USD
Availability: InStock

0 reviews | UPC: 662005310654 | Model: Enerpac RWH121

Compare

Hollow plunger hydraulic cylinder, 13800 lbs capacity, 1.02" stroke

1.02" stroke
2.76 cu.in oil capacity advance
Load can be attached to either end of the cylinder
Very high cylinder capacities contained within small dimensions
Spring return operation allows for easy unloading of the workpiece
Threaded collars and base mounting holes allow mounting flexibility
Nickel-plated plungers, plunger wipers and internal venting prevent corrosion and support longer operation life on all HCS models

View Product Details

Available Options

Your Price: $998.00

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Enerpac RWH121 Hollow plunger hydraulic cylinder, 13800 lbs capacity, 1.02" stroke	Enerpac RWH200 Hollow Plunger Hydraulic Cylinder, 23500 lbs Capacity, 0.52" stroke	Enerpac RWH202 Hollow plunger hydraulic cylinder, 23500 lbs capacity, 2.02" stroke	Enerpac RWH300 Hollow plunger hydraulic cylinder, 36000 lbs capacity, 0.50" stroke	Enerpac RWH301 Hollow plunger hydraulic cylinder, 36000 lbs capacity, 1" stroke	Enerpac RWH302 Hollow plunger hydraulic cylinder, 36000 lbs capacity, 2.49" stroke	Enerpac RWH120 Hollow plunger hydraulic cylinder, 13800 lbs capacity, 0.32" stroke	Enerpac RWH20 Hollow Plunger Hydraulic Cylinder, 4000 lbs Capacity, 0.33" stroke
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Enerpac RWH121

1.02" stroke
2.76 cu.in oil capacity advance
Load can be attached to either end of the cylinder
Very high cylinder capacities contained within small dimensions

Hollow Plunger Hydraulic Cylinder, 13800 lbs Capacity, 1.02" Stroke

The Enerpac RWH121 is a hollow plunger hydraulic cylinder, that are regularly used for upgrading mechanical clamping to faster and easier hydraulic clamping. Other typical applications include production pressing, punching and crimping operations.

RWH Series Comparison Table

Model Number	Maximum Cylinder Capacity Advance (lbs)	Return Type	Plunger Type	Cylinder Effective Area Advance (sq.in)
RWH20	4,000	Single-Acting, Spring Return	Hollow	1.33
RWH120	13,800	Single-Acting, Spring Return	Hollow	2.76
RWH121	13,800	Single-Acting, Spring Return	Hollow	2.76
RWH200	23,500	Single-Acting, Spring Return	Hollow	4.74
RWH202	23,500	Single-Acting, Spring Return	Hollow	4.74
RWH300	36,000	Single-Acting, Spring Return	Hollow	7.22
RWH301	36,000	Single-Acting, Spring Return	Hollow	7.22
RWH302	36,000	Single-Acting, Spring Return	Hollow	7.22
