Hollow Plunger Hydraulic Cylinder, 100 Tons Capacity Class, 3" Stroke

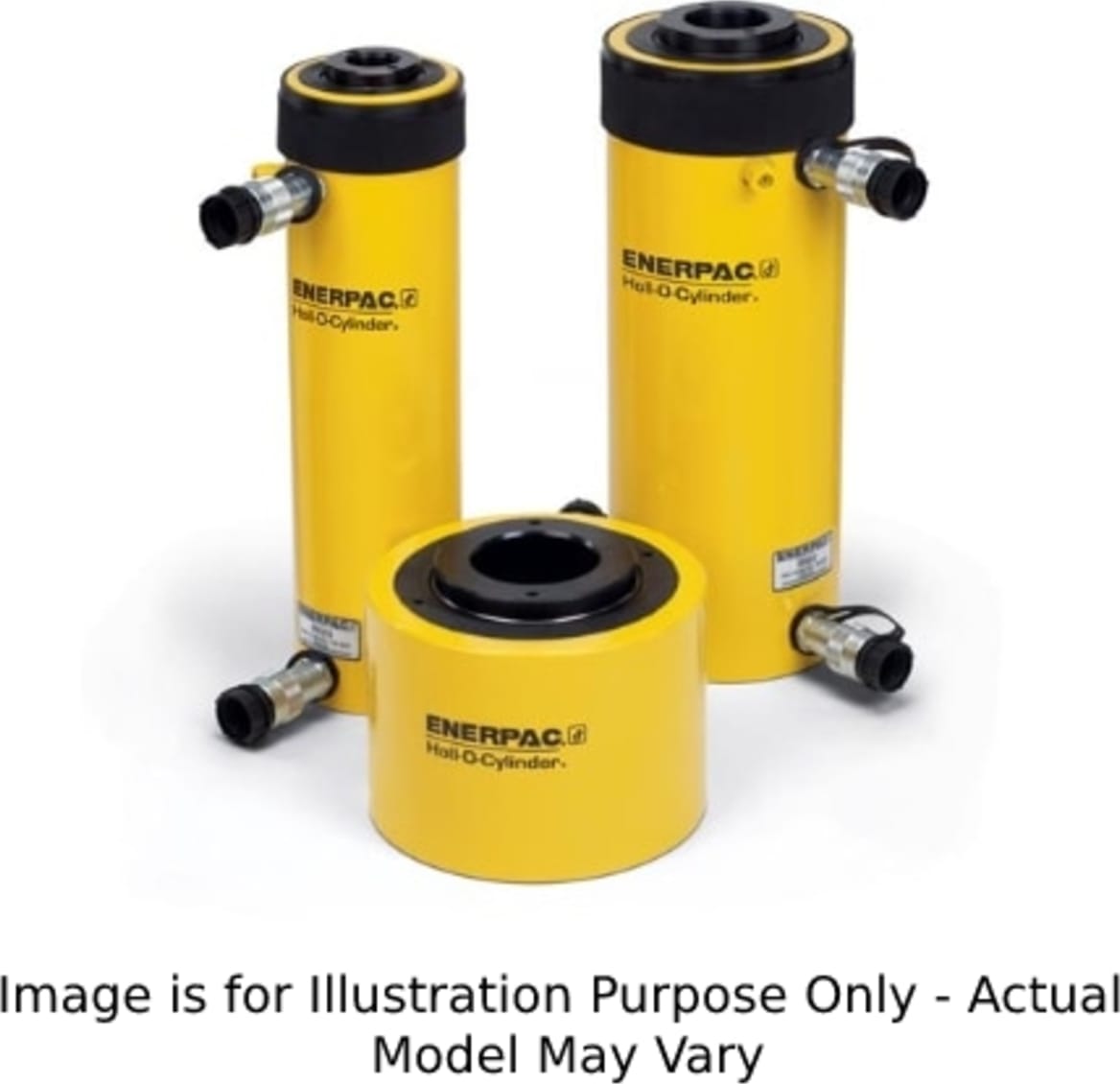

Enerpac RRH1003 is a hollow plunger hydraulic cylinder that features 103 tons of max advance capacity and a stroke of 3". It has relief valves that prevent damage in case of over-pressurization and a baked enamel finish for increased corrosion resistance. Its collar threads enable easy fixturing. This hydraulic cylinder provides a double-acting operation for fast retraction.
The nickel-plated, floating center tube increases product life. A hollow plunger allows for both pull and push forces. Moreover, its plunger wiper reduces contamination, extending cylinder life. The RRH1003 includes a CR-400 coupler and dust cap.
RRH Series Comparison Table
| Model | Maximum Operating Pressure (psi) | Capacity Class (tonnage) | Maximum Cylinder Capacity Advance (tons) | Maximum Cylinder Capacity Retract (tons) | Stroke (in) | Collapsed Height A (in) | Extended Height B (in) | Return Type | Plunger Type |
| RRH307 | 10,000 | 30 | 36 | 24 | 7 | 13 | 20 | Double-Acting, Hydraulic Return | Hollow |
| RRH3010 | 10,000 | 30 | 36 | 24 | 10.13 | 17 | 27.13 | Double-Acting, Hydraulic Return | Hollow |
| RRH603 | 10,000 | 60 | 64 | 42 | 3.5 | 9.75 | 13.25 | Double-Acting, Hydraulic Return | Hollow |
| RRH606 | 10,000 | 60 | 64 | 42 | 6.5 | 12.75 | 19.25 | Double-Acting, Hydraulic Return | Hollow |
| RRH6010 | 10,000 | 60 | 64 | 42 | 10.12 | 17.25 | 27.38 | Double-Acting, Hydraulic Return | Hollow |
| RRH1001 | 10,000 | 100 | 103 | 68 | 1.5 | 6.5 | 8 | Double-Acting, Hydraulic Return | Hollow |
| RRH1003 | 10,000 | 100 | 103 | 68 | 3 | 10 | 13 | Double-Acting, Hydraulic Return | Hollow |
| RRH1006 | 10,000 | 100 | 103 | 68 | 6 | 13.5 | 19.5 | Double-Acting, Hydraulic Return | Hollow |
| RRH10010 | 10,000 | 100 | 103 | 68 | 10.13 | 18.13 | 28.25 | Double-Acting, Hydraulic Return | Hollow |
| RRH1508 | 10,000 | 150 | 158 | 80 | 8 | 13.75 | 21.75 | Double-Acting, Hydraulic Return | Hollow |
