• Tensioner Type: Single Stage

• Threaded Fastener Range (mm): M64 x 6,0
• Bolt Diameter (in): 2.52
• Nut A/F (in): 3.74
• Load Capacity (Imperial Tons): 258.3

High Precision, Low Maintenance

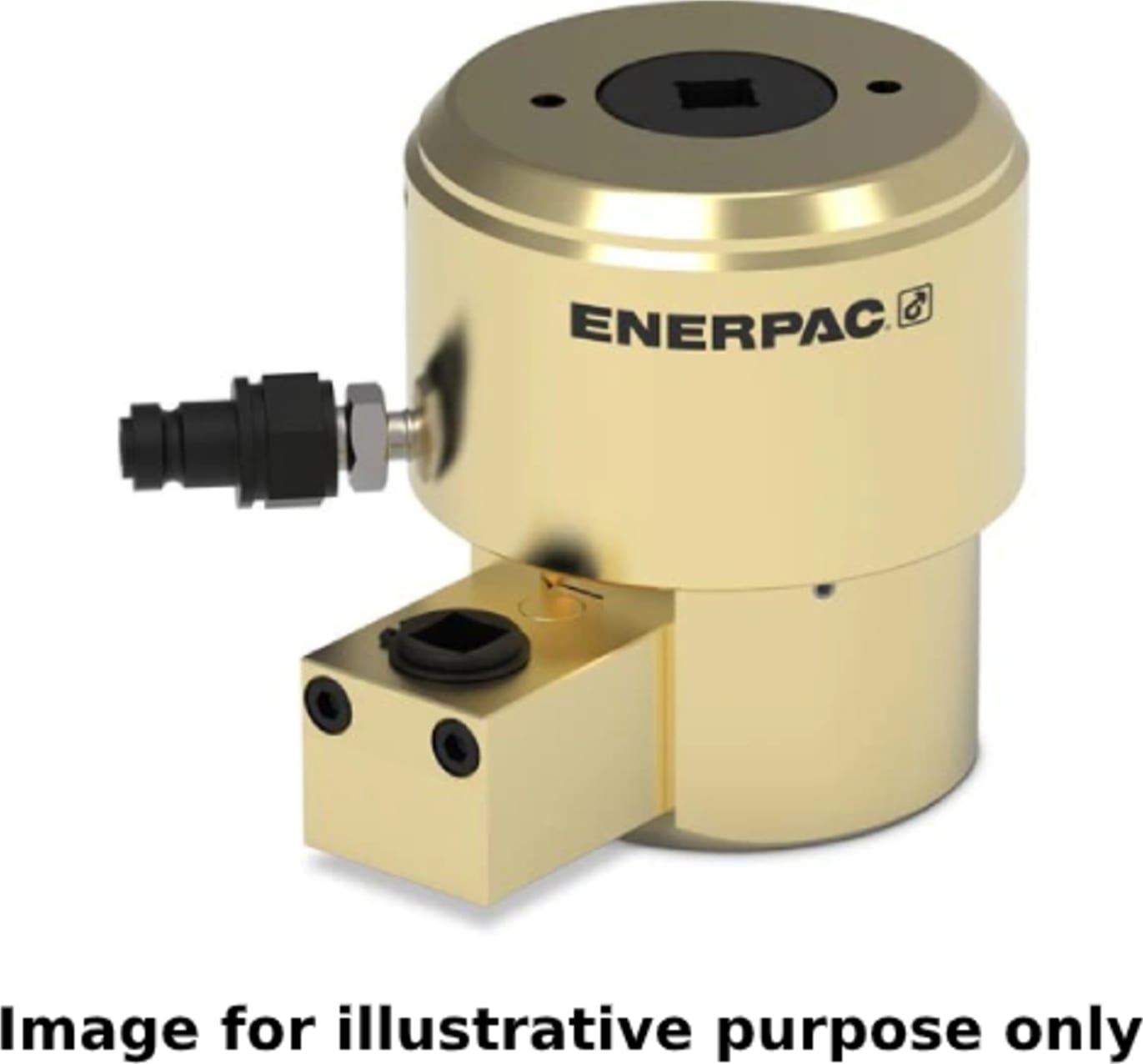

The Enerpac PGT Series Bolt Tensioners are designed for critical fastening applications in wind, steam, and gas turbines.

A broad range of single-stage and double-deck tensioners provide high performance in tight spaces associated with power generation applications.

The PGT Series Bolt Tensioners are loaded with performance-enhancing features such as Auto-Retract Pistons, Cycle Counters, and a premium coating to offer the ultimate in efficiency, durability, and ease of use.

1. Auto-retract piston: Simplifies use and improves the speed of operation.

2. Long-life puller: For maximum durability.

3. Long-life seals: For maximum durability and extended service life intervals.

4. Corrosion protection: Zinc coating provides best-in-class corrosion resistance.

5. Interchangeable bridge: For optimal application fit.

6. Over-stroke preventer: Mechanically prevents over-stroke, extending cylinder life.

7. Over-stroke indicator: Extends cylinder life by helping to prevent over-stroking of the cylinder.

8. Optional counter: Helps indicate when maintenance is due to maximizing uptime.

9. Quick-disconnect coupler: For safe, simple hydraulic connection.

10. Optional 360° swivel: available for additional hose positioning flexibility.

11. Spring-loaded nut engagement: Keeps socket positioned on the nut for a faster and easier seating process.

12. Auto-engage nut rundown: For rapid and accurate seating of nuts.
