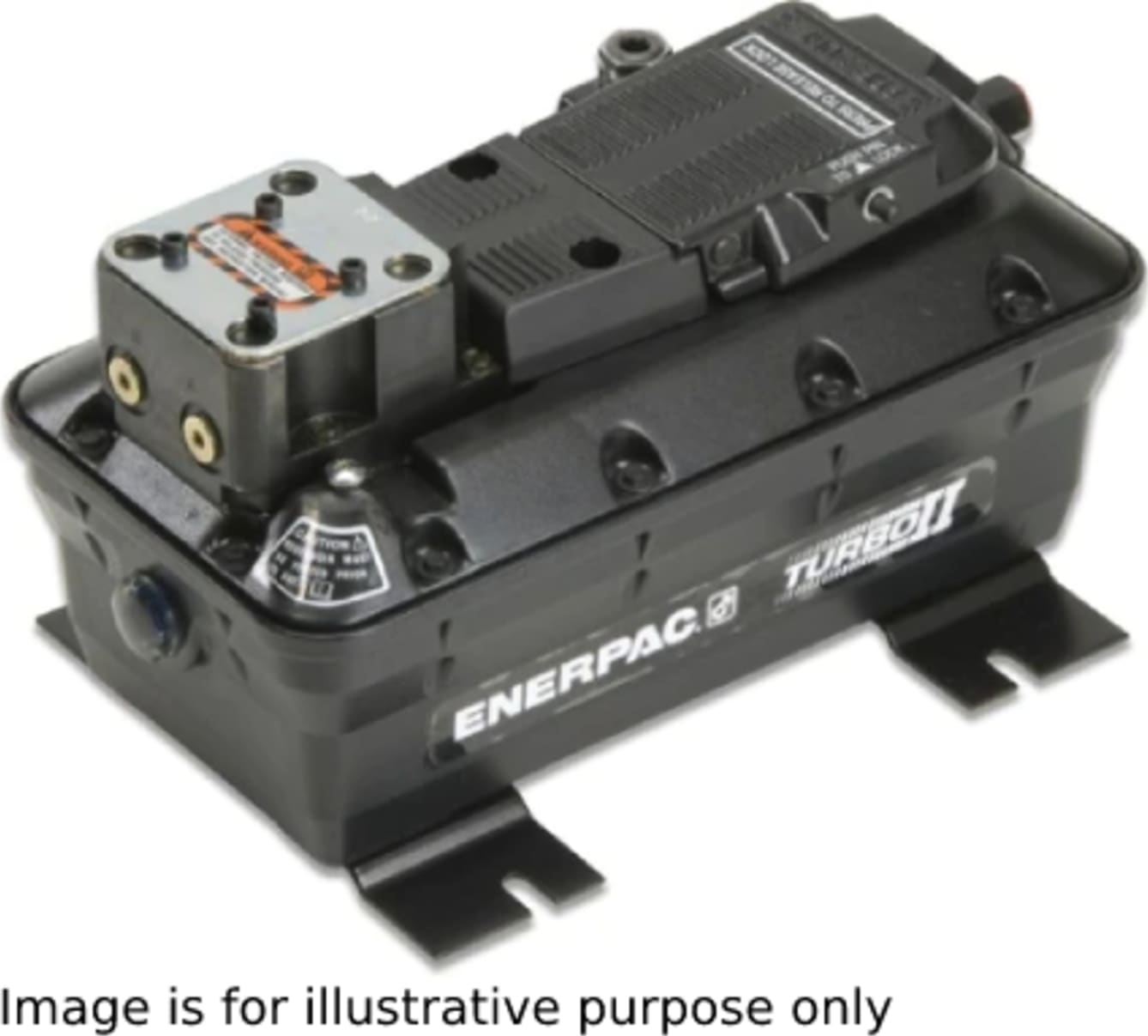

Turbo II Air Hydraulic Pump, Mount for Single DO3 Valve, 180 cu.in/min, 1.32 gal
The Enerpac PASG Series Turbo II air hydraulic pumps generate the hydraulic pressure you need using the air pressure you have available. The Air Saver Piston reduces air consumption and operating costs. They are ideal for providing the power and speed desired in simple clamping circuits. Turbo II air-hydraulic pumps are best suited to medium and lower cycle applications. At only 75 dBA, the Turbo II series helps to keep noise levels to a minimum.
PASG series
Momentary or continuous air inlet treadle
Suitable for mounting any single- or double-acting valve with a DO3 mounting configuration
Available with multiple valve manifold (2-gallon only)
Quick and powerful hydraulic supply in an economical air-powered unit
On-demand stall-restart operation maintains system pressure, providing clamping security
Externally adjustable pressure relief valve (behind sight glass)
The internal pressure relief valve provides overload protection
Reduced noise level to 75 dBA
Operating air pressure: 50-125 psi - enables the pump to start at low air pressure**
Hydraulic to air ratio: 45:1
Reinforced heavy-duty lightweight reservoir for applications in tough environments
Five valve mounting options provide flexibility in setup and operation
Fully serviceable air motor assembly
User-supplied valves
** NOTE: From 50-125 psi air inlet pressure. Performance is significantly diminished below 50 psi. Performance may vary compared to listed values due to seal friction, internal pressure drops and manufacturing tolerances. Be sure to allow some flexibility on the air inlet pressure.
