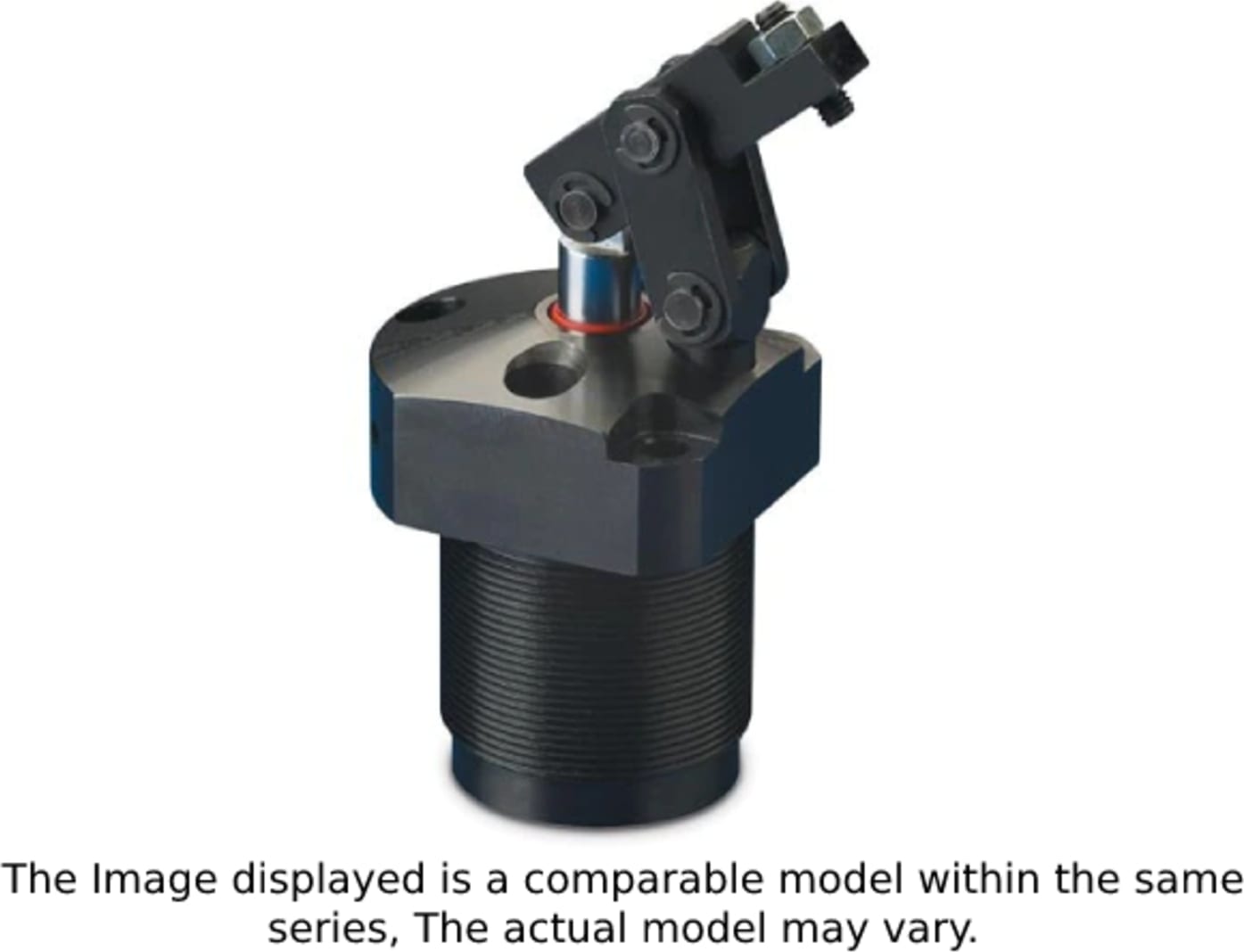

Link Clamp, 27,2 kN Force, 44.7 mm Stroke
The Enerpac LUCS282 is a link clamp with a clamping force of 27,2 kN and a stroke of 44.7 mm. The hydraulic cylinder pushes the linkage, pivoting the clamp arm into position. The design ensures a repeatable clamping location. The linkage can be re-positioned to clamp at 90, 180, or 270 degrees from ports. This clamp can be mounted using supplied bolts or held in place with a flange nut. This link clamp allows unobstructed part loading and high clamping forces. The hydraulic cylinders extend to provide clamping force and retract to allow part removal.
