Standard Clamp Arm for up to 8 kN Capacity Link Clamps

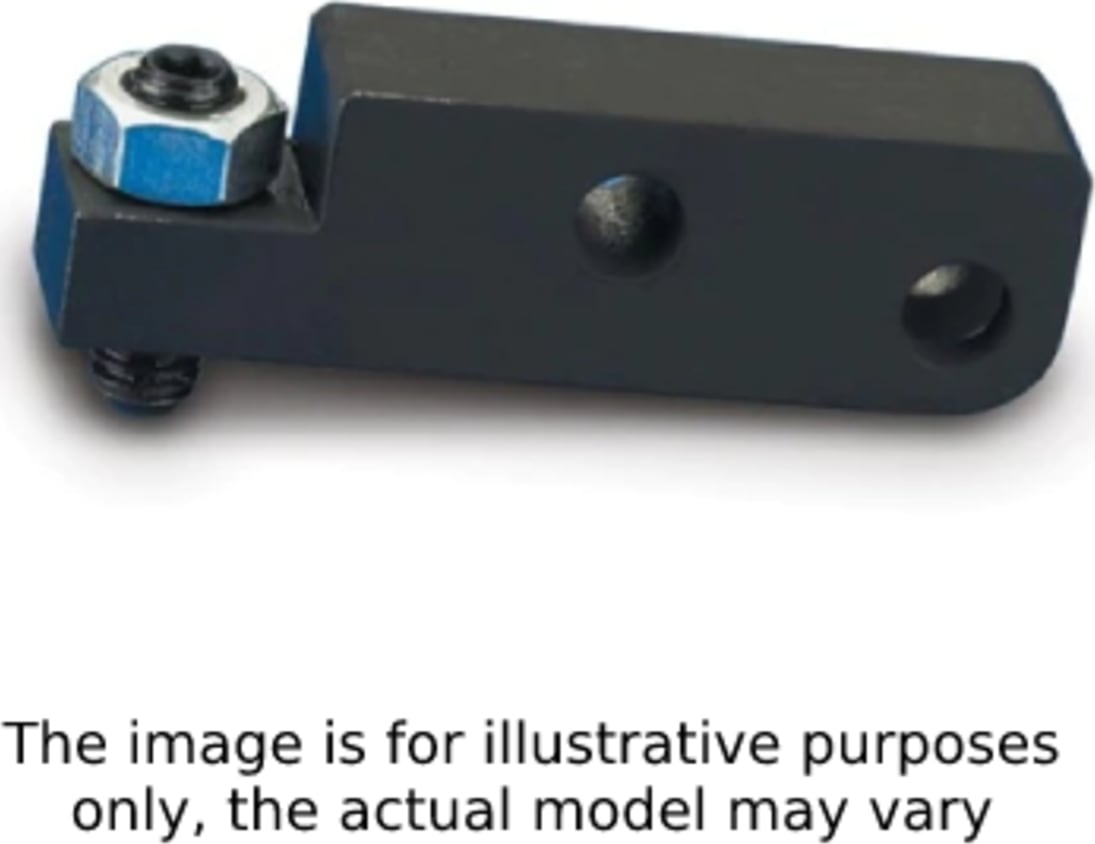

The LUCS82 is a standard clamp arm for up to 8 kN capacity link clamps. It has a screw and lock nut. The long arm is machinable.
The clamp arm should be parallel to the cylinder mounting surface within 3° to avoid damage to the cylinder and linkage. Use the included set screw to adjust the clamp arm alignment.
Different lengths of clamp arms will determine the amount of clamping force transferred to the workpiece. As the length increases, the clamping force decreases.
