Long Clamp Arm for 800 lbs Capacity Link Clamps

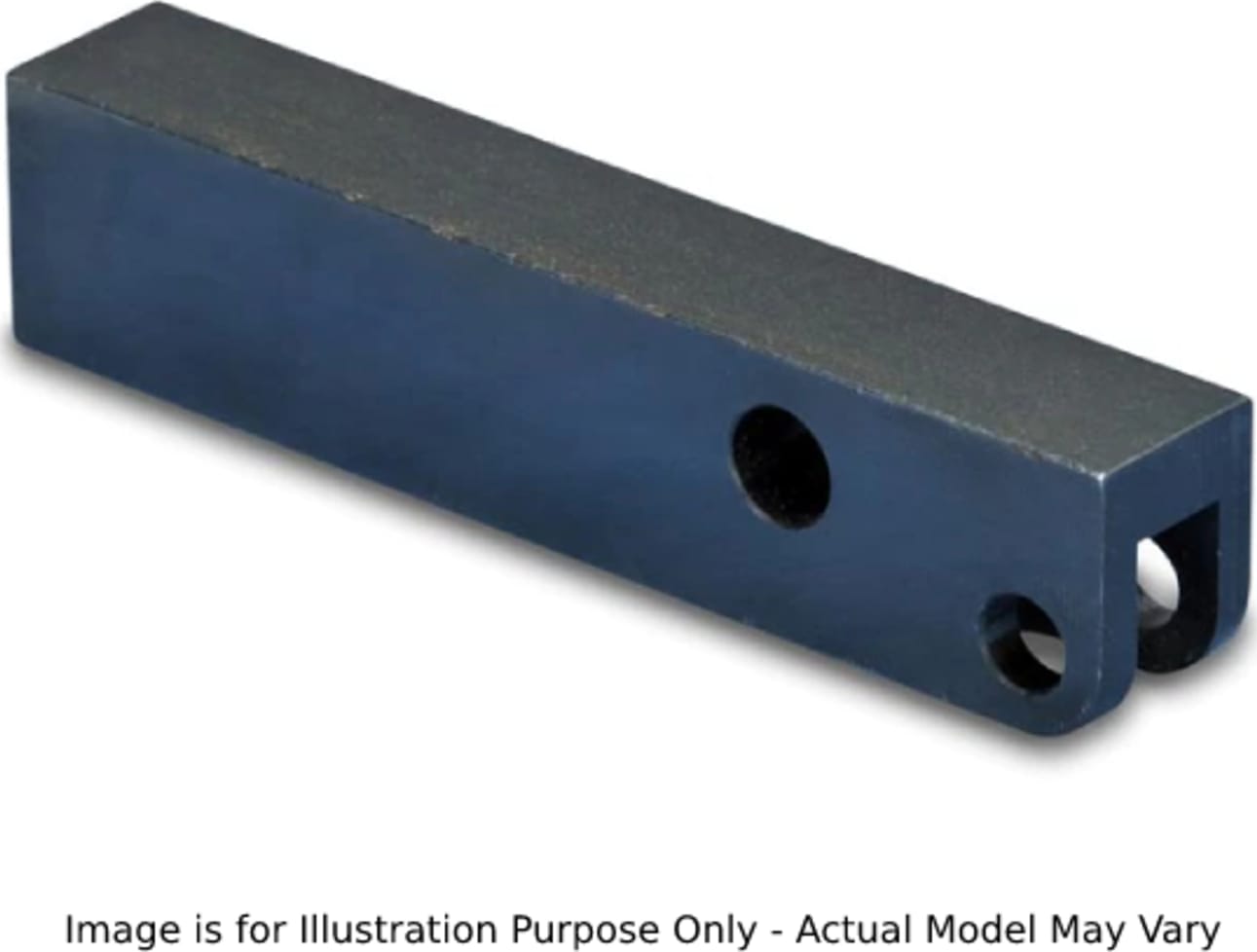

The Enerpac LCAL32 is a long clamp arm for 800 lbs capacity link clamps. The long arm is machinable. The standard arm includes a set screw and a lock nut.
Pressure vs clamping force
Different length clamp arms will determine the amount of clamping force transferred to the workpiece. As the length increases, the clamping force decreases.
The clamp arm should be parallel to the cylinder mounting surface within 3 degrees to avoid damage to the cylinder and linkage. Use the included set screw to adjust clamp arm alignment.
