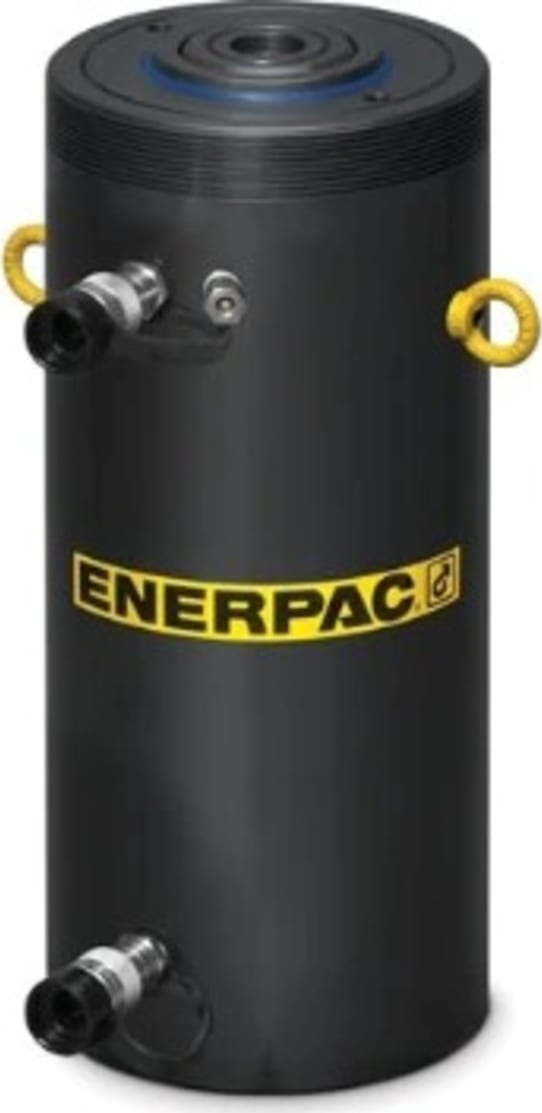

High Tonnage Hydraulic Cylinder, 113 Tons Capacity, 9.84" Stroke
Enerpac HCR-Series high tonnage hydraulic cylinders are an ideal solution for a wide variety of commercial and industrial lifting applications. HCR-Series models are double-acting with hydraulic advance and return. The hydraulic return feature allows greater control during lowering and provides positive retraction of the plunger. Note that the HCR-Series cylinders are not designed for pulling applications.
Capacities range from 62 to 1196 US tons [550 to 10644 kN]. Refer to the product data markings on the cylinder base for the capacity rating of your cylinder model. All standard production HCR cylinders are designed for 10150 psi [700 bar] maximum working pressure. A hardened grooved saddle is standard equipment on all models. A user-installable tilt saddle is available as an optional accessory. Refer to Section 12 of this manual for cylinder weights, oil volumes, dimensions and additional specifications.
HCR Series Comparison table
| Model | Maximum Operating Pressure (psi) | Capacity Class (tonnage) | Maximum Cylinder Capacity Advance (tons) | Stroke (in) | Collapsed Height A (in) | Extended Height B (in) | Return Type | Plunger Type |
| HCR506 | 10150 | 50 | 62 | 5.91 | 11.14 | 17.05 | Double-Acting, Hydraulic Return | Solid |
| HCR508 | 10150 | 50 | 62 | 7.87 | 13.62 | 21.5 | Double-Acting, Hydraulic Return | Solid |
| HCR5010 | 10150 | 50 | 62 | 9.84 | 15.59 | 25.43 | Double-Acting, Hydraulic Return | Solid |
| HCR5012 | 10150 | 50 | 62 | 11.81 | 17.56 | 29.37 | Double-Acting, Hydraulic Return | Solid |
| HCR1002 | 10150 | 100 | 113 | 1.97 | 7.95 | 9.92 | Double-Acting, Hydraulic Return | Solid |
| HCR1004 | 10150 | 100 | 113 | 3.94 | 9.92 | 13.86 | Double-Acting, Hydraulic Return | Solid |
| HCR1006 | 10150 | 100 | 113 | 5.91 | 11.89 | 17.8 | Double-Acting, Hydraulic Return | Solid |
| HCR1008 | 10150 | 100 | 113 | 7.87 | 14.92 | 22.8 | Double-Acting, Hydraulic Return | Solid |
| HCR100010 | 10150 | 1000 | 1196 | 9.84 | 25.28 | 35.12 | Double-Acting, Hydraulic Return | Solid |
| HCR100012 | 10150 | 1000 | 1196 | 11.81 | 27.24 | 39.06 | Double-Acting, Hydraulic Return | Solid |
