• Bolt Diameter (in): 1.44
• Bar Grade (ksi): 150
• Nut A/F (in): 2.25
• Provide fast and accurate performance in difficult, narrow access foundation tensioning applications
• Versatile design is compatible with Williams, Dyson, Macalloy, and similar studs.
• The ideal solution that fits both standard and narrow access applications

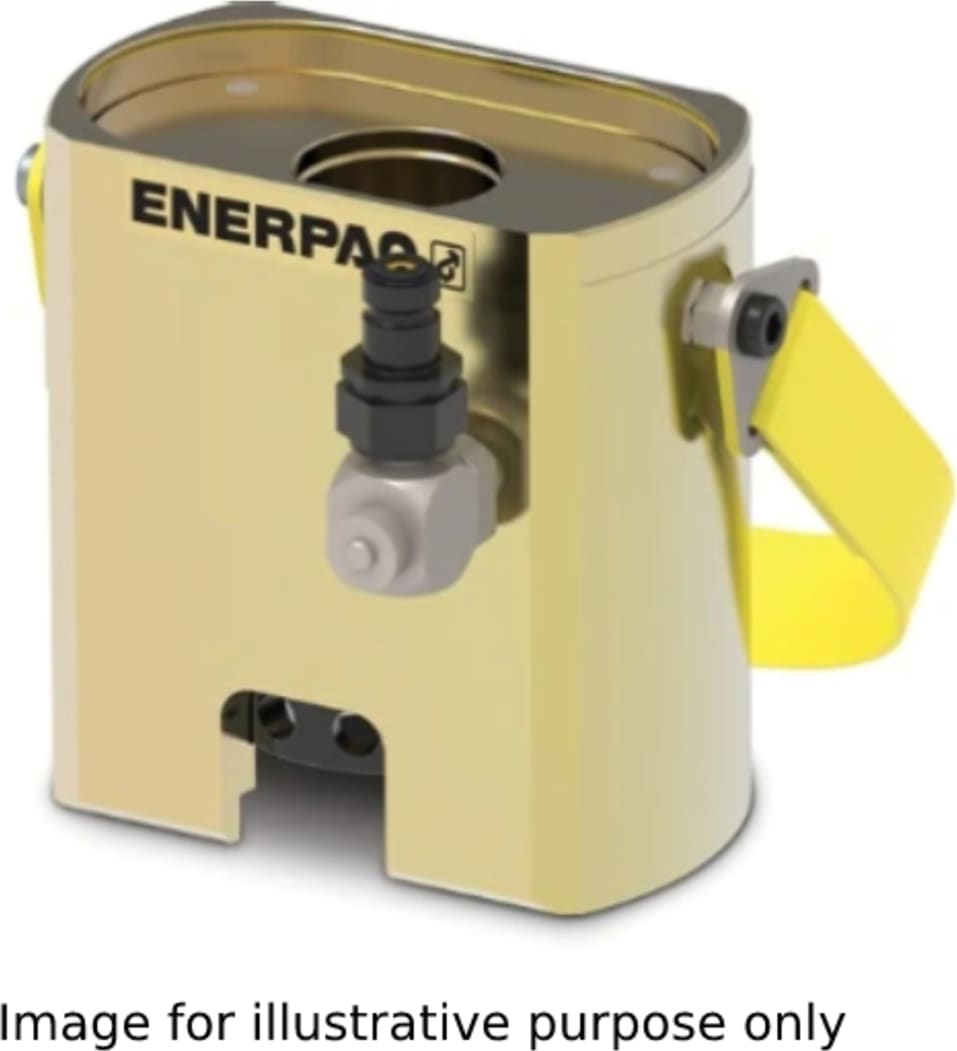

FTE-Series, Foundation Bolt Tensioners

Similar to Standard Foundation Tensioners, Elliptical Tensioners were explicitly designed for foundation fastening applications on wind towers. The existing hex nut was used as a reaction point to eliminate thread fit misalignment.

Unlike Standard FTR-Series Tensioners, FTE-Series Tensioners feature an elliptical geometry, enabling fit in limited access foundation applications without reducing load capabilities.

Operators may access the nut with a Tommy bar rather than employing an offset rundown gear.

Elliptical tensioners are ideal for close clearance applications or a universal tool that will work in nearly any foundation application, whether standard or narrow access.

• FTE-Series Foundation Bolt Tensioners provide fast and accurate performance in difficult, narrow access foundation tensioning applications
• Standard models are available for 75, 150 ksi, and metric style Williams, Dyson, and Macalloy® bar types
• Ideal universal solution that fits both standard and narrow access applications
