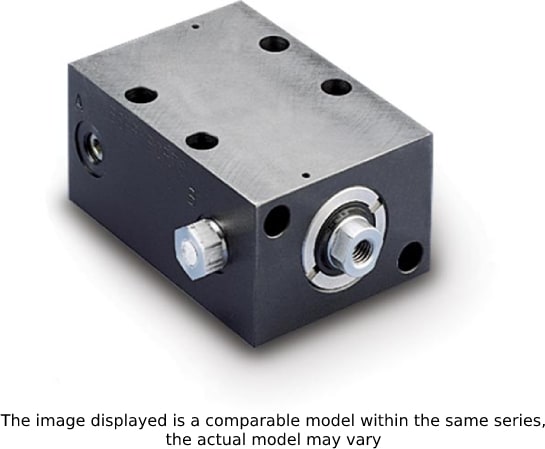

Enerpac CSB40252 - Block Hydraulic Cylinder, 9750 lbs Capacity, .98" Stroke, Single-Acting

Name: Enerpac CSB40252 - Block Hydraulic Cylinder, 9750 lbs Capacity, .98" Stroke, Single-Acting
Brand: Enerpac
SKU: EnerpacCSB40252
Price: 602.00 USD
Availability: InStock

0 reviews | UPC: 662005104505 | Model: Enerpac CSB40252

Compare

Block Hydraulic Cylinder, 9750 lbs Capacity, .98" Stroke, Single-Acting

Maximum cylinder capacity advance (lbs): 9750
Stroke (in): 0.98
Return type: Single-acting, spring return
Oil connection alternatives: cylinders incorporate both manifold mount and plumbed options to meet your fixturing needs
Compact cylinder design does not require large amounts of space on your fixture
Integral wiper ring, keeps contaminants out of cylinder to extend life
Internal threaded plunger
Manifold O-ring ports
Black oxide base
Hard chrome-plated plunger

View Product Details

Available Options

Your Price: $602.00

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Enerpac CSB40252 Block Hydraulic Cylinder, 9750 lbs Capacity, .98" Stroke, Single-Acting	Enerpac CSB10182 Block Hydraulic Cylinder, 2400 lbs Capacity, .71" Stroke, Single-Acting	Enerpac CSB18252 Block Hydraulic Cylinder, 3800 lbs Capacity, .98" Stroke, Single-Acting	Enerpac CSB70252 Block Hydraulic Cylinder, 15200 lbs Capacity, .98" Stroke, Single-Acting
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Enerpac CSB40252

Maximum cylinder capacity advance (lbs): 9750
Stroke (in): 0.98
BSPP oil port
Strong return spring
Filtered vent plug

Block Hydraulic Cylinder, 9750 lbs Capacity, .98" Stroke, Single-Acting

The Enerpac CSB40252 is a single-acting block hydraulic cylinder featuring a 9750 lbs maximum cylinder capacity and a .98" stroke. This block cylinder is used for punching, pressing, riveting, and bending applications. In general, this cylinder is used for moving, positioning, lifting, opening, and closing.

CSB Series Comparison Table

Model	Maximum Cylinder Capacity Advance (lbs)	Stroke (in)	Cylinder Effective Area Advance (in²)	Oil Capacity Advance (in³)
CSB10182	2400	0.71	0.48	0.35
CSB18252	3800	0.98	0.76	0.75
CSB40252	9750	0.98	1.95	1.92
CSB70252	15200	0.98	3.04	3
