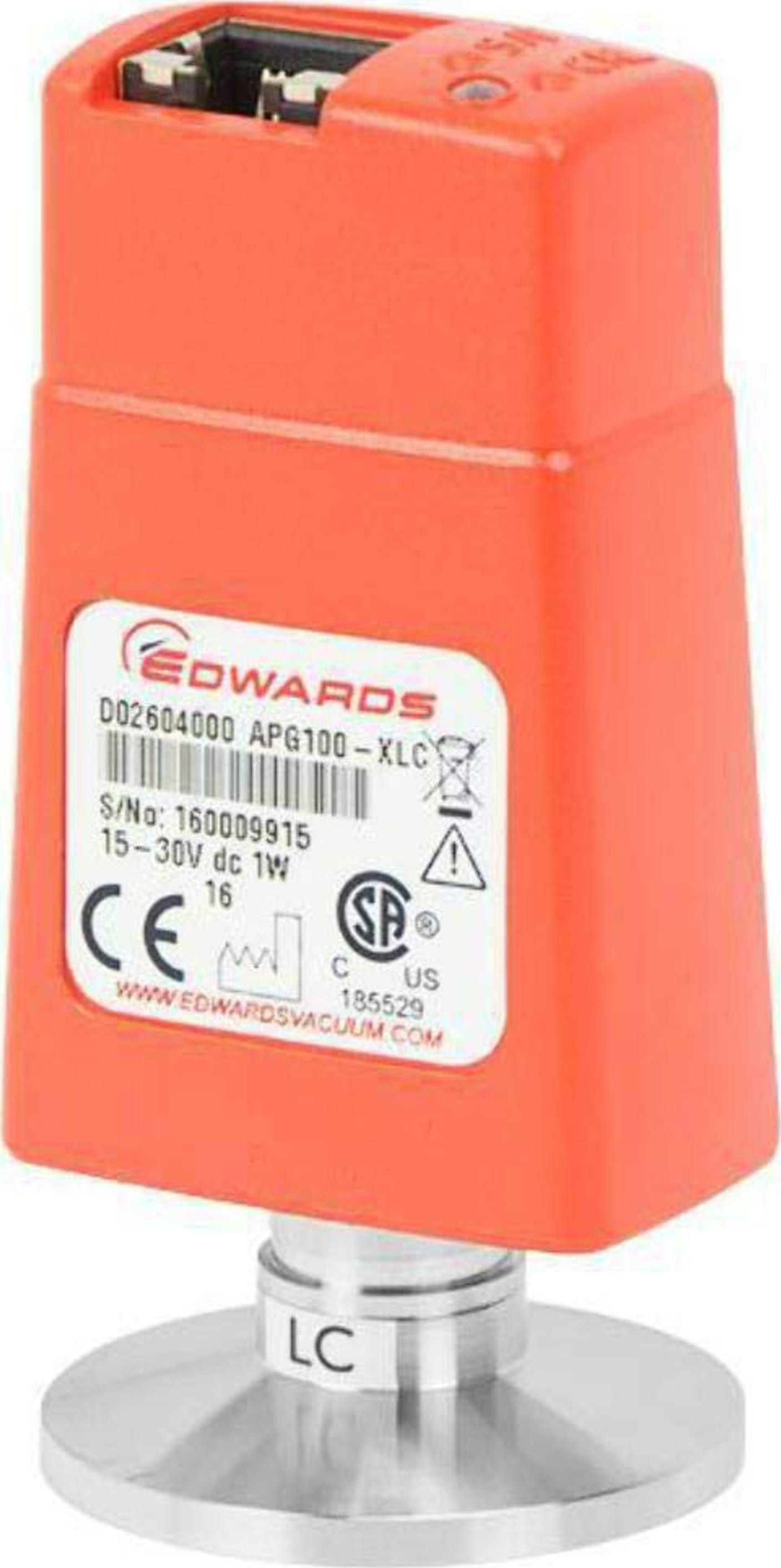

Edwards APG100-XLC - Active Linear Pirani Vacuum Gauge with Corrosion Resistant Filament

Name: Edwards APG100-XLC - Active Linear Pirani Vacuum Gauge with Corrosion Resistant Filament
Brand: Edwards
SKU: EdwardsAPG100-XLC
Price: 543.20 USD
Availability: InStock

0 reviews | Catalog: D02604000 | Model: Edwards APG100-XLC

Compare

Active linear Pirani vacuum gauge with corrosion resistant filament. Range 1000 to 10E-4 mbar. With replaceable stainless steel sensor tube with NW25 vacuum flange. Adjustable set-point and LED for status indication

Cable connections and gauge adjustment conveniently located, thereby minimising the space envelope required for access
Sensor tube can be baked to 150 oC
Adjustable set-point for simple process control and interlocking
Remote calibration possible
NW16, NW25 and DN16CF flange options for easy connection to vacuum systems
Linear output - 1 Volt per decade for easy interface with vacuum control systems

View Product Details

List Price: $582.00

In Stock:

View Payment Options

Recommended for you

Edwards APG100-XLC

Cable connections and gauge adjustment conveniently located, thereby minimising the space envelope required for access
Sensor tube can be baked to 150 oC
Adjustable set-point for simple process control and interlocking
Remote calibration possible
NW16, NW25 and DN16CF flange options for easy connection to vacuum systems

Active Linear Pirani Vacuum Gauge with Corrosion Resistant Filament

Edwards APG100 series Active Pirani vacuum gauges are available in 2 models. The APG100-XM is the standard model and measures to 10 -3 mbar, the APG100-XLC is a corrosion resistant version with measurement to 10 -4 mbar.

Both gauges feature compact size for easy installation, a linear output and a replaceable sensor tube. These gauges are compatible with all Edwards TIC instrument controllers and other Active gauge controllers and displays. They are also CSA, C/US approved as well as fully RoHS compliant due to their lead-free construction.

Edwards APG100-XLC General Specifications
Mass	85 g
Internal volume	5 cm³
Enclosure rating	IP40
Measurement range (APG100-XM)	Atmosphere to 10^-3 mbar
Measurement range (APG100-XLC)	Atmosphere to 10^-4 mbar
Accuracy (APG100-XM)	Typically +/- 15% at <100 mbar
Accuracy (APG100-XLC)	Typically +/- 15% at <10 mbar
Maximum over-pressure	10 bar absolute
Operating temp range	5^o to 60^o C
Storage temp range	-30^o to 70 ^oC
Bake-out with no electronics	150 ^oC
Humidity	80% RH up to 31 ^oC decreasing linearly to 50% RH at 40 ^oC and above
Maximum altitude	3000 m
Filament temperature	100 ^oC above ambient
Electrical supply voltage	15 to 30 V d.c. nominal
	13.5 V d.c. minimum
	32 V d.c maximum
Power consumption	1 W
Output signal	0 to 10 V d.c. nominal
Set-point – open collector transistor
Rating	30 V d.c. 100 mA
Range of set-point	1.8 to 9.2 V dc
Fixed hysteresis	500 mV (1/2 decade)
Level setting resolution	6 mV
