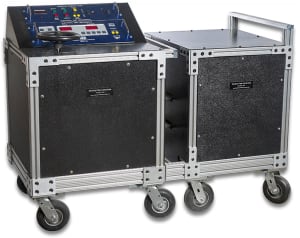

The PI-5000 is composed of the PI2500 and the AUX-5000 auxiliary output unit, which when combined gives the unit the capability of testing 4000 ampere breakers, with essentially the same specifications as the proven PI-4000B. The auxiliary unit is smaller than the PI2500, so it can also be maneuvered easily in tight spaces, or lowered into shafts and manholes that would not be possible with a larger single piece unit.
The AUX-5000 enclosure is easily attached to the PI-2500 output stabs by means of horizontal bus bars with stainless steel socket head cap bolts and sturdy nut plates. The AUX-5000 enclosure is simply rolled into place to mate with the PI-2500 test set, and then the cap screws are tightened. It is recommended to use a stubby fine pitch ratchet wrench or a pneumatic air ratchet, with an allen wrench hex bit.
The main electrical power and ground connections to the AUX-5000 are the same twist-lock connectors as those on the PI-2500. Power cables attached and stored in a compartment in the AUX-5000 are then connected to the PI-2500. The connectors are color-coded for proper connections to be connected with black to black and red to red.
There is also a control cable with easily twist lock quick connectors which connects from the AUX-5000 to the PI-2500.
The output of the AUX-5000 accommodates standard breaker stabs, for continuous output of 4000 amperes. It can also be configured in series mode for a continuous output of 2000 amperes. The configuration switch on the PI2500 must be set to 4000 or 2000 for proper output readings.
The combined unit, known as the PI-5000, can only be used on 480 VAC.
Applications
This test set will test low-voltage, molded-case and metal-clad, direct acting AC circuit breaker from various manufactures. The test set can also be used on high current applications like ratio transformers, and heat runs. Using SCR’s the PI-5000 eliminates closing time errors. Initiation at the zero crossover point eliminates DC offset in the current waveform and results in accurate, repeatable test results even with short-duration currents for high speed solid state or electromechanical trip devices. The reduced length and width of the test set allows it to be maneuvered in tight spaces and it can be lowered into a shaft 26” x 30”, or a manhole 40” diameter. Provisions have been made on the bottom of the frame for a lifting sling to be attached without slipping from the corners. The rugged silver plated copper stab adaptors supplied with the test set are designed to be used for both vertical and horizontal stabs, and have both ½” and ¾” output plates.
