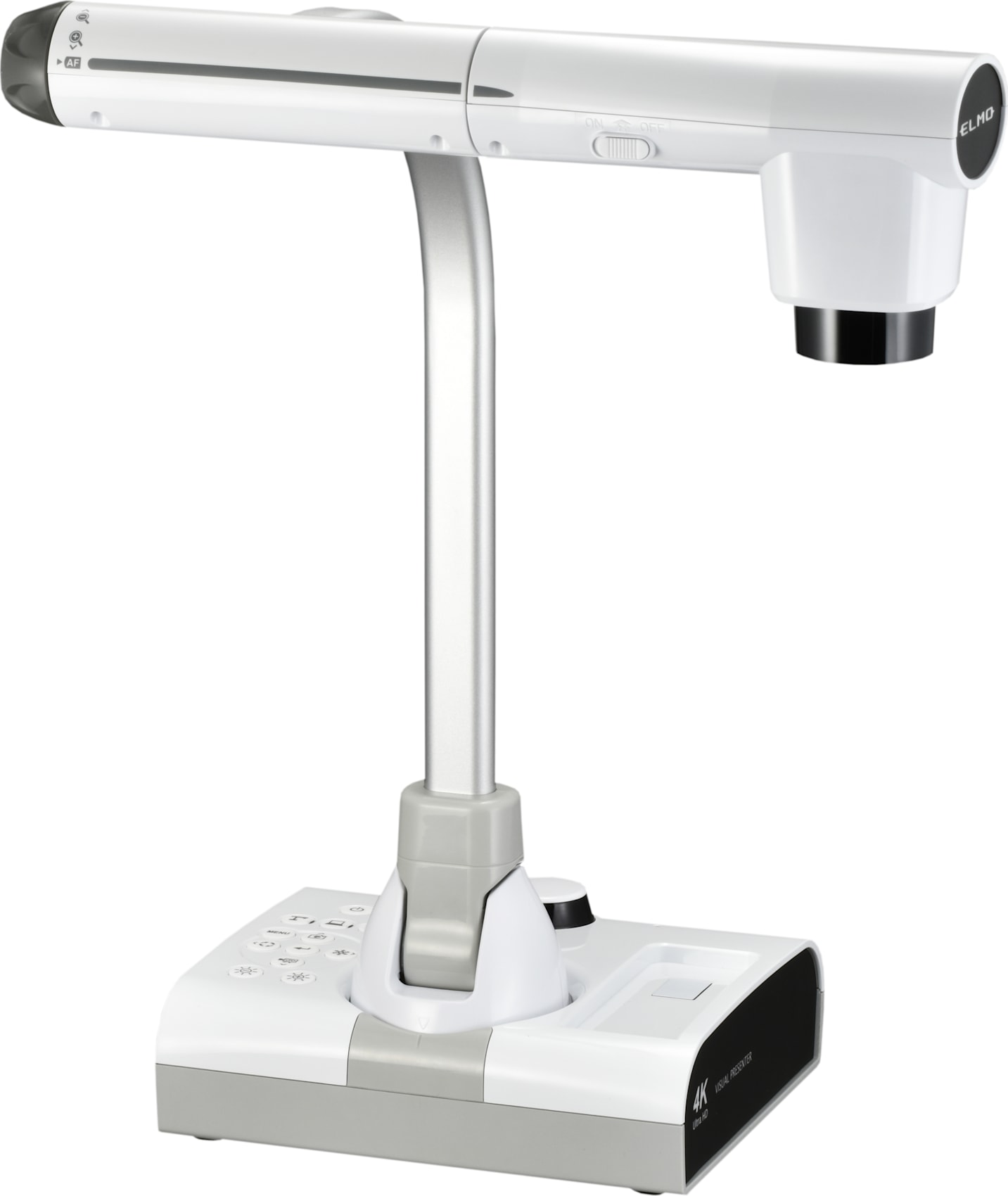

ELMO TT-12F - Document Camera 4K 12x Digital Zoom 60 FPS

Name: ELMO TT-12F - Document Camera 4K 12x Digital Zoom 60 FPS
Brand: ELMO
SKU: ELMOTT-12F
Price: 868.18 USD
Availability: InStock

0 reviews | Catalog: 1378 | Model: ELMO TT-12F

Images (16)

Compare

TT-12F Visual Presenter

4K resolution
True UHD-1 resolution 3840 x 2160 16:9
MAX resolution 4160 x 3120
12x Optical, 2x Sensor and 12x Digital Zoom = 288x total zoom
60 fps in MAX mode 1920 x 1080, 20 fps in High-Res mode 3849 x 2160 on USB 3.0
USB 3.0, YUY2 compression, USB 2.0, M-JPEG
HDMI In/Output, VGA In/Out
Record to USB or SD Card at 4K Resolution
Up to A3 Shooting Area
Optional Microscope adaptor
5-Year Warranty

View Product Details

List Price: $1,299.00

Your Price: $868.18

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series


Product	ELMO TT-12F TT-12F Visual Presenter
Price
In Stock
Flexible Neck	Yes
Built-in Microphone	No
Compare	Add to compare

Recommended for you

ELMO TT-12F

TT-12F Visual Presenter
288x Zoom capability (12x Optical + 12x Digital + 2x Sensor)
Captures in 4K Ultra HD at 30fps
HDMI, RGB and USB 3.0 outputs
3.5mm stereo minijack
Record to USB or SD at 4K resolution

Document Camera 4K 12x Digital Zoom 60 FPS

Meet the most powerful TT Series Visual Presenter ever. The ELMO TT-12F offers stunning images in true 4K Ultra HD resolution over both HDMI and USB 3.0 outputs. The exceptionally powerful 288x total zoom lens (12x optical + 12x digital + 2x sensor) will never leave a small detail unnoticed.

The TT-12F document camera allows you to record to USB or SD at 4K resolution. It has HDMI and RGB passthrough with up to A3 shooting area. It captures in 4K Ultra HD at 30fps frame rate. It provides auto/zoom sync focus with 1/2.3" CMOS image pick-up element and white LED illumination.

The ELMO TT-12F visual presenter includes a five-year warranty.

288x zoom in 4K Ultra HD

The TT-12F offers 288x digital zoom at 4K resolution, capturing video in True 4K Ultra HD at 30fps or Full HD at 60fps without any loss of quality.

Multiple Outputs

The TT-12F comes with Super Speed USB 3.0 for up to 4K resolution, HDMI, and RGB/VGA output options to connect seamlessly to a wide variety of devices. The TT-12F also allows for HDMI passthrough.

A3 Size Shooting Area

The TT-12F captures an area of up to A3 landscape.

Remote Control Dock

The TT-12F comes with a built-in remote control dock so you'll never misplace your remote control again.

Model: TT-12F Specifications
Description	4K Ultra HD Document Camera
General Specifications
Power source	12VDC (AC adapter AC100 - 240V)
Power consumption	21W
Outside dimensions	W349 x D377 x H432mm (When setup) W195 x D294 x H475mm (When folded)
Weight	Approx. 3kg (Main body only)
Input selection	Main/External (x2)
Output terminal	RGB output Mini Dsub 15P connector, female x 1 HDMI output terminal x 1 Line-out terminal φ 3.5mm stereo minijack x 1
Input terminal	RGB input Mini Dsub 15P connector, female x 1 HDMI input terminal x 1 Mic-in / Line-in terminal φ 3.5mm stereo minijack x 1
Ext. control terminal	USB device (3.0 compliant) Type B receptacle x 1
Memory Interface	SD card slot x 1 USB host (2.0 compliant) Type A receptacle x 1
Main Camera
Lens	f=4.0mm ～ 48.0mm（12x zoom lens）　F3.2 ～ F3.6
Frame rate	30fps
Limit of focus adjustment	From lens surface 50mm ～∞（f=4.0mm - 23.4mm） 200mm ～∞（f=23.4mm and higher）
Zoom	24x (Optical zoom 12x + Sensor zoom 2x)
Digital zoom	12x
Focus	Auto/Zoom Sync
Image pick-up element	1/2.3" CMOS
Effective pixels	Horizontal 3840, Vertical 2160 / 60fps Horizontal 3520, Vertical 2640 / 30fps
Resolution	HDMI : 3840 × 2160 / 1920 × 1080 / 1280 × 720 RGB : 1920 × 1080 / 1280 × 720 / 1024 × 768 USB : 3840x2160 / 1920 × 1080 / 1280 × 720 / 3200 × 2400 / 1600 × 1200 / 1024 × 768 / 640 × 480
White balance	Auto / One-push / Fluorescent / Indoor / Outdoor
Brightness adjustment	Manual
Color/B&W selection	Provided
Image rotation	90°／ 180°
Image mode	Normal / Emphasis / Color emphasis / Black/white / DLP projector
Contour correct	Provided
Pause	Provided
Still image recording	Provided
Video recording	Provided
Flicker correction	60Hz ／ 50Hz
Illumination Device
Illumination	White LED

Document Camera Attributes
Features	Microscope Adapter
Type	Flex Arm
Optical Zoom	12 Zoom Magnification
Video Outputs	1X HDMI, USB Video, VGA/D-Sub
Document Cameras/Document Cameras Template
Flexible Neck	Yes
Built-in Microphone	No
General Attributes
Warranty	5 YEARS
Product Weight	6.61 LBS
Shipping Weight	7.60 LBS
Product Height	17.00 IN
Product Length	14.84 IN
Product Width	13.74 IN
Shipping Height	17.00 IN
Shipping Length	14.84 IN
Shipping Width	13.74 IN
Country of Origin	Thailand
