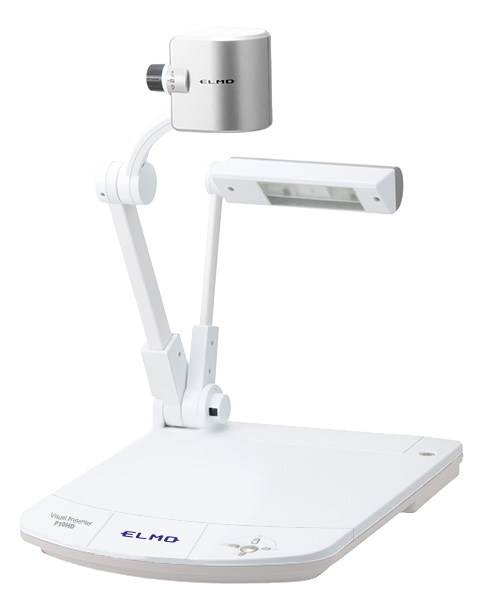

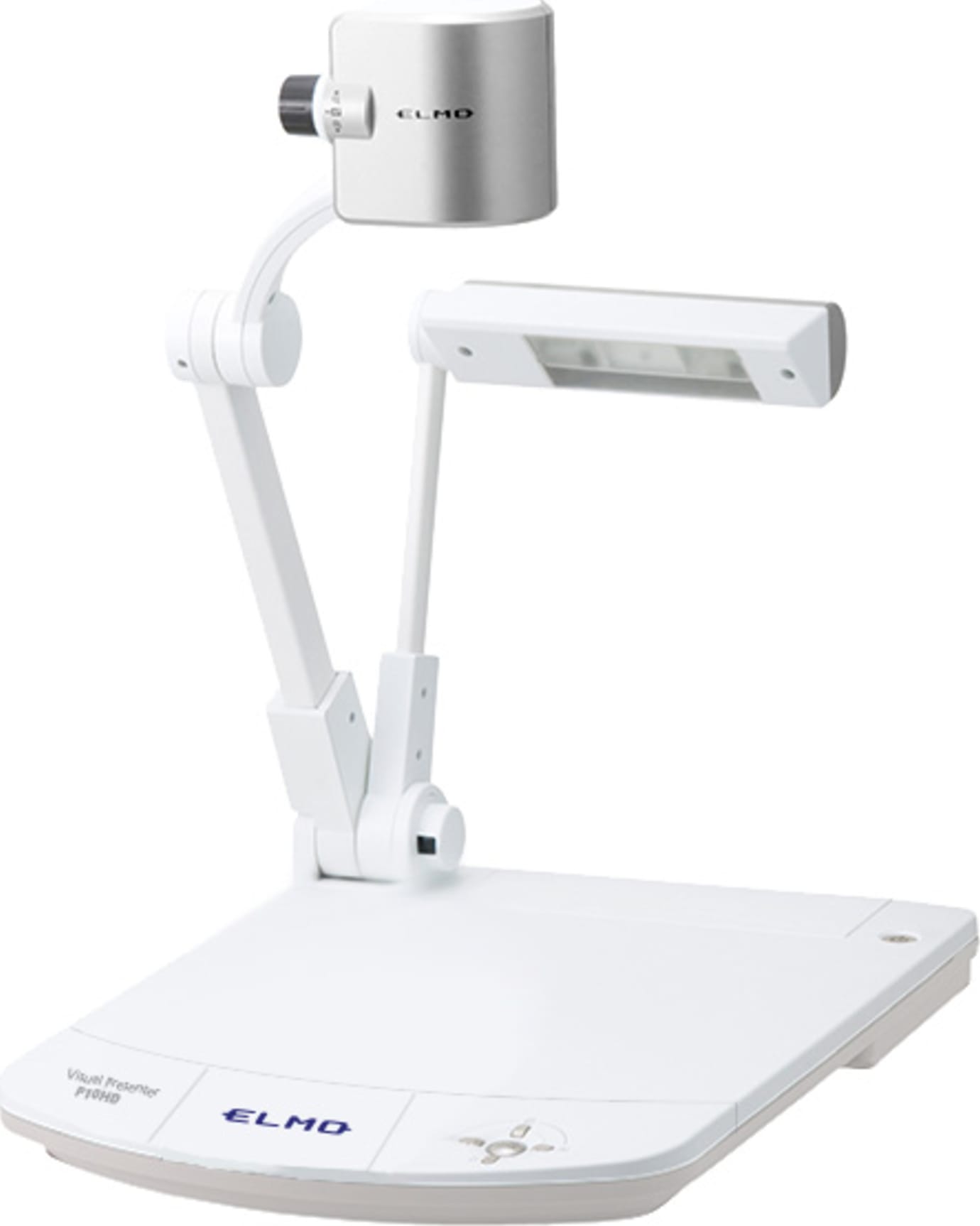

| Model: ELMOP10HD Specifications |
| Camera |
| Image pick-up device |
1/2.8" CMOS, 3,400,000 pixels |
| Total pixels |
2144(H) x 1588 (V) |
| Image pick-up device |
1920 (H) x 1536 (V) |
| Effective pixels |
1/2.8" CMOS, 3,400,000 pixels |
| Frame rate |
30 frames/sec. |
| Resolution - RGB output |
800 (H) x 800 (V) TV lines |
| Optics |
| Zoom |
Powered, 16x optical |
| Lens |
F2.7, f=4.9 mm to 78.4 mm |
| Shooting area |
| 1080p |
Max. 400x223mm Min.27x15mm |
| 720p |
Max. 400x223mm Min.27x15mm |
| SXGA |
Max. 400x320mm Min.27x22mm |
| WXGA |
Max. 400x248mm Min.27x17mm |
| XGA |
Max. 400x299mm Min.27x20mm |
| Focus |
Auto/Manual/Zoom Sync |
| Functions |
| White balance |
Auto/One-Push/Manual |
| Image mode |
Text 1, Text 2, Text 3, Graphics1, Graphics2l |
| Edge enhancement |
Provided (only for Graphics1 mode) |
| Still Image storage |
Provided |
| Movie storage |
Provided |
| Digital zoom |
8x |
| Gamma adjustment |
Provided (only for Graphics1 mode) |
| Image save |
SD memory card/SDHC memory card/USB memory |
| State presetting |
Up to 3 user settings |
| Support function |
Highlight, Mask, Scroll(in digital zoom), Mosaic, Split screen, PinP(Picture-in-Picture), Color filter, Pause, Image rotation, Positive/Negative conversion, Color/B&W selection |
| Interface |
| Input selection |
Main/External |
| Output terminal |
RGB output mini D-sub 15P connector, femalex1 HDMI output terminal x1 Line Out terminal Φ3.5mmstereo minijack x1 |
| Input terminal |
RGB input mini D-sub 15P connector, female x1 Mic In/Line Our terminal (shared), 3.5mm-diameter stereo jack x1 USB device (2.0 compliant) Mini-B receptacle x1 |
| Analog RGB output |
| 1080P |
1920x1080@60Hz |
| 720P |
1280x720@60Hz |
| SXGA |
1280 x 1024 @60Hz |
| WXGA |
1280 x 800 @60Hz) |
| XGA |
1024 x 768 @60Hz |
| HDMI output |
| Image output |
1080p/720p |
| Audio output |
PCM44.1kHz sampling frequency |
| Memory Interface |
SD memory card slot x1, USB host(2.0 compliant) Type A receptacle x1 |
| Others |
| Accessories |
AC Adapter, Power cord, RGB cable, USB cable, IR remote control, Strap(for remote control), AAA batteries(for remote control), Slide shooting adapter, Warranty card, Image Mate CD-ROM, Image Mate installation manual, Instruction manual(CD-ROM), Important safe guards |
| Power source |
12V DC (AC adapter AC100 - 240V) |
| Dimensions (WxDxH) |
Set up 14 5/8" x 19" x 21 5/8" (376 x 482 x 549 mm) |
| Dimensions (WxDxH) |
Folded 14 5/8" x 19" x 7 1/8" (376 x 482 x 181 mm) |
| Weight Approx. |
10.1 lbs (4.6 kg) |
