| Model: 1337-280 Specifications |
| Type |
Bundle |

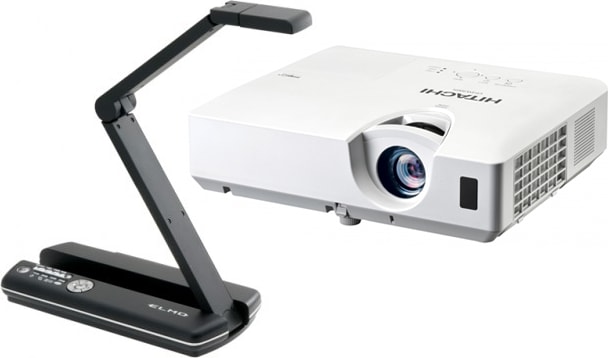

| Bundle Includes |
ELMO MO-1 Visual Presenter (Black)
Hitachi CP-EW301N LCD Projector |
| ELMO MO-1 Specifications |
| Main Camera |
| Lens |
F2.9 |
| Shooting area |
| 1080i |
Max.342×192mm Min.42.75×24mm |
| 720p 60fps |
Max.214×120mm |
| |
Min.26.75×15mm |
| 720p 30fps |
Max.342×192mm |
| |
Min.42.75×24mm |
| WXGA |
Max.342×214mm |
| |
Min.42.75×26.75mm |
| XGA |
Max.342×257mm |
| |
Min.42.75×32.125mm |
| Limit of focus adjustment |
From lens surface 2 inch (50mm)~∞ |
| Focus |
Auto/Manual |
| Image pick-up element |
1/4“ 3MP CMOS (1/3” 5MP ) |
| Total pixels |
Horizontal 2592, Vertical 1588 |
| Effective pixels |
Horizontal 2048, Vertical 1536 |
| Sync, system |
Internal |
| HDMI output |
Image output
1080i
720p (Motion priority mode)
720p Image angle priority mode)
Audio output |
| Analogue RGB output |
Analogue RGB output 0.7V (p-p)
75Ω unbalanced
Sync, signal
WXGA
Horizontal negative polarity
Vertical positive polarity
|
| White balance |
Auto/Outdoor/Fluorescent light/Incandescent lamp |
| Brightness control |
Provided |
| Image rotation |
| Camera image |
0°/180° |
| Still image |
0°/90°/180°/270° |
| Edge effect |
Provided |
| Pause |
Provided |
| Still image capture |
Provided |
| Flicker correction |
60Hz/50Hz |
| General |
| Power source |
DC5V(AC adapter AC100~240V)
Power supply from USB |
| Power consumption |
5.0W |
| Outside dimensions |
W101×D416×H338[mm] (When setup)
W101×D226×H28[mm] (When folded) |
| Weight |
Approx.590g |
| Output terminal |
RGB output Mini Dsub 15P connector female×1
HDMI output Type D Micro HDMI terminal |
| Input terminal |
RGB input Mini Dsub 15P connector female×1
HDMI input Type A HDMI terminal |
| USB interface |
USB 2.0 High Speed, Full Speed compliant
USB VIDEO CLASS Ver.1.1 compliant
Type Mini B receptacle×1 |
| Memory interface |
SD card slot×1 |
| Illumination Device |
| Illumination |
White LED |
| Hitachi CP-EW301N Specifications |
| Display |
| Projection Technology |
3LCD, 3 chip technology |
| Resolution |
WXGA - 1280 x 800 |
| White Light Output |
3,000 ANSI lumens |
| Color Light Output |
3,000 ANSI lumens |
| Colors |
16.7 million colors |
| Aspect Ratio |
Native 16:10 and 4:3 / 16:9 compatible |
| Contrast Ratio |
2000 : 1 (using active IRIS) |
| Throw Ratio (distance : width) |
1.5 - 1.8 : 1 |
| Focus Distance |
35" - 453" |
| Display size |
30" - 300" |
| Lens & Operation |
| Lens |
F = 2.1 - 2.3, f = 19 - 23 mm, x 1.2 manual zoom |
| Lamp Wattage |
225W |
| Expected Lamp Life* |
Approximately 5,000 hours (standard mode); 10,000 hours (Eco-2 mode) |
| Expected Filter Life** |
Approximately 5,000 hours |
| Speaker Output |
16W |
| Keystone |
+/- 30º vertical only |
| Compatibility |
| Computer |
VGA, SVGA, XGA, WXGA; WXGA+/SXGA/SXGA+/UXGA (compressed) MAC 16" |
| H-Sync |
15 kHz - 106 kHz |
| V-Sync |
50 Hz - 120 Hz |
| Composite Video |
NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM |
| Component Video |
480i, 480p, 576i, 720p, 1080i, 1080p |
| HDMI |
480i, 480p, 576i, 720p, 1080i, 1080p, Computer signal TMDS clock 27 MHz - 150 MHz |
| Connectors |
| Digital Input |
HDMI x 1 (HDCP compliant) |
| Computer Input |
1 15-pin mini D-sub x 1 |
| Computer Input |
2 15-pin mini D-sub x 1 (shared with Monitor out) |
| Computer Monitor Output |
15-pin mini D-sub x 1 (shared with Computer in 2) |
| Video Input |
S-Video: N/A, Composite Video: RCA jack x 1, Component Video: 15-pin mini D-sub x 2 (shared with computer in 1, in 2 Monitor out) |
| Audio Input |
3.5mm stereo mini jack x 2, RCA jack (L/R) x 1 |
| Audio Output |
3.5mm stereo mini jack x 1 |
| Network LAN Wired |
RJ-45 port |
| Network LAN Wireless |
N/A |
| USB |
Type B x 1 (mouse control) |
| Control Terminals |
9-pin D-sub x 1 (RS-232 control) |
| Ratings & Warranty |
| Power Supply |
AC100-120V / AC220-240V, 50/60Hz |
| Power Consumption |
330W |
| Operating Temperature |
41ºF - 95ºF (5ºC - 35ºC) |
| Dimensions (W x D x H) |
12.6" x 9.7" x 3.4" (excluding protruding parts) |
| Weight |
Approximately 6.8 lbs. |
| Approvals |
UL 60950-1 / cUL FCC Part 15 subpart B class B |
| Warranty |
3 year limited parts and labor, Extended Service Contract available (additional cost) |
