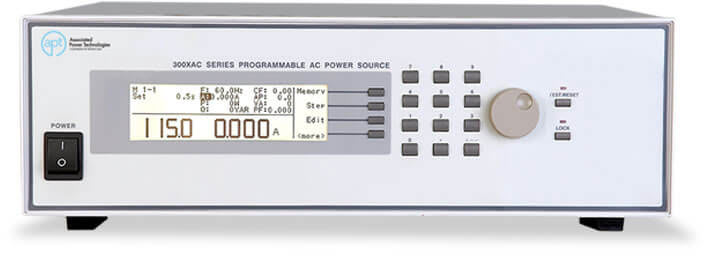

EEC 00340XAC - 1 Phase, 4 kVA AC Power Source

0 reviews | Model: EEC 00340XAC

Compare

1 Phase, 4 kVA AC Power Source, CE Listed

Power output: 4 kVA
Voltage output: Up to 520 VAC
Max current: 36.8 A/ 18.4 A
Frequency: Up to 1000 Hz
Modular design allows operator to connect up to 3 instruments together for 1Ø or 3Ø applications requiring up to 18kVA of AC power
50 built-in memory locations with 9 test steps
Standard DC output capability
Transient feature simulates voltage variations, brownouts, and transient voltage conditions
Constant current output with over current fold back feature
Rack mount handle kit included

View Product Details

List Price: $10,999.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the EEC 00340XAC

EEC 39140 Linking Cable 2.6 FT 310XAC, 320XAC

Catalog: 39140

(0)

In Stock!

Add to Cart

EEC 39203 Terminal Block Shorting Bar$460XAC

Catalog: 39203

(0)

In Stock!

Add to Cart

EEC 39894 EXTERNAL TVS KIT Input Voltage Protection See Instruction Sheet: 39898

Catalog: 39894

(0)

In Stock!

Add to Cart

EEC 38305 GPIB Interface Card#620L,76xx, 7705, 7710, 7715, 7720, 82xx$3xxXAC, 4xxXAC,...

Catalog: 38305

(0)

In Stock!

Add to Cart

EEC 38819 Ethernet Interface Card#620L, 76xx, 7705, 7710, 7715, 7720, 82xx,...

Catalog: 38819

(0)

In Stock!

Add to Cart

EEC 39136 Linking Card 310XAC, 320XAC

Catalog: 39136

(0)

In Stock!

Add to Cart

EEC 39353 Schuko Plug Adaptor, All Power Supplies, All Power Supplies

Catalog: 39353

(0)

In Stock!

Add to Cart

APT 00340XAC - 1 Phase, 4 kVA AC Power Source

Power output: 4 kVA
Voltage output: Up to 520 VAC
Max current 36.8 A/18.4 A
Frequency: Up to 1000 Hz
Modular design allows operator to connect up to 3 instruments together for 1Ø or 3Ø applications requiring up to 18kVA of AC power

Our 300XAC Series modular AC power sources incorporate the latest in modular technology, making them ideal for the most demanding applications. These versatile AC power sources can be configured for 1Ø stand-alone operation or linked together for up to 16.2 kVA of AC power in 1Ø or up to 18 kVA of AC power in 3Ø output configurations.

The Modular AC Source Advantage

What is a modular AC power source?

The term modular to define the capability of the 300XAC Series to be interconnected. The interconnection among up to three individual 300XAC Series Power Sources, allows for higher power outputs and different power configurations than an individual instrument could allow for Parallel or Polyphase modes.

What is Parallel mode?

Parallel mode allows the operator to increase the output current of the system by a factor of 2 or 3 depending on the number of sources that are interconnected.

What is Polyphase mode?

Polyphase mode allows the operator to increase the total power output of the system as well as change the output power configuration of the system.

Advantages

SmartDETECT

This exclusive feature automatically determines how many power sources are linked together. After the check is completed the 300XAC Series will automatically change the programming output function based on the number of linked sources.

Master/Slave Relationship

The master/slave relationship between linked 300XAC instruments synchronizes the firmware of each power source so the output and phase angle separation is regulated. It also gives the operator the capability to program parameters for all linked sources from the front panel of the master instrument.

SmartCONFIG

Feature This exclusive feature allows the operator to easily change the output of the linked sources to Parallel or Polyphase mode with the push of a button.

Exclusive Linking Card (option 08)

With the Linking Card option installed, up to three 300XAC instruments can be interconnected for Parallel or Polyphase output.

Quickly store and recall test parameters with 50 built-in memory locations with 9 test steps
Easy-to-use push button interface
SmartCONFIG main/secondary instruments for easy 1Ø/3Ø setup
Simulate the effects of voltage surges and drops for transient testing
Modular Design: Connect up to 3 instruments together for 1Ø or 3Ø applications requiring up to 18 kVA of AC

Same for every 300XAC model

Measurements for 310XAC and 320XAC

Weight Model: 310XAC = 47.16 lbs (21KG), Model: 320XAC = 49 lbs (22KG)

INPUT			340XAC
Phase			1Ø
Voltage			200 - 240 VAC ±10%
Frequency			47 - 63 Hz
OUTPUT
Voltage			5 - 300 V
Max Power			4 kVA
Max Current 1Ø	0 - 150 V		36.8 A @ ≤110 V
	0 - 300 V		18.4 A @ ≤220 V
Phase			1Ø (Parallel/Poly-Phase Linking for 1Ø3W or 3Ø4W)
Frequency			40.0 - 1000 Hz
THD			<1% (Resistive Load)
Crest Factor			Inrush CF ≥3 at 110 V, Continuous Current CF ≥3 at 110 V
Line Regulation			± 0.1 V
Load Regulation			± 0.5 V
DC OUTPUT VOLTAGE
Voltage			5 - 420 V
Max Power			4000 W
Max Current 1Ø	0 - 210 V		19.2 A
	0 - 420 V		9.6 A
Ripple & Noise (Peak to Peak)			<4.0 V
MEASUREMENT
Voltage	Range		0.0 - 400.0 V
	Accuracy		± (1% of reading + 5 counts) >5 V
Frequency	Range		0.0 - 1000 Hz
	Accuracy		0.0 - 500 Hz ± 0.1 Hz, 501 - 1000 Hz ± 0.2 Hz
Current (RMS)	Range		0.005 A - 52.00 A
	Accuracy		± (1% of reading + 5 counts) @ 40 - 100 Hz, ± (1% of reading + 5 counts) @ 101 - 500 Hz >0.1 A, ± (1% of reading + 5 counts) @ 501 - 1000 Hz >0.2 A
Current Peak	Range		0.0 A - 152 A
	Accuracy		± (1% of reading + 5 counts)
Power	Range		0.0 W - 5200 W
	Accuracy	L	± (2% of reading + 5 counts) at PF ≥0.2
		H	± (2% of reading + 5 counts) at PF ≥0.2
Power Apparent (VA)	Range		0.0 VA - 5200 VA
	Calculated Formula		V×A, Calculated value
Power Reactive (Q)	Range		0.0 VAR - 5200 VAR
	Calculated Formula		√(VA)²-(W)², Calculated value
Power Factor	Range		0.000 - 1.000
	Calculated Formula		W/VA, Calculated and displayed to three significant digits
Crest Factor	Range		0.0 - 10.0
	Accuracy		A peak / Arms, Calculated and displayed to two significant digits
OPTIONS
Grounded Neutral	Option 2		All Models
GPIB Interface	Option 3		All Models
7 Remote Memory	Option 4		All Models
Ethernet Interface	Option 6		All Models
Linking Card	Option 8		All Models
GENERAL
Operation Environment			0 - 40ºC / 20 - 80% RH

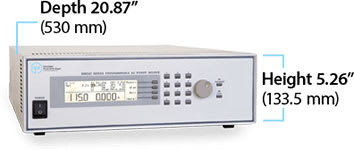

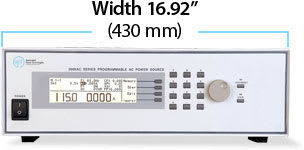

Dimensions (W x H x D			16.92 x 10.51 x 19.69 in
			430 x 267 x 500 mm
Net Weight			82 lbs (37 kg)
Linking Parallel Output 1Ø2W
Linked Units			2 - 3 Units, 1Ø2W (L1 - N)
Voltage		Phase	5 - 300 V
Power Max	# Units	2	7.2 kVA
		3	10.8 K 10.8 kVA AA
Max Current	0 - 150 V	L(2)	58.88 A @ 20 V -110 V
		L(3)	88.32 A @ 20 V - 110 V
Line (RMS)	0 - 300 V	H(2)	29.44 A @ 20 V - 220 V
		H(3)	44.16 A @ 20 V - 220 V
Linking Polyphase Output 1Ø3W
Linked Units			2 Units @ 180º, 1Ø3W (L1-L2 - N)
Voltage	Phase		10 - 600 V
	Line		5 - 300 V
Power	Max		8 kVA
Max Current Phase	0 - 300 V	L(1)	36.8 A @ ≤110 V
	0 - 600 V	H(1)	18.4 A @ ≤220 V
Max Current Line	0 - 300 V	L(2)	36.8 A @ ≤220 V
	0 - 600 V	H(2)	18.4 A @ ≤440 V
Linking Polyphase Output 3Ø4W
Linked Units			3 Units @ 120º, 3Ø4W (L1-L2-L3 - N)
Voltage	Phase		5 - 300 V
	Line		5 - 520 V
Power	Max		12 kVA
Max Current Phase	0 - 150 V	L(1)	36.8 A @ ≤110 V
	0 - 300 V	H(1)	18.4 A @ ≤220 V
Max Current Line	0 - 150 V	L(3)	36.8 A @ ≤190.5 V
	0 - 300 V	H(3)	18.4 A @ ≤381 V
Max Current Phase Delta	0 - 260 V	L(3)	21.24 A @ ≤190.5 V
	0 - 520 V	H(3)	10.62 A @ ≤381 V
Linking Parallel DC Output 1Ø2W
Linked Units			2 - 3 Units, 1Ø2W (L1 - N )
Voltage Power	Line		5 - 420 V
Power Max	# Units	2	7.2 kVA
		3	10.8 kVA
Max Current	0 - 210 V	L(2)	30.72 A @ 50 V - 210 V
		L(3)	46.08 A @ 50 V - 210 V
Line	0 - 420 V	H(2)	15.36 A @ 50 V - 420 V
		H(3)	23.04 A @ 50 V - 420 V
Measurement (Total) Linking Parallel 1Ø2W
Voltage	Range		0.0 - 400.0 V
	Accuracy		± (1% of reading + 5 counts) >5 V
Frequency	Range		0.0 - 1000.0 Hz
	Accuracy	L	± 0.1 Hz @ 0.0 - 500 Hz
		H	± 0.2 Hz @ 501 - 1000 Hz
Current (RMS)	Range	2	0.00 A - 104.0 A
		3	0.00 A - 156.0 A
	Accuracy	L	± (1.5% of reading +15 counts) x Link Units @ 40.0 - 70.0 Hz and Current (RMS) >2.00 A, ± (1.5% of reading +15 counts) x Link Units @ 70.1 - 1000 Hz, and Current (RMS) >10.00 A
		H	± (1.5% of reading +15 counts) x Link Units @ 40.0 - 70.0 Hz and Current (RMS) >2.00 A, ± (1.5% of reading +15 counts) x Link Units @ 70.1 - 1000 Hz, and Current (RMS) >10.00 A
Power (W)	Range	2	0 W - 10400 W
		3	0 W - 15600 W
	Accuracy		± (2% of reading + 10 counts) x (# of Linked Units) at PF ≥0.2, 40 - 500 Hz, and Current >5.0 A ± (2% of reading + 10 counts) x (# of Linked Units) at PF ≥0.3, 501 - 1000 Hz, and Current >5.0 A
Power Apparent (VA)	Range	2	0 W - 10400 VA
		3	0 W - 15600 VA
	Accuracy		V x A, Calculated Value
Power Reactive (Q)	Range	2	0 W - 10400 VA
		3	0 W - 56000 VA
	Accuracy		√(VA)² - (W)², Calculated Value
Power Factor	Range		0 - 1.000
	Accuracy		W / VA, Calculated and displayed to three significant digits
Measurement (Total) Linking Polyphase 1Ø3W
Voltage	Range	2	L1 Voltage + L2 Voltage
	Accuracy		Summation of linked sources, Calculated and displayed to one significant digit
Frequency	Range		0.0 - 1000.0 Hz
	Accuracy	L	± 0.1 Hz @ 0.0 - 500 Hz
		H	± 0.2 Hz @ 501 - 1000 Hz
Current (RMS)	Range	2	(L1 Current + L2 Current)/2
	Accuracy		± (1% of reading + 5 counts) at 40 - 70 Hz ± (1% of reading + 5 counts) at 70.1 - 500 Hz, and output current (RMS) >0.200 A ± (1% of reading + 5 counts) at 501 - 1000 Hz, and output current (RMS) >0.300 A
Power (W)	Range	2	L1 Power + L2 Power
	Accuracy	2	L1 Power + L2 Power, Calculated Value
Power Apparent A)	Range	2	L1 VA + L2 VA
	Accuracy	2	L1 VA + L2 VA, Calculated Value
Power Reactive (Q)	Range	2	L1 VAR + L2 VAR
	Accuracy	2	L1 VAR + L2 VAR, Calculated Value
Power Factor	Range		0 - 1.000
	Accuracy		(L1 P + L2 P) / (L1 VA + L2 VA), Calculated and displayed to three significant digits
Measurement (Total) Linking Polyphase 3Ø4W
Voltage	Range		(A+B+C)/3
	Accuracy		(A+B+C)/3, Calculated and displayed to one significant digit
Frequency	Range		0.0 - 1000.0 Hz
	Accuracy	L	± 0.1 Hz @ 0.0 - 500 Hz
		H	± 0.2 Hz @ 501 - 1000 Hz
Current (RMS)	Range		(A+B+C)/3
	Accuracy		± (1% of reading + 5 counts) at 40 - 70 Hz ± (1% of reading + 5 counts) at 70.1 - 500 Hz, and output current (RMS) >0.200 A ± (1% of reading + 5 counts) at 501 - 1000 Hz, and output current (RMS) >0.300 A
Power (W)	Range		A Power + B Power + C Power
	Accuracy		Calculated Value
Power Apparent (VA)	Range		A VA + B VA + C VA
	Accuracy		Calculated Value
Power Reactive (Q)	Range		A VAR + B VAR + C VAR
	Accuracy		Calculated Value
Power Factor	Range		0 - 1.000
	Accuracy		Sum P / Sum VA, Calculated and displayed to three significant digits
Measurement (Total) Linking Parallel DC
Voltage	Range		0.0 - 420.0 V
	Accuracy		± (1% of reading + 2 counts) >5 V
Current (RMS)	Range	2	0.05 A - 104.00 A
		3	0.05 A - 156.00 A
	Accuracy		± (1% of reading + 5 counts) x # of Linked Units, Current >2.00 A
Power (W)	Range	2	0 W - 10400 W
		3	0 W - 15600 W
	Accuracy		± (2% of reading + 5 counts) x # of Linked Units

Power Supplies/AC Power Supplies Template
Programmable	Yes
Max Voltage Output 1	300 V
Max Current Output 1	36.8 A
Max Current Output 2	18.4 A
Test Equipment General Attributes
Product Weight	82 LBS
Product Height	16.92 IN
Product Length	10.51 IN
Product Width	19.69 IN

0

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Compare

Real people, here to help you.

Get Connected

Join the community and find out what we're up to, experience live product releases, webinars and more!

How Can We Help You?

Questions?

Log in to Your Account

Not a member yet? It's FREE!

Top Categories

EEC 00340XAC - 1 Phase, 4 kVA AC Power Source

Recommended for you

Accessories

for the EEC 00340XAC

EEC 39140 Linking Cable 2.6 FT 310XAC, 320XAC

EEC 39203 Terminal Block Shorting Bar$460XAC

EEC 39894 EXTERNAL TVS KIT Input Voltage Protection See Instruction Sheet: 39898

EEC 38305 GPIB Interface Card#620L,76xx, 7705, 7710, 7715, 7720, 82xx$3xxXAC, 4xxXAC,...

EEC 38819 Ethernet Interface Card#620L, 76xx, 7705, 7710, 7715, 7720, 82xx,...

EEC 39136 Linking Card 310XAC, 320XAC

EEC 39353 Schuko Plug Adaptor, All Power Supplies, All Power Supplies

APT 00340XAC - 1 Phase, 4 kVA AC Power Source

The Modular AC Source Advantage

Advantages

Power Supplies/AC Power Supplies Template

Test Equipment General Attributes

0

Featured Review

We'd love to hear from you

Real people, here to help you.

Get Connected

My Account

Promotions & Offers

Resources

Company
