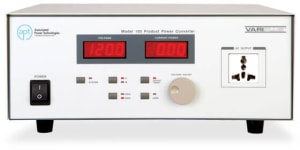

APT 00105 - VariPLUS Power Converter and Variable Transformer, 1 Phase, 500 VA

The VariPLUS is a power converter specifically designed for testing in the production line or laboratory environment. The VariPLUS outperforms the traditional variable transformer on multiple levels that include metering, automatic voltage, and frequency adjustments to the load. Easily produce variable output voltages between 0-300 VAC with selectable frequency at 50/60 Hz to satisfy your product testing requirements. Simple adjustments are made through dedicated keys and a rotary knob. The universal receptacle provides multi-national connections while providing operator protection.

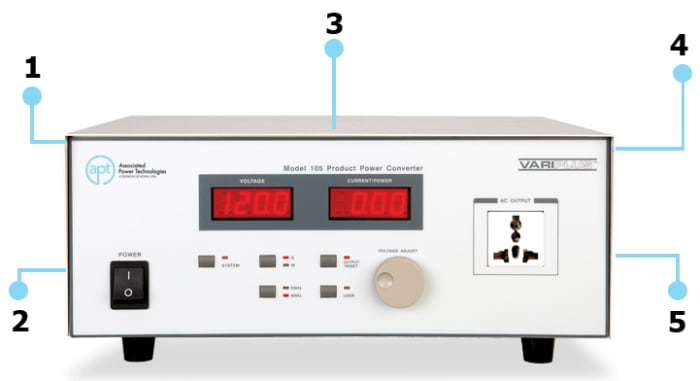

1. Power your instrument faster without operator intervention with SmartVOLT
2. Isolated output ensures power to the DUT is free from distortion, voltage spikes and other transients
3. Prevented damage to the DUT and reduce operator error with front panel lockout

4. Push-Button interface allows the operator to easily switch between output frequencies, view voltage, current, power information and set voltage
5. Voltage and current limits prevent dangerous over-voltage or over-current conditions that can harm the DUT

Weight Model: 105 = 28lbs (13KG)
