0 reviews | Catalog: E9000-OCN-0-12 | Model: Sauermann E9000-OCN-0-12
O2 (0-25%), CO (0-8000ppm), and NO/NOx** (0-5000ppm) Gas Sensors, CO Dilution Auto-Range up to 10%, Stack Gas and Ambient Air Temperature Measurements, Draft and Differential Pressure Measurements, Efficiency, Loss, Excess Air, and CO2 Calculations
List Price: $10,270.00
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(0)
In Stock!

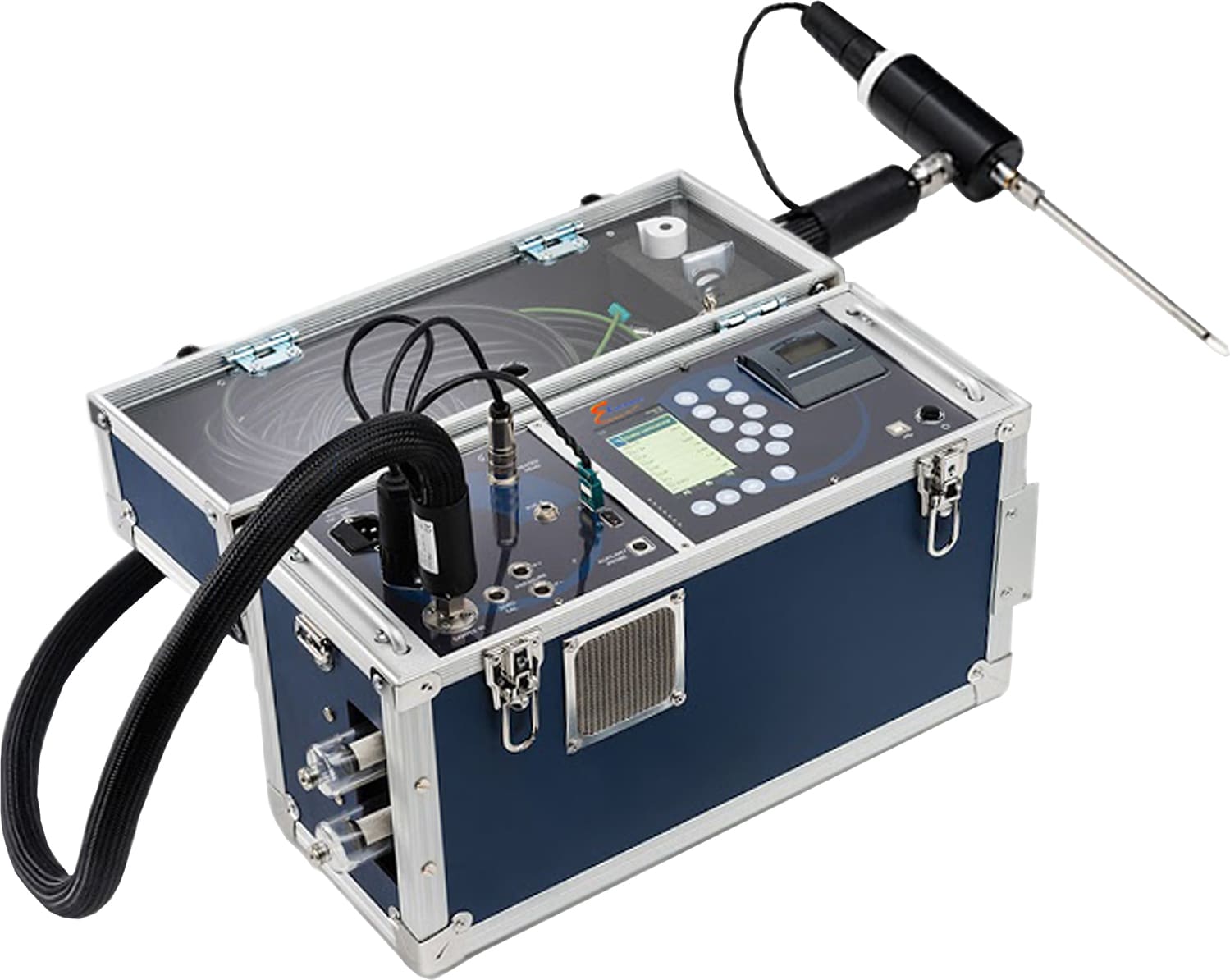

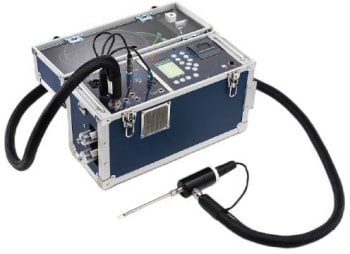

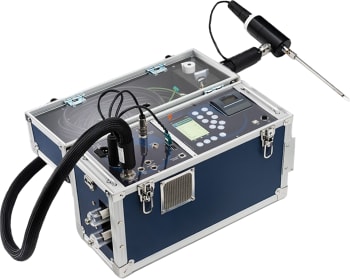

The E Instruments E9000-OCN-0-12 is a standard E9000 configuration with O2, CO, NO Gas sensors (upgradeable to 9 gas sensors total). It is an advanced transportable emissions analyzer that is a complete, portable tool for EPA compliance - level emissions monitoring of boilers, engines and other combustion equipment.
The large multi-color graphic display screen includes a zoom function. The capacitive touch sensing keypad guides the operator through the user-friendly menus on the display screen. The measured & calculated parameters on the display screen can be fully customized as the operator requires.
The internal printer is included with each E9000 and prints on a special non-fading polymer paper so it can still be easily read even when exposed to water, heat, or light. As with the display screen, the parameters on the print-out can be customized by each operator.
The E9000 has an optional heated probe head and a flexible heated sample line. This feature maintains the sample gas at a temperature higher than the dew point to prevent condensation from occurring before the stack gas reaches the internal thermoelectric chiller. The water vapor condenses very rapidly at the chiller so the gases do not have ample opportunity time to dissolve into the condensate. This sample conditioning system maintains the integrity of the gas composition especially for the most water-soluble gases such as NO₂ and SO₂.
Each E9000 includes an internal high efficiency Peltier thermoelectric chiller with a built-in condensate drain pump that automatically pumps the accumulated water out through the bottom of the unit for greater convenience. Along with the optional heated sample hose & probe head, this sample conditioning system allows for longer test periods while maximizing the integrity and composition of the sampled stack gas so the gases measured by the analyzer are representative of the actual stack/flue gases.
Table B - NDIR (non-dispersive infrared) Sensors IR - CO2 Sensor (0 - 50 %), CxHy Sensor (0 - 5 %), High CO Sensor (0 - 15 %) 0 - No NDIR sensors

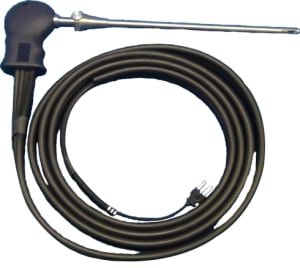

Table C - Sampling Probes and Hoses 12 - 12" (300mm) Probe, 1470°F (800°C) max, with 10’ (3m) Dual Hose 30 - 30" (750mm) Probe, 1470°F (800°C) max, with 10’ (3m) Dual Hose 40 - 40" (1m) Probe, 2190°F (1200°C) max, with 10’ (3m) Hose for High Temperature Combustion Applications 60 - 60" (1.5m) Probe, 2190°F (1200°C) max, with 10’ (3m) Hose for High Temperature Combustion Applications 12H - 12" (300mm) Probe, 1470°F (800°C) max, with 10' (3m) Heated Sample Hose & Probe Head 40H - 40" (1m) Probe, 2190°F (1200°C) max, with 10’ (3m) Heated Sample Hose & Probe Head SINT1 - Sintered Filter with Half Shield for Probe Tip
Display: Full color graphic display screen
Bluetooth: Yes
