Sauermann 900-3P Combustion Emissions NOX Analyzer w/ Printer

Name: Sauermann 900-3P Combustion Emissions NOX Analyzer w/ Printer
Brand: Sauermann
SKU: E INSTRUMENTSBTU900-3P
Price: 1763.82 USD
Availability: InStock

0 reviews | Catalog: BTU900-3P | Model: Sauermann BTU900-3P

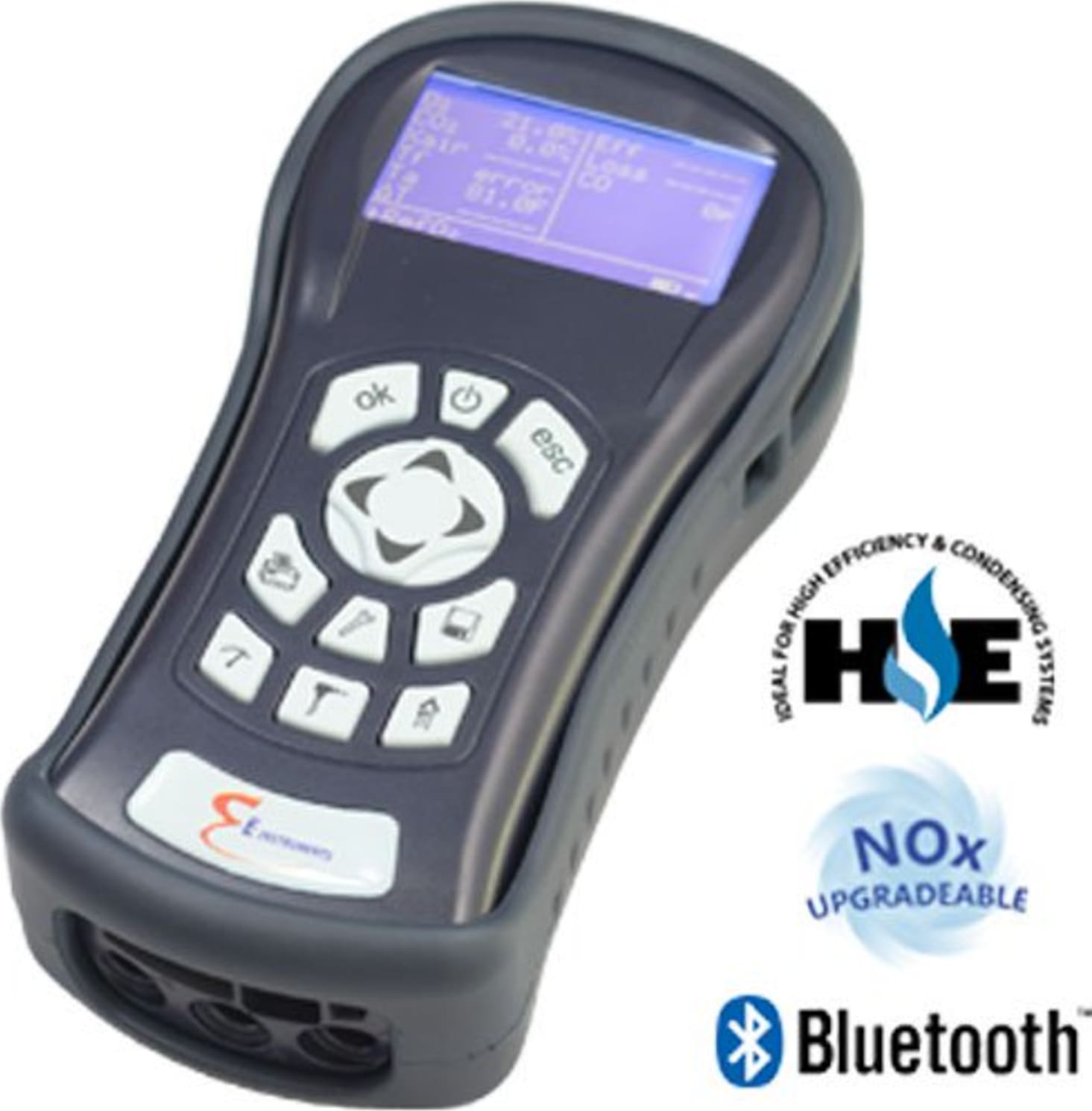

E INSTRUMENTS BTU900 Combustion Analyzer

Compare

Combustion Emissions NOX Analyzer with O2, CO, CO2, NO/NOx and adds WIRELESS BLUETOOTH PRINTER

High Range CO Sensor (0–8000 ppm) with Integrated NO_x Filter
High Range CO Sensor for Over–Range Protection
Flue Stack & Ambient Temperature
Outdoor Air Temp Measurement (High Efficiency & Condensing Boilers)
Flue Stack & Ambient Temperature
“Plug–n–Play” Pre–Calibrated Field Replaceable Sensors
Unbreakable Metal Connections
600 Internal Test Memory
PC Software Package with USB & Bluetooth Communications Included
Wireless Bluetooth Included
10 Fuels & Oils (Including Bio–Fuel)
Protective Magnetic Rubber Boot
Rechargeable Lithium Ion Battery Pack with AC Charger
ONE Button Operation with One–page Quick Reference Guide
Large, Bright BLUE LCD Backlit Display
Zoom Feature
IR Printer Port (Analyzer can print to your existing HP type IR printer)
Quick & Easy Intuitive Menu with One–Page Quick reference Guide
External Water Trap for Easy Condensate Removal
12″ Probe Included with 10′ Dual Hose for Gas & Draft Measurements
Lightweight Vinyl Carrying Case
Economical, Ergonomic, Compact, and Rugged
Perfect for ANY Natural Gas, Propane, Oil, Wood, Coal, Bio–Fuel, and many more Applications

View Product Details

List Price: $1,999.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Gas Detection Accessories

for the Sauermann BTU900-3P

Sauermann SCU SCU - Sample Conditioning Unit for High Moisture and/or Low NOx/SO2

Catalog: 26811

(0)

In Stock!

Add to Cart

E INSTRUMENTS BTU900 Economical Emissions & Combustion Analyzer

Economical Combustion & Emissions Analyzer

Highlights

AUTOMATIC Direct Outdoor Air Temperature Measurement for ALL HIGH-EFFICIENCY & CONDENSING Boilers, Water Heaters, Furnaces, etc.
Upgradeable to NO/NO_x
Now with Wireless Bluetooth™ Printer (no more lining up IR printers)

Five–Tools–In–One

Combustion Analyzer for O₂, CO, CO₂ (Calculates Combustion Efficiency, Excess Air, Losses, CO Air Free)
Ambient Room Air Carbon Monoxide (CO) Leak Detector
Draft Meter (Negative & Positive Draft)
Built–In Differential Digital Pressure Manometer
Built–in Differential Thermometer

Analyzer (O2, CO, CO2, NO/NOx)
12 inch probe (1470 deg F, 800 deg C)
5ft Dual Hose (Gas+Draft+temp) Simultaneously
Magnetic, Protective Rubber Boot
Soft Vinyl Carrying Case
Water Trap & Filters
AC Power Supply
Li-Ion Rechargeable batteries
PC Software and USB cable (SWKIT)
BTU900-3P P version includes wireless Bluetooth printer

Parameter	Sensor	Range	Resolution	Accuracy
O₂	Electrochemical	0 - 25%	0.1%	±0.2% vol
CO H₂ Compensated w/ Built-In NOx Filter	Electrochemical	0 - 8000 ppm	1 ppm	±8 ppm <400 ppm ±5% rdg up to 2000 ppm ±10 % rdg for >2000 ppm
CO₂	Calculated	0 - 99.9%	0.1%
NO	Electrochemical	0 - 4000 ppm	1 ppm	±5 ppm <100 ppm ±5% rdg up to 1000 ppm ±10% rdg for >4000 ppm
NOx	Calculated	0 - 5000 ppm	1 ppm
Tair	Pt100	-10 to 212°F	0.1°F	±1°F
Tgas	Tc K	-10 to 1830°F	0.1°F	±2°F
Differential Temp	Calculated	-10 to 1830°F	0.1°F
Pressure/Draft	Semiconductor	±0 - 80 inH₂0	0.001 inH₂0	±1% rdg.
Excess Air	Calculated	0 - 850%	1%
Efficiency	Calculated	0 - 100%	0.1%
