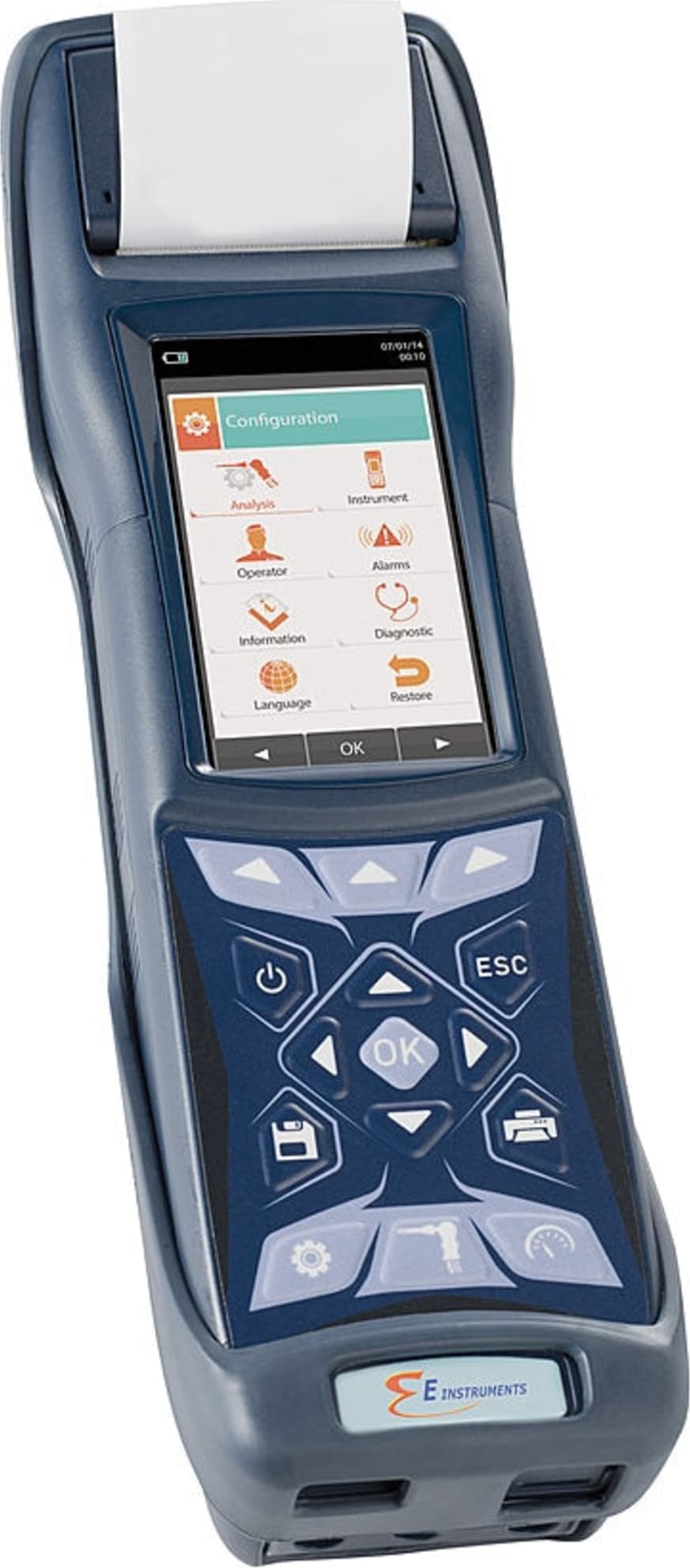

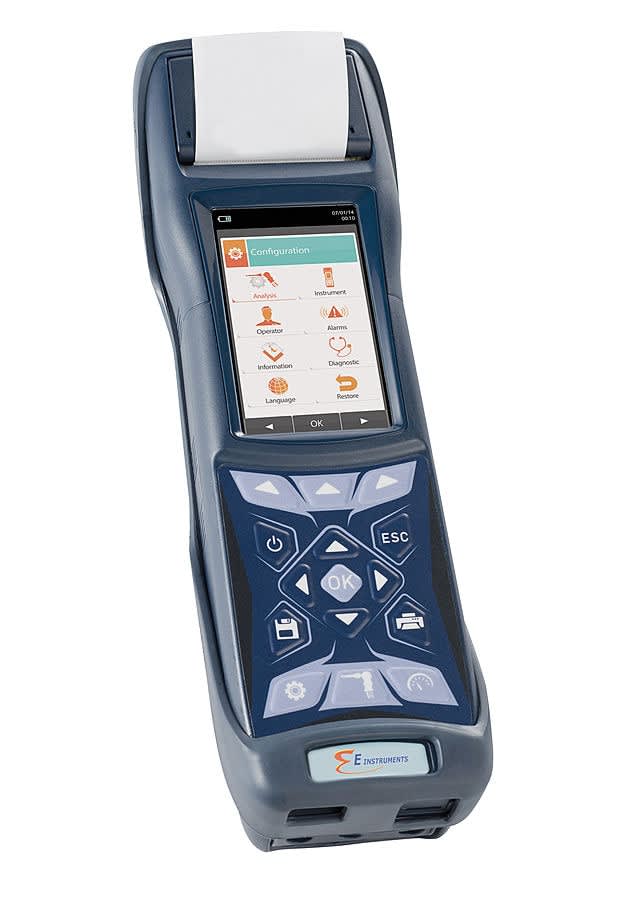

Sauermann BTU1500-DP - Combustion Gas Analyzer, DP Version adds Differential Pressure Manometer Kit (2 Hoses)

Name: Sauermann BTU1500-DP - Combustion Gas Analyzer, DP Version adds Differential Pressure Manometer Kit (2 Hoses)
Brand: Sauermann
SKU: E InstrumentsBTU1500-DP
Price: 1372.50 USD
Availability: InStock

0 reviews | Catalog: BTU1500-DP | Model: Sauermann BTU1500-DP

Compare

ALL-IN-ONE MODEL - BUILT-IN PRINTER - Combustion Analyzer with O2, CO, CO2, Efficiency, Excess Air, Draft, Pressure

APP for iOS & Android Smart Phones & Tablets
AUTOMATIC Direct Outdoor Air Temperature Measurement for ALL HIGH-EFFICIENCY & CONDENSING Boilers, Water Heaters, Furnaces, etc.
Built–In Printer (NON–Fading)
Full COLOR GRAPHIC Display Screen with ZOOM Function & Backlight
Automatic Data Saving
2000 Internal Test Memory Spots
High Range CO Sensor (0–8000 ppm) with Integrated NOx Filter
PC Software Package with USB & Bluetooth Communications Included
High Range CO Sensor for Over–Range Protection
Quick & Easy Intuitive Menu with One–Page Quick reference Guide
Flue & Ambient Temperature
Outdoor Air Temp Measurement (High Efficiency & Condensing Boilers)
Unbreakable Metal Connections
“Plug–n–Play” Pre–Calibrated Field Replaceable Sensors
External Water Trap for Easy Condensate Removal
Rechargeable Lithium Ion Battery Pack with AC Charger
Unbreakable Metal Hose Connectors
32 Programmed Fuels & Oils (Including Bio–Fuel)
Zoom Feature
User Customized Display Screen & Print–Out Content
ONE Button Operation
Customizable Printouts
12″ Probe Included with 10′ Dual Hose for Gas & Draft Measurements
Lightweight Vinyl Carrying Case (Hard ABS Case available)
Protective Magnetic Rubber Boot
Economical, Ergonomic, Compact, and Rugged
Perfect for ANY Natural Gas, Propane, Oil, Wood, Coal, Bio–Fuel, and many more Applications

View Product Details

List Price: $1,525.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Cases
Gas Detection Accessories

for the Sauermann BTU1500-DP

Sauermann AACCR01 ABS Hard Carrying Case

Catalog: 27540

(0)

In Stock!

Add to Cart

Sauermann SCU SCU - Sample Conditioning Unit for High Moisture and/or Low NOx/SO2

Catalog: 26811

(0)

In Stock!

Add to Cart

Sauermann BTU1500-DP - Combustion Gas Analyzer, DP Version adds Differential Pressure Manometer Kit (2 Hoses)

All In One Flue Gas Combustion Analyzer for HVAC
2000 Internal Test Memory Spots
High Range CO Sensor (0–8000 ppm) with Integrated NOx Filter
Rechargeable Lithium Ion Battery Pack with AC Charger

Six-Tools-In-One

Combustion Analyzer for O2, CO, CO2 (Calculates Combustion Efficiency, Excess Air, Losses, CO Air Free)
Ambient Room Air Carbon Monoxide (CO) Leak Detector
Draft Meter (Negative & Positive Draft)
Cracked Heat Exchanger Test Included
Built-in Differential Digital Pressure Manometer
Built-in Differential Thermometer

Parameter	Sensor	Range	Resolution	Accuracy
O₂	Electrochemical	0 - 25 %	0.1 %	±0.2 % vol
CO H₂ Compensated w/ Built-In NOx Filter	Electrochemical	0 - 8000 ppm	1 ppm	±8 ppm <400 ppm ±5 % rdg up to 2000 ppm ±10 % rdg for >2000 ppm
CO₂	Calculated	0 - 99.9%	0.1 %
Tair	Pt100	-10 to 212 ˚F	0.1 ˚F	±1 ˚F
Tgas	Tc K	-10 to 1830 ˚F	0.1 ˚F	±2 ˚F
Differential Temp.	Calculated	-10 to 1830 ˚F	0.1 ˚F
Pressure/Draft	Semiconductor	±0 - 80 inH₂O	0.001 inH₂O	±1 % rdg.
Excess Air	Calculated	0 - 850%	1 %
Efficiency	Calculated	0 - 100%	0.1 %
Warranty	2 years: Analyzer + Sensors

Tech Specs

Combustion Analyzer Template
Includes NO sensor	No
Includes NO2 sensor	No
Includes printer	Yes
Includes SO2 sensor	No
Digital device	Yes
Test Equipment General Attributes
Unique Features	O2, CO, CO2, Combustion Efficiency, Excess Air BUILT-IN Printer Full COLOR Graphic Display Oil Smoke Pump Smoke Filter Papers and Comparison Chart
Warranty	2 YEARS
Warranty Details	Analyzer + Sensors
Safety Approval	CE
Country of Origin	United States
