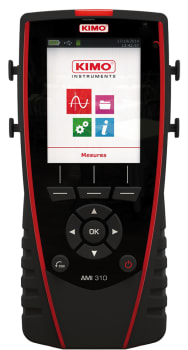

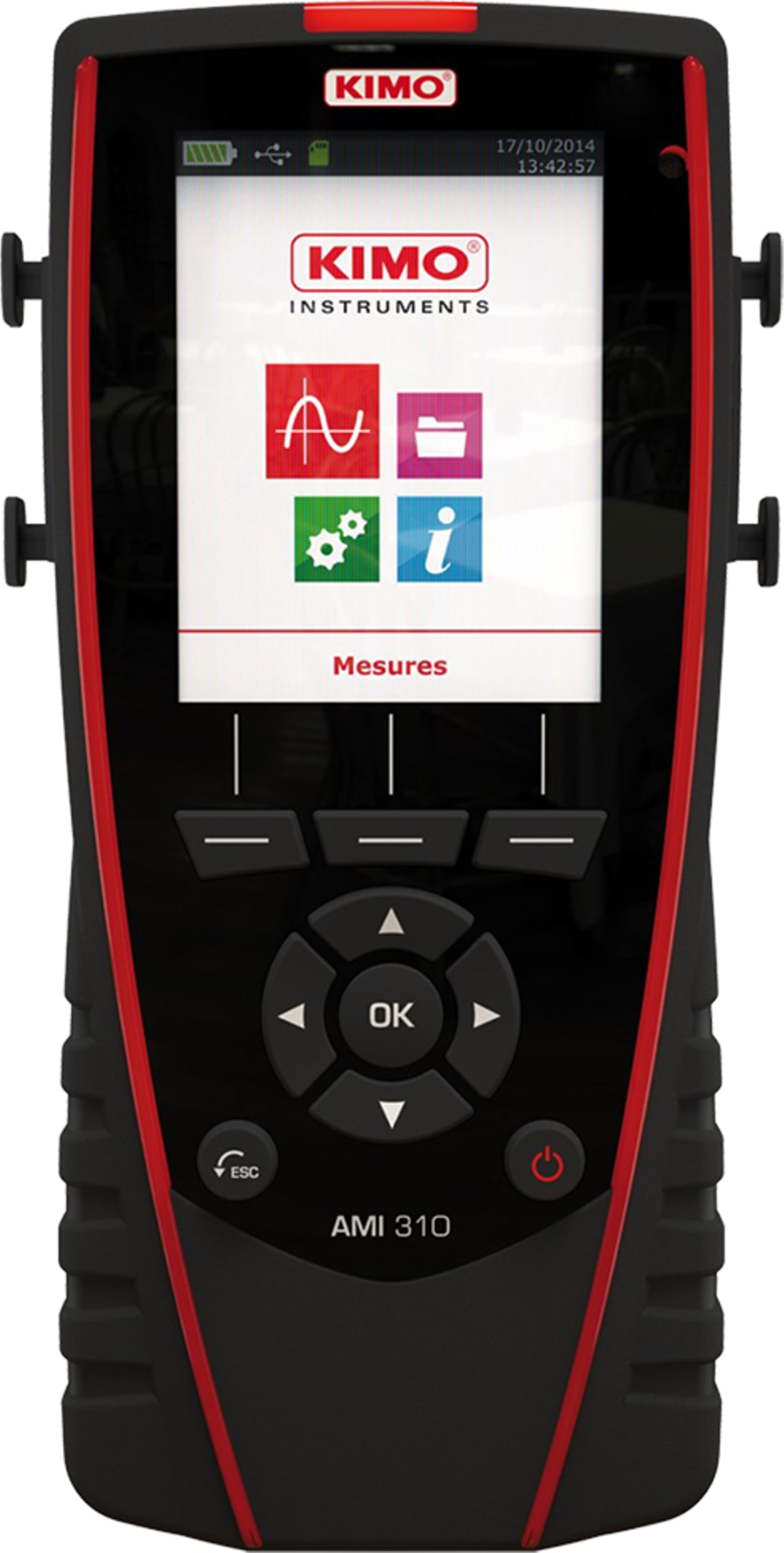

| Model: AMI 310 BASE Specifications |
| Measure details |
| Units |
°F, °C, % RH, Pa, rpm, mł/s, mph, kPa, ppm, g/mł, g/kg, m/s, bar, mbar, l/s, hPa, mł/h, tr/min, km/h, fpm, inWg, mmH2O, mmHg, daPa, cfm, psi |
| Technical Details |
| Parameters |
Air quality
Air velocity
Airflow
Differential pressure
Humidity
Tachometry
Temperature |
| Displays |
4-line display |
| IP Protection |
IP 54 |
| Battery life |
57 hours |
| Standards |
2011/65/EU RoHS II
2012/19/EU WEEE
2014/30/EU EMC
2014/35/EU Low Voltage |
| Power supply |
Lithium-Ion battery |
| Probe type |
Wire & Wireless probe |
| Protective cover |
Yes |
| Connections |
2 mini-DIN connections SMART-2014 probes and
1 micro-USB port for charging and PC connection |
| Memory capacity |
Up to 1000 dataset of 20 000 points in the internal memory+ 4 GB micro-SD card |
| Conditions of use (°C/%RH/m) |
From 0 to +50 °C. In non-condensation condition.From 0 to 2000m. |
| Auto shut-off |
Adjustable from 15 to 120 minutes or Off |
| Operating environment |
Neutral gas |
| Languages |
French, English, Dutch, German, Italian, Portuguese, Swedish, Norwegian, Finn, Danish, Chinese, Japanese |
| Instrument Dimensions |
| Length |
104 mm |
| Width |
63 mm |
| Height |
204 mm |
| Weight |
485 g |
| Operating Temperature |
| Min |
0.00şC |
| Max |
50.00 °C |
| Storage Temperature |
| Min |
-20.00 °C |
| Max |
80.00 °C |
