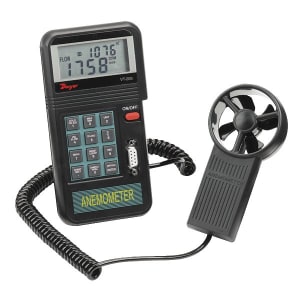

Dwyer VT-200 Vane Thermo-Anemometer

Name: Dwyer VT-200 Vane Thermo-Anemometer
Brand: Dwyer
SKU: DwyerVT-200
Price: 329.00 USD
Availability: InStock

0 reviews | Model: Dwyer VT-200

Compare

Dwyer Vane Thermo-Anemometer, VT-200, Measures Air Volume/Velocity/Temperature

VT-200 Vane Thermo-Anemometer
Measures Air Volume/Velocity/Temperature
Verify fume hood flow performance.
Check diffuser of register face velocities.

View Product Details

List Price: $329.00

In Stock:

View Payment Options

Recommended for you

Dwyer VT-200 Vane Thermo-Anemometer

Verify fume hood flow performance
Measures Air Volume/Velocity/Temperatur
Check diffuser of register face velocities

Model VT-200 Vane Thermo-Anemometer is ideal for balancing air conditioning and heating ducts or checking the operation of fans and blowers. Model VT-200 measures air volume in cubic feet per minute and cubic meters per minute. Air velocity measurements can be viewed in ft/min, m/s, knots, km/hr, and mph with ±3% accuracy. The multifunction LCD can simultaneously display air velocity and temperature in selectable units or airflow and air area. Built-in datalogger can store up to 1000 measurements or transfer the data to a PC via RS-232 communication. Additional features include data hold and record/recall minimum, maximum, and average readings.

Air Velocity Ranges	0.3 to 45 m/s; 0.7 to 100 mph; 0.6 to 88.0 knots; 1 to 140.0 km/hr; 60 to 8,800 ft/min.
Temperature Range	32 to 122°F (0 to 50°C).
Air Volume Ranges	CFM (ft 3 /min) or CMM (m 3 /min).
Accuracy	Air velocity: ±3% of reading ± 0.1, whichever is greater; Temperature ±1.5 °F (±0.8°C).
Resolution	0.1 knots, m/s, km/hr, and mph; 0.1/1 ft/min; 0.1°C.
Temperature Sensor	Type K thermocouple.
Temperature Limits	32 to 140°F (0 to 60°C).
Display	Dual line, 4-digit, 1.1˝ (27.9 mm) height.
Power Requirements	9 V alkaline battery, included, user replaceable.
Battery Life	50 hours (approx).
Output	RS232 serial interface via DB9 female connector.
Housing	ABS plastic, 1˝ (25 mm) diameter.
Weight	12.3 oz (350 g).
Agency Approval	CE.

Environmental Testers / Physical Property/Anemometer / Air Flow Template
Type (anemometer)	Vane
Measurement (anemometer)	Ft/Min, km/hr, knots, m/s, MPH
Air Velocity Max	8800 ft/min
Air Velocity Min	60 ft/min
Accuracy Air Velocity	±3% of reading ± 0.1, whichever is greater
Humidity	No
Temperature	Yes
Thermocouple Sensor for Temperature	Yes
Min/Max Display	Yes
Data Hold	Yes
Test Equipment General Attributes
Unique Features	• Ideal for balancing air conditioning and heating ducts or checking the operation of fans and blowers
Warranty	1 YEARS
Safety Approval	CE
Interfaces I/O	RS-232
Storage	Internal Memory
Product Weight	350 GRAMS (0.772 LBS)
Product Height	3.00 IN
Product Length	13.00 IN
Product Width	10.25 IN
Data Logging	Yes
HTS/Schedule B Number	9026.80.4000
ECCN Number	EAR99
Battery Type	9v
Power Supply Voltage	Battery Powered
Country of Origin	United States
Shipping Height	3.00 IN
Shipping Length	13.00 IN
Shipping Width	10.25 IN
